Seat Belt Height Adjuster: Service and Repair

SEAT BELT HEIGHT ADJUSTER REPLACEMENT - FRONT

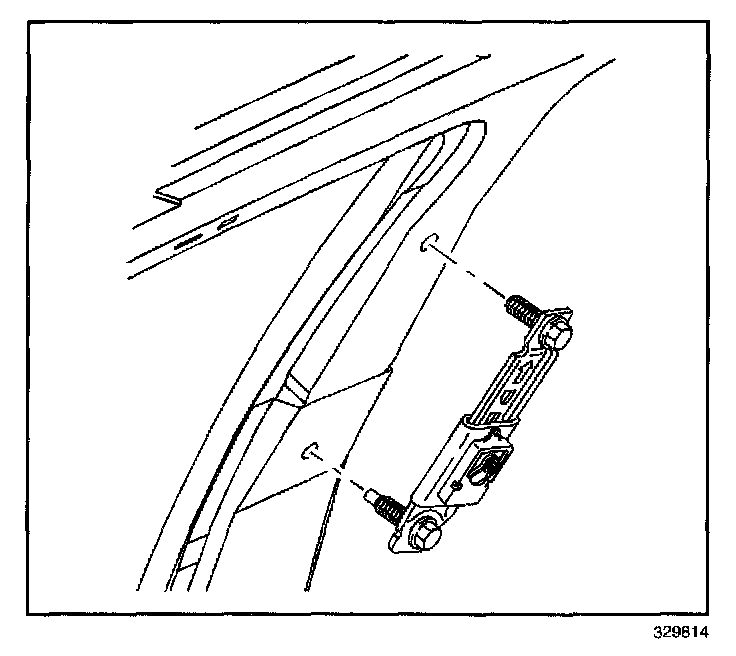

REMOVAL PROCEDURE




1. Remove the center pillar upper trim panel.
2. Remove the front seat shoulder belt guide track cover.
3. Remove the front seat shoulder belt guide track bolts.
4. Remove the front seat shoulder belt guide track.

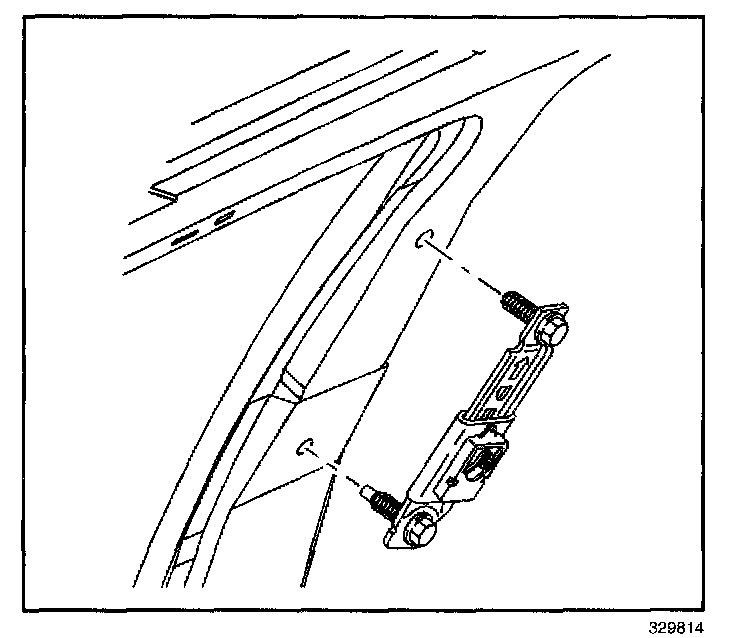

INSTALLATION PROCEDURE




1. Install the front seat shoulder belt guide track.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the front seat shoulder belt guide track bolts.

Tighten
Tighten the bolts to 42 N.m (31 lb ft).

3. Install the front seat shoulder belt guide track cover.
4. Install the center pillar upper trim panel.
