Rear

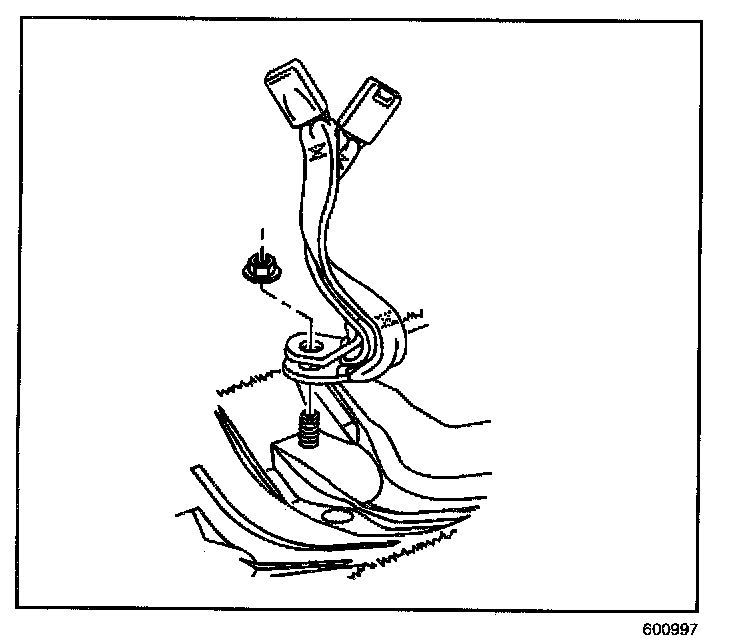

REMOVAL PROCEDURE




1. Remove the rear seat cushion.
2. Remove the rear seat belt buckle anchor nut.
3. Remove the rear seat belt buckle assembly from the vehicle.

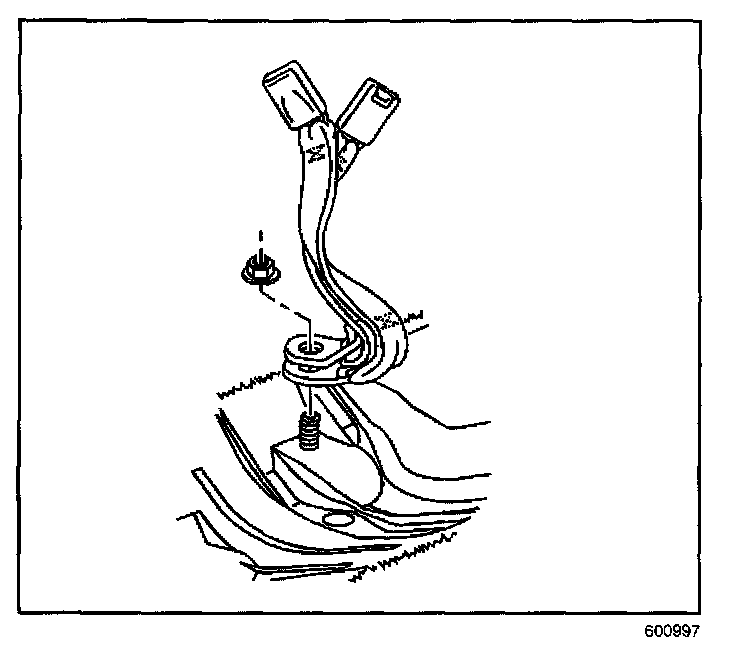

INSTALLATION PROCEDURE




1. Install the rear seat belt buckle assembly to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the rear seat belt buckle anchor nut.

Tighten
Tighten the nut to 42 N.m (31 lb ft).

3. Install the rear seat cushion.
