Front

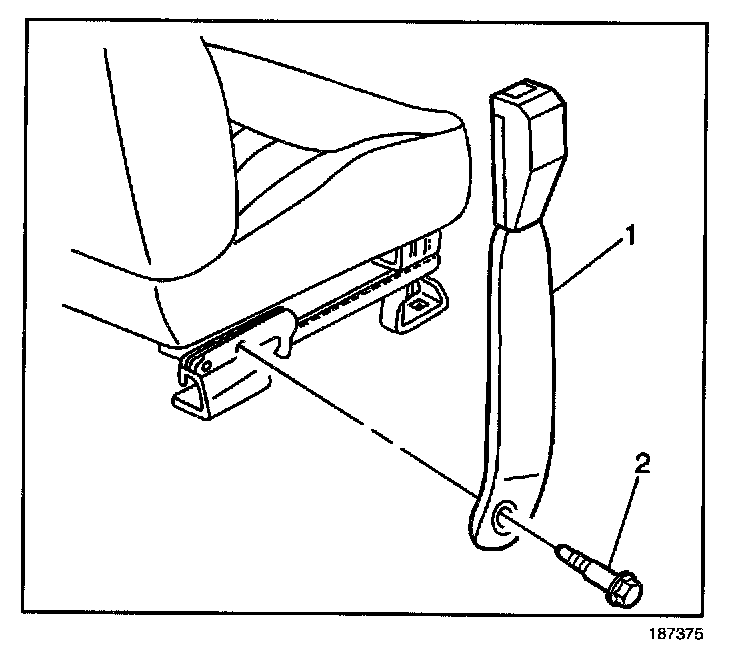

REMOVAL PROCEDURE




1. Remove the front bucket seat from the vehicle.
2. Remove the seat belt buckle bolt (2).
3. Remove the seat belt buckle (1).

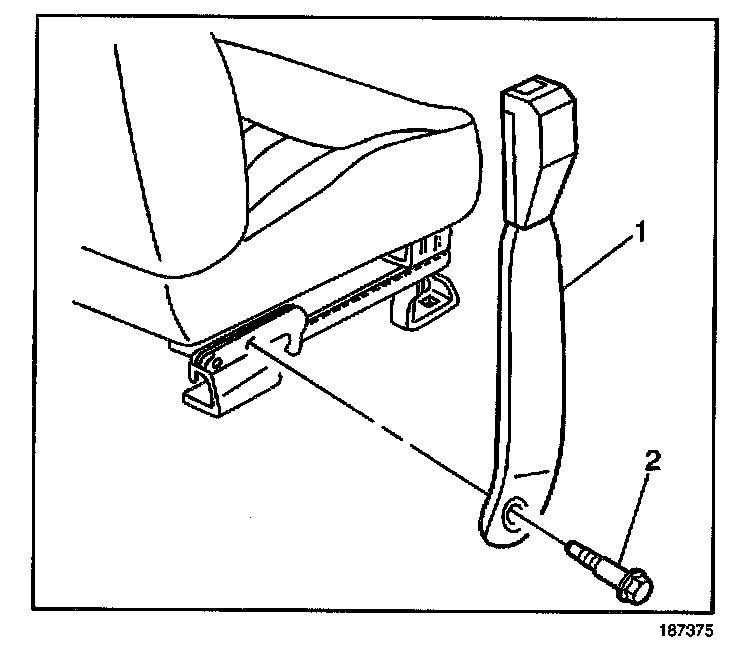

INSTALLATION PROCEDURE




1. Install the seat belt buckle (1).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the seat belt buckle bolt (2).

Tighten
Tighten the bolt to 42 N.m (31 lb ft).

3. Install the front bucket seat to the vehicle.
