Child Seat Tether Attachment: Service and Repair

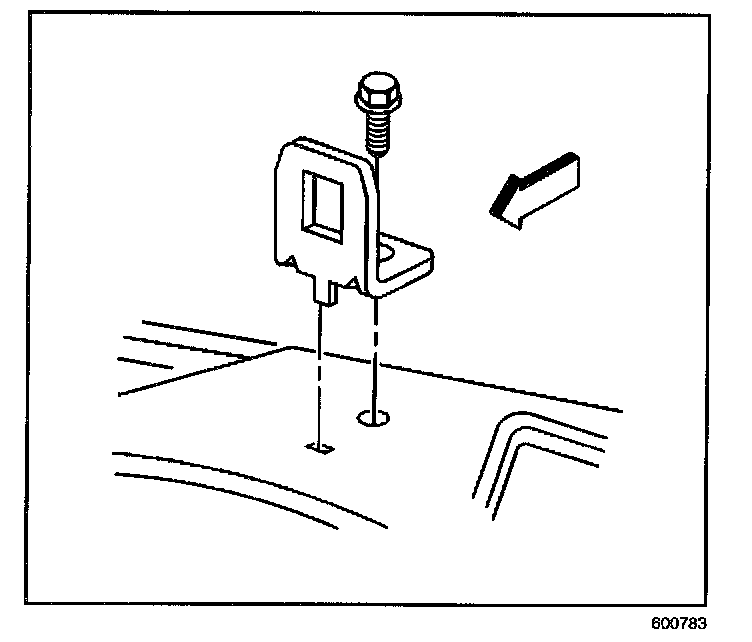

CHILD RESTRAINT TETHER ANCHOR REPLACEMENTREMOVAL PROCEDURE
IMPORTANT: Replace the anchor bracket if the anchor bracket is damaged.
1. With a flat-bladed tool pry in a upward motion to remove the tether bezel.
2. Remove the tether anchor bolt.
3. Remove the tether anchor bracket from the rear self.

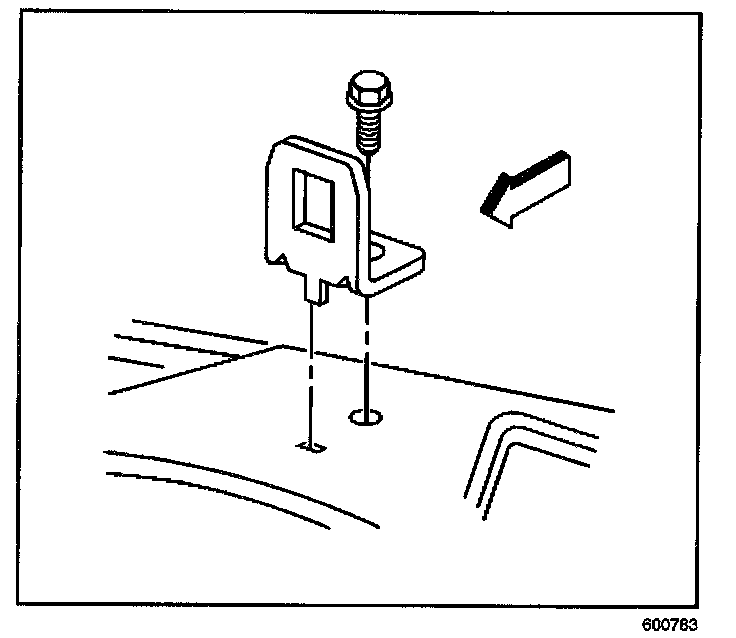

INSTALLATION PROCEDURE
1. Install the tether anchor bracket to the rear self.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the tether anchor bolt.
Tighten
Tighten the tether anchor bolt to 20 N.m (15 lb ft).
3. Install the tether bezel to the rear self.
