Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2002
>>
Alero L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Fuse Block - Underhood Connector - C1
Fuse Block - Underhood Connector - C1

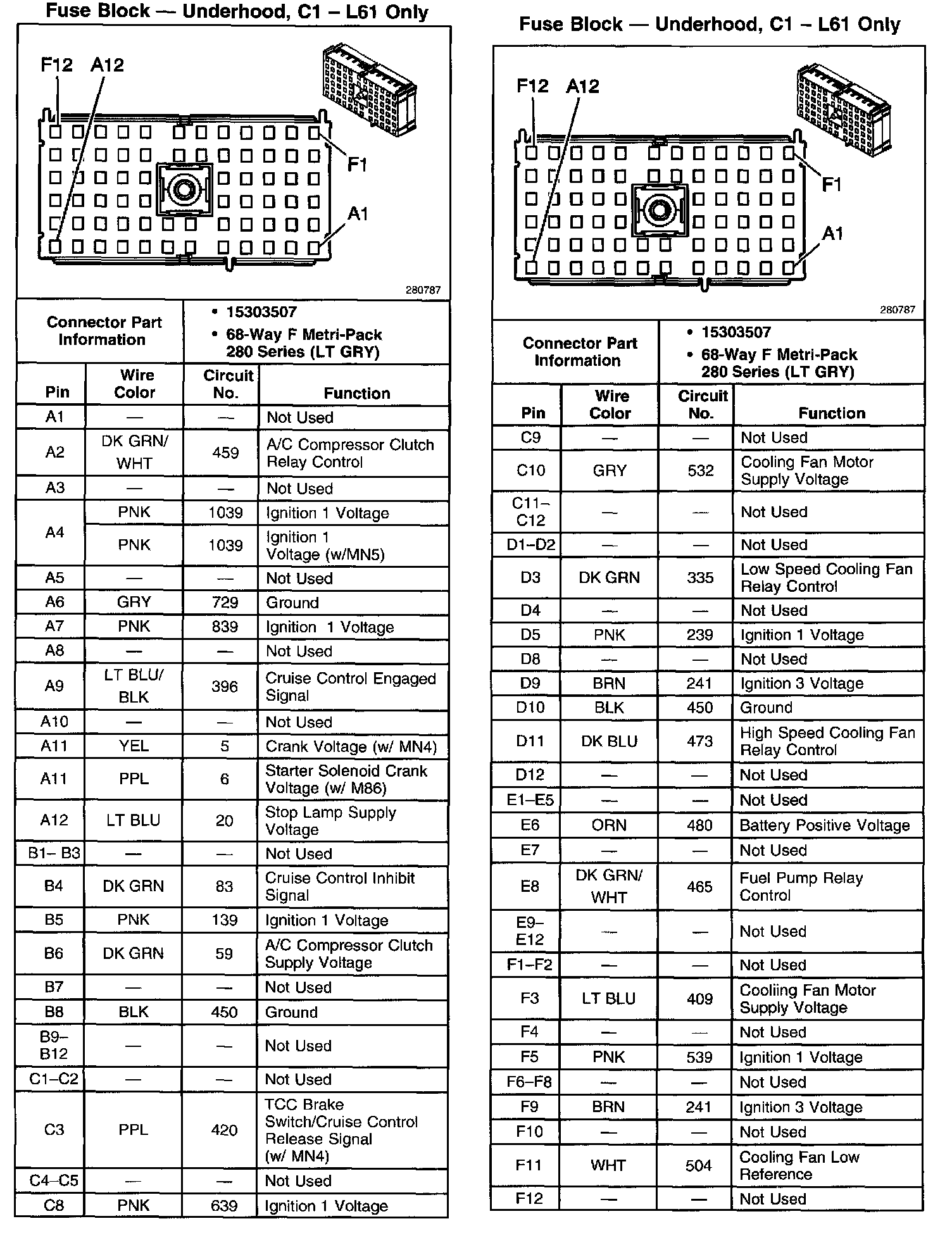

Fuse Block - Underhood, C1 - L61 Only:
