License Plate Lamp: Service and Repair
LICENSE LAMP REPLACEMENTREMOVAL PROCEDURE
1. Remove the screws from the license lamp
2. Remove the license lamp from the rear compartment lid.

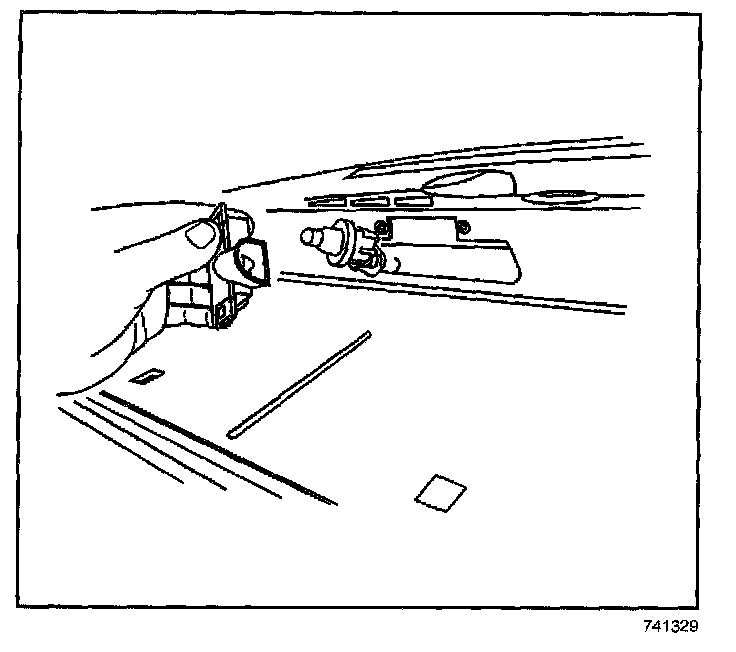

3. Remove the bulb/socket from the license lamp by rotating counterclockwise.

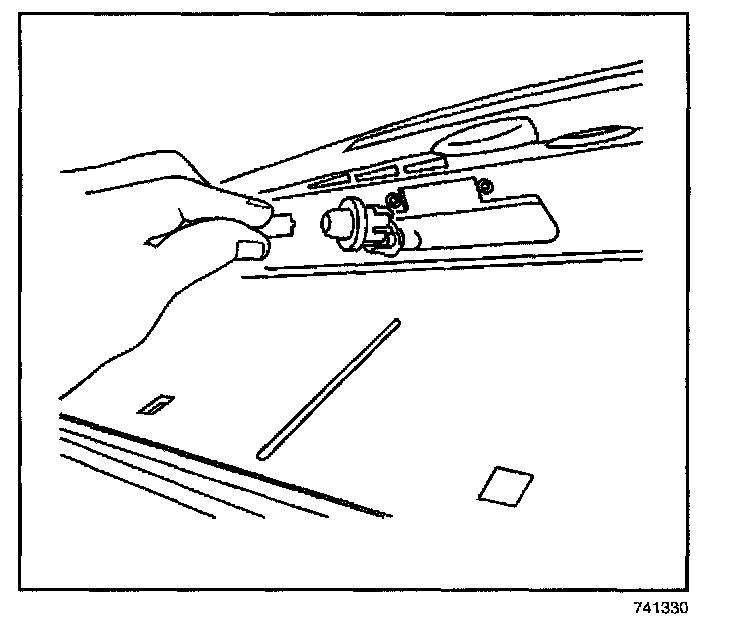

4. Remove the license lamp bulb from the socket, if required.
INSTALLATION PROCEDURE
1. Install the license lamp bulb to the socket, if required.

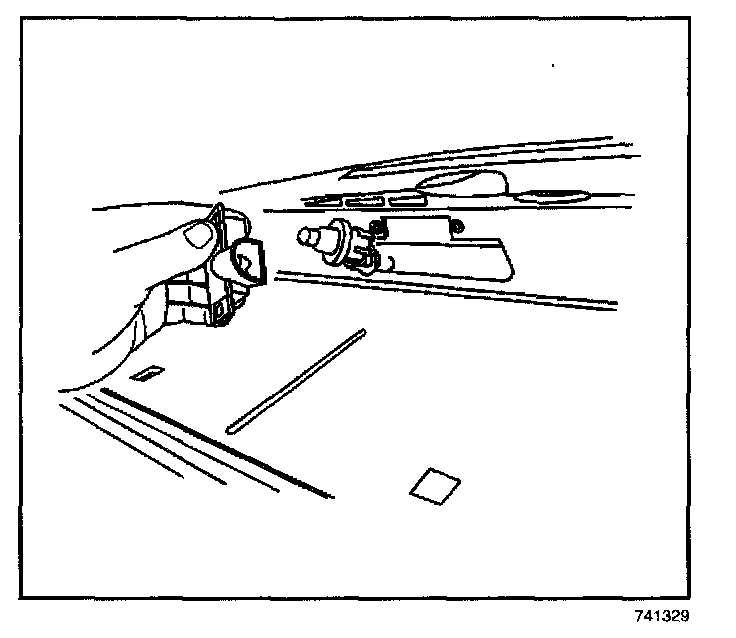

2. Install the license lamp socket to the license lamp, by rotating clockwise.
3. Install the license lamp to the rear compartment lid.
NOTE: Refer to Fastener Notice in Service Precautions.
4. Install the license lamp screws to the license lamp.
Tighten
Tighten the license lamp screw to 2 N.m (18 lb in).
