Hazard Warning Switch: Service and Repair
HAZARD WARNING SWITCH REPLACEMENT - ON VEHICLEREMOVAL PROCEDURE

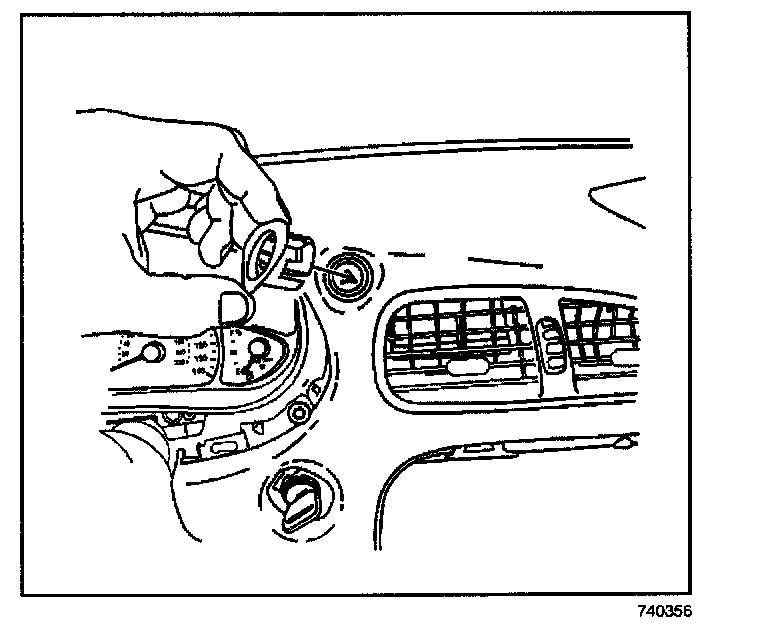

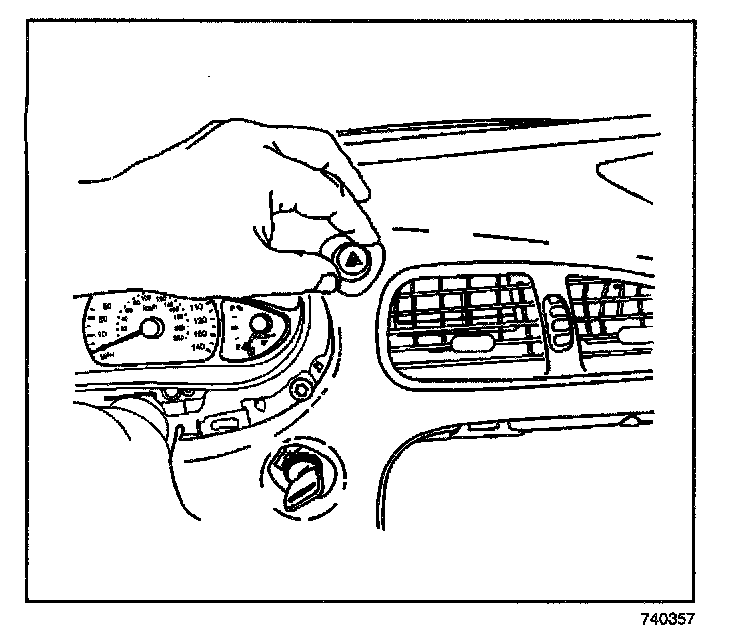

1. Remove the hazard warning switch bezel from the Instrument Panel (IP) using a small-flat bladed tool to release the retainers.

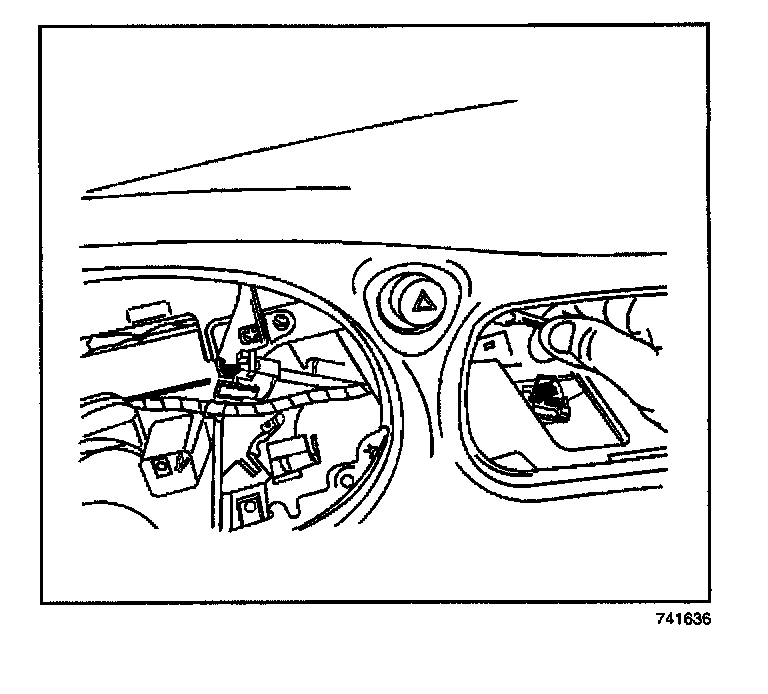

2. Remove the IP center air outlet.
3. Remove the IP cluster.

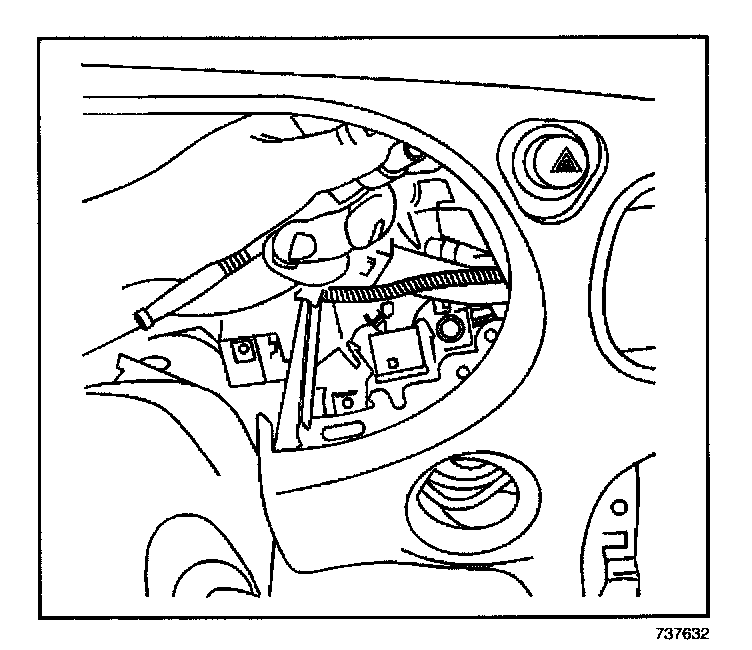

4. Remove the left side bolt from the hazard warning switch through the instrument panel cluster pocket.

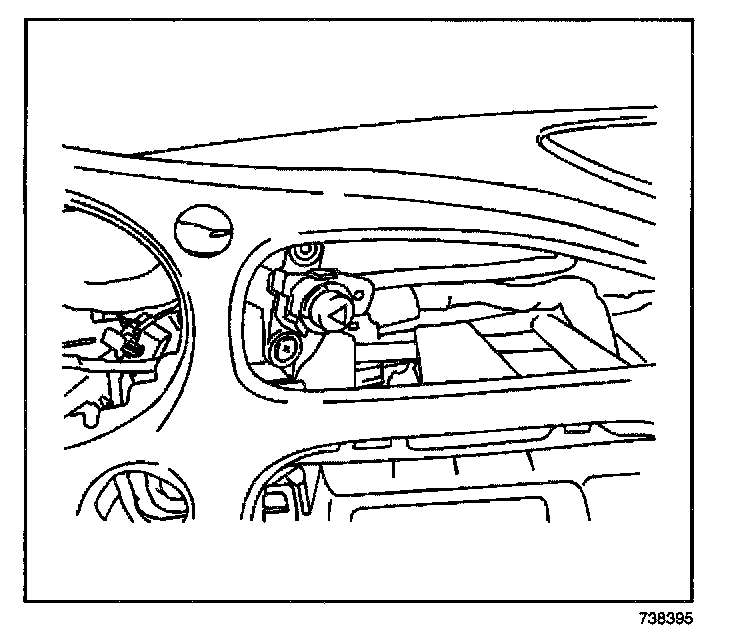

5. Remove the right side and center lower bolts from the hazard warning switch through the center air outlet opening.
6. Reposition the hazard warning switch to the center air outlet opening.

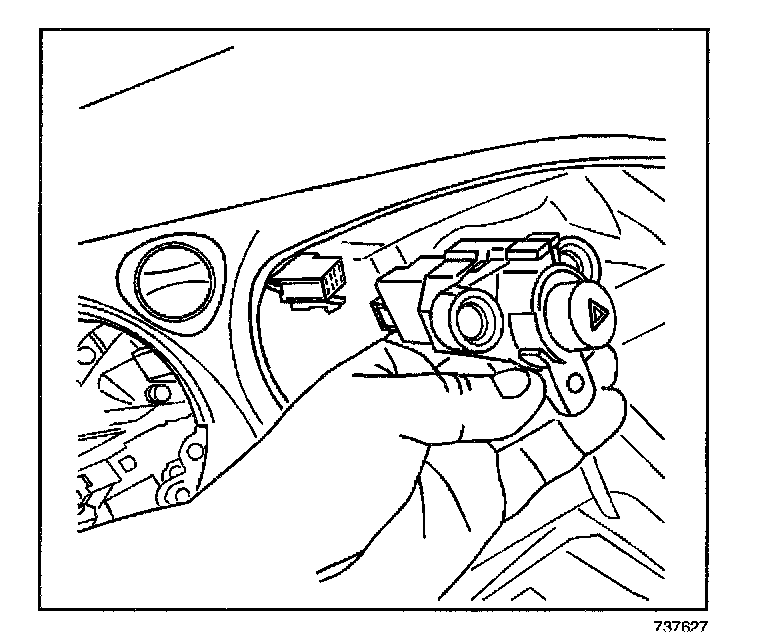

7. Disconnect the electrical connectors from the hazard warning switch.
8. Remove the hazard warning switch from the IP.
INSTALLATION PROCEDURE
1. Connect the electrical connector to the hazard warning switch.
2. Position the hazard warning switch to the mounting points in the IP.
NOTE: Refer to Fastener Notice in Service Precautions.
3. Install the left side bolt to the hazard warning switch through the IP cluster pocket.
Tighten
Tighten the bolt to 3 N.m (27 lb in).
4. Install the right side and center lower bolts to the hazard warning switch through the center air outlet opening.
Tighten
Tighten the bolt to 3 N.m (27 lb in).
5. Install the IP cluster.
6. Install the IP center air outlet.
7. Install the hazard warning switch bezel to the IP. Press the bezel into place until fully seated.
