Home
>>
Oldsmobile
>>
2002
>>
Alero L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Diagrams
>>
Connector Views
Connector Views
Backup Lamp - Left - Oldsmobile:

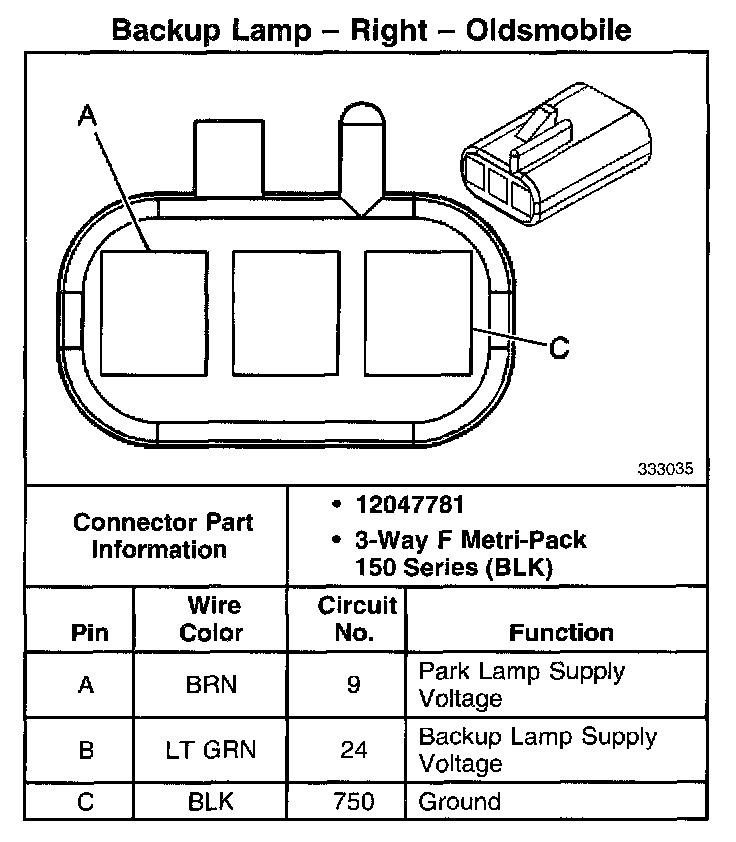

Backup Lamp - Right - Oldsmobile:
