Instrument Panel Air - Right Vent

DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - RIGHT VENT

REMOVAL PROCEDURE

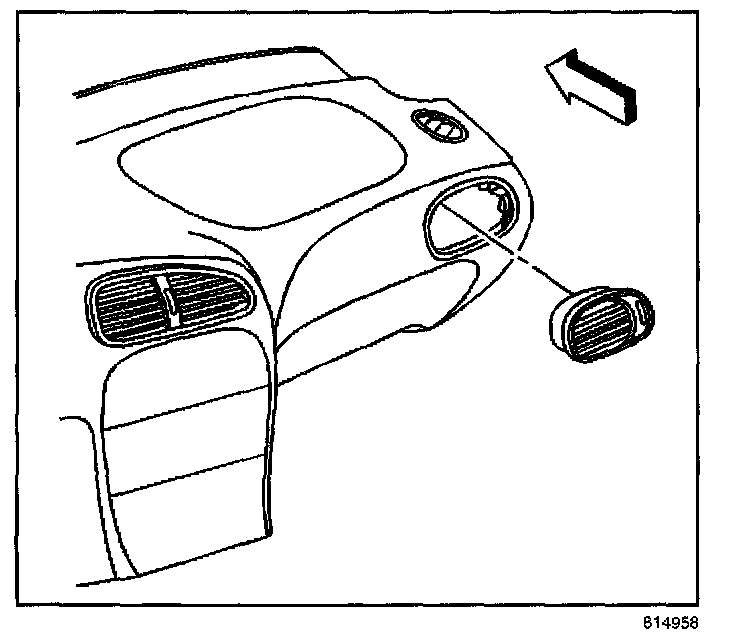

1. Remove the Instrument Panel (IP) outer air outlet using a small flat-bladed tool.
2. Remove the outlet.

INSTALLATION PROCEDURE




1. Align the outlet to the opening in the IP.
2. Press the outlet into place until fully seated.
