Instrument Panel Air - Left

DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - LEFT

REMOVAL PROCEDURE




1. Remove the Instrument Panel (IP) outer air outlet using a small flat-bladed tool.
2. Disconnect the electrical connectors (1) from the switches.

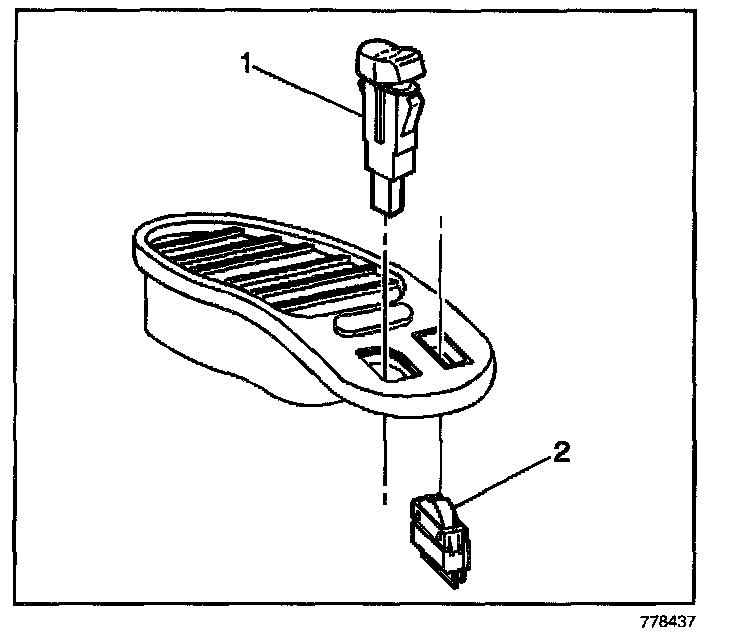

3. Remove the fog lamp switch (1).
4. Remove the IP lamp dimmer switch (2).

INSTALLATION PROCEDURE




1. Install the IP lamp dimmer switch (2).
2. Install the fog lamp switch (1).




3. Connect the electrical connectors (1) to the switches.
4. Install the IP outer air outlet. Press the outlet into place until fully seated.
