Defogger Outlet Duct Replacement - Side Window, LH

REMOVAL PROCEDURE




1. Remove the IP trim pad.

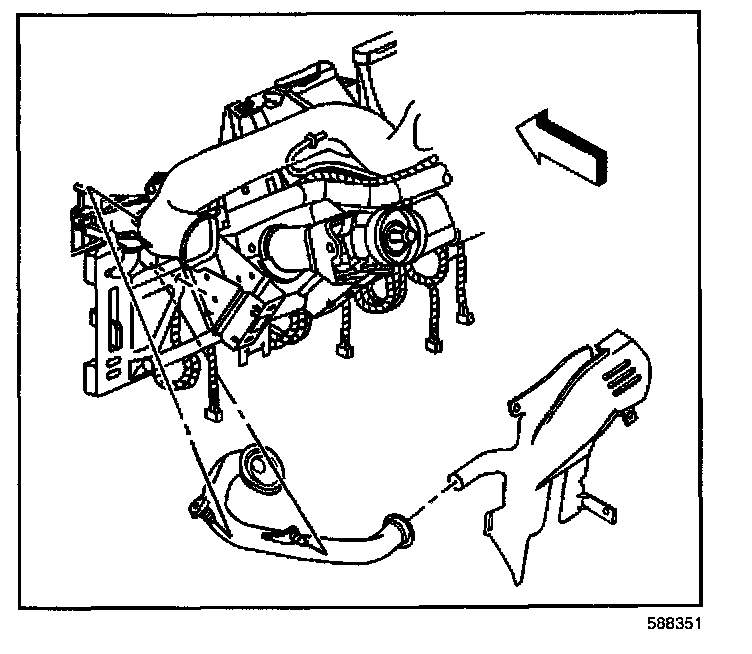

2. Remove the left defogger outlet duct retainer from the air distribution duct.
3. Remove the left defogger outlet duct retainer from the HVAC module assembly.
4. Remove the left defogger outlet duct from the vehicle.

INSTALLATION PROCEDURE




1. Install the left defogger outlet duct over the air distribution duct.
2. Install the left defogger outlet duct retainer to the air distribution duct.
3. Install the left defogger outlet duct retainer to the HVAC module assembly.
4. Install the IP trim pad.
