Oldsmobile
>>
2002
>>
Alero L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Fuel Controls
>>
Fuel Pump Controls
Fuel Pump Controls

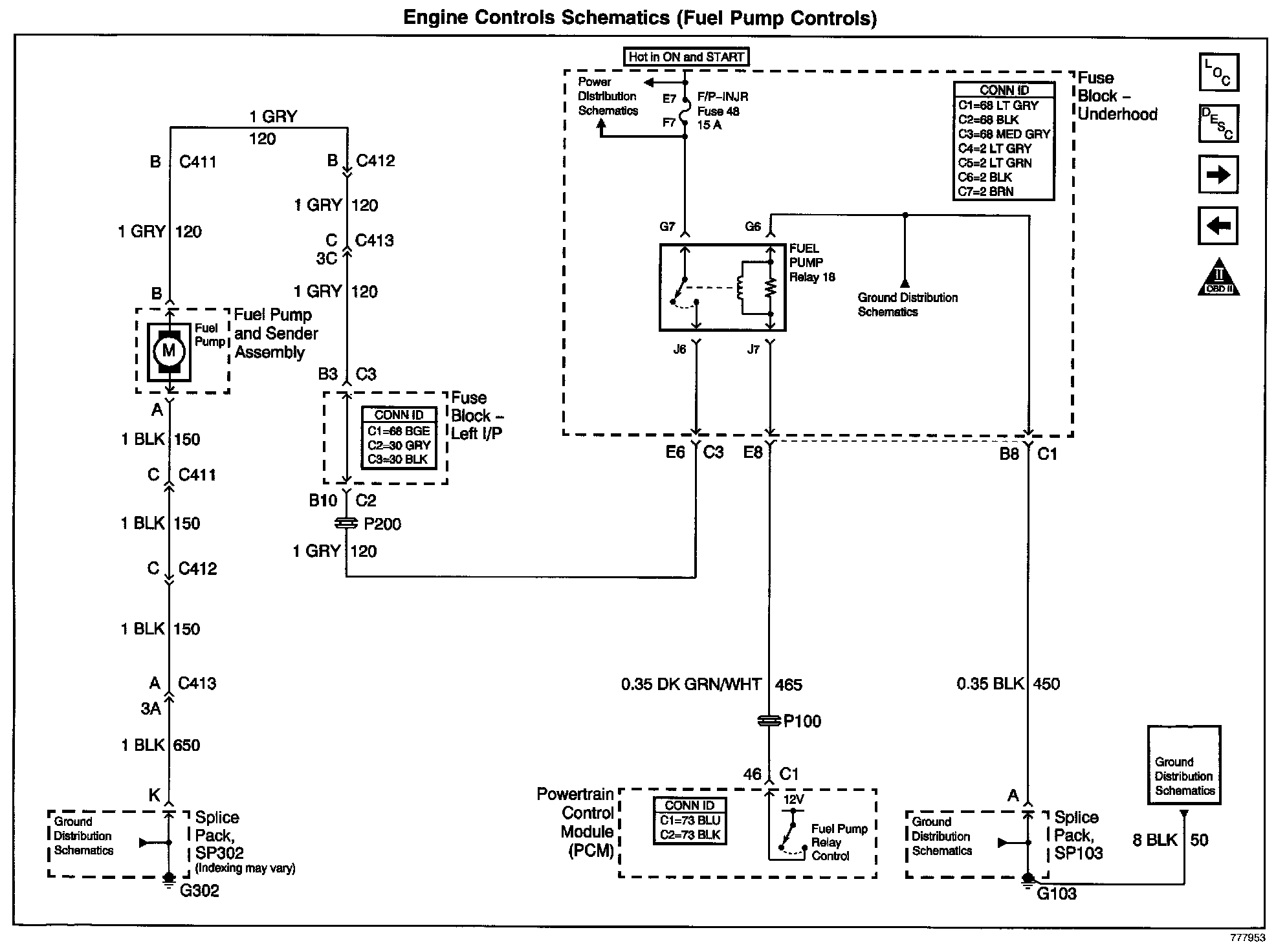

Engine Controls Schematics: Fuel Pump Controls:
