Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2002
>>
Alero L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Turn Signals
>>
Turn Signal Lamp
>>
Rear Lamp Assembly, RH
Rear Lamp Assembly, RH

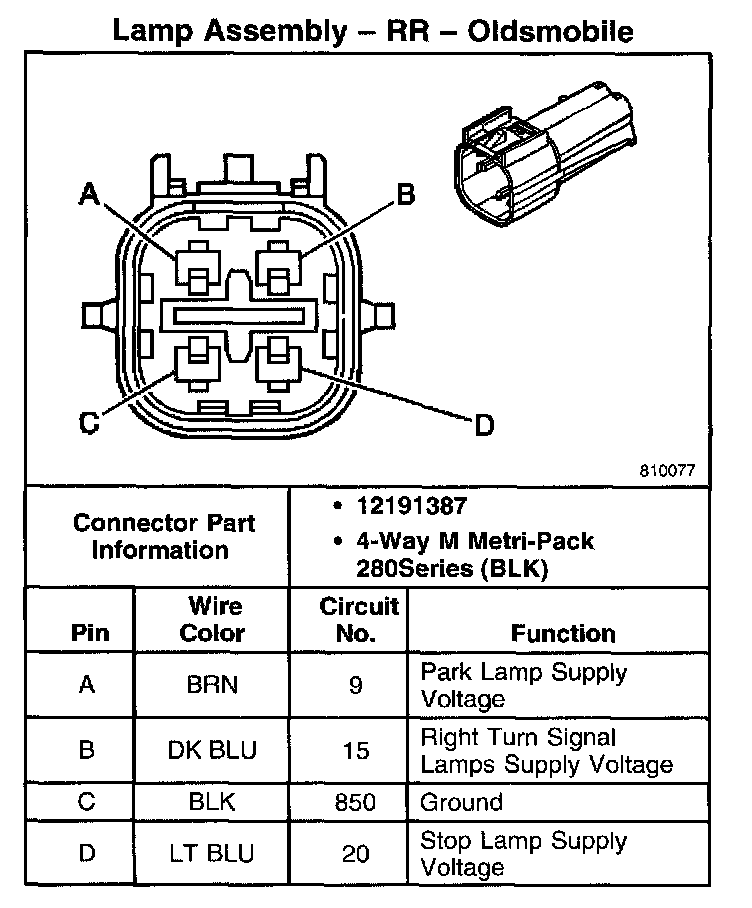

Lamp Assembly - RR - Oldsmobile:
