Home >> Oldsmobile >> 2002 >> Alero L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Turn Signals >> Turn Signal Lamp >> Rear Lamp Assembly, LH

Rear Lamp Assembly, LH

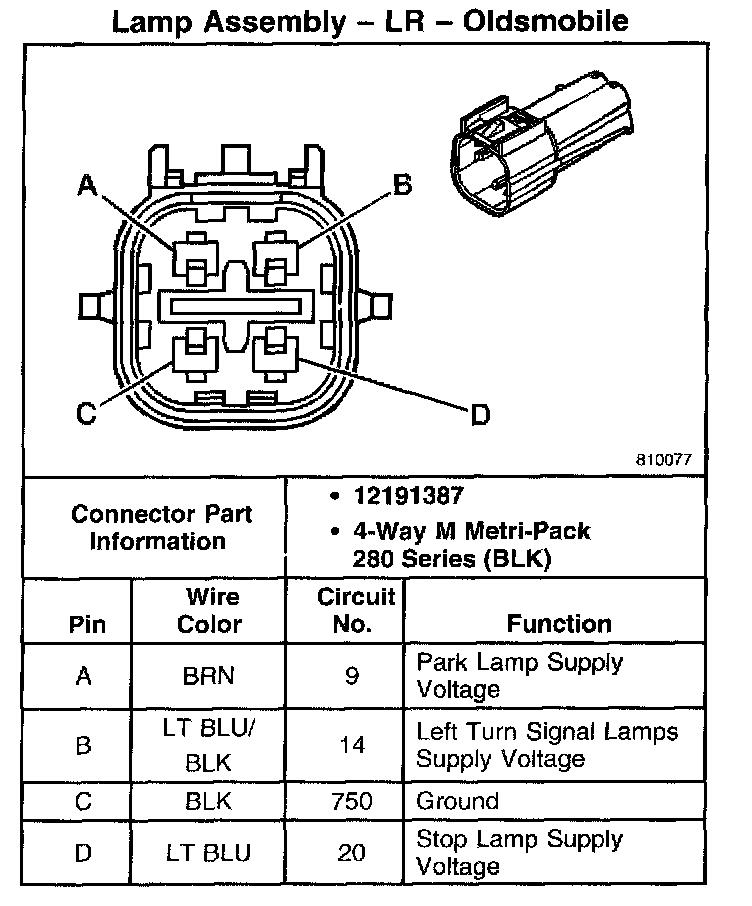

Lamp Assembly - LR - Oldsmobile:
