Alero L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Fog/Driving Lamp
>>
System Diagram
System Diagram
Fog Lamp - LF - Oldsmobile:

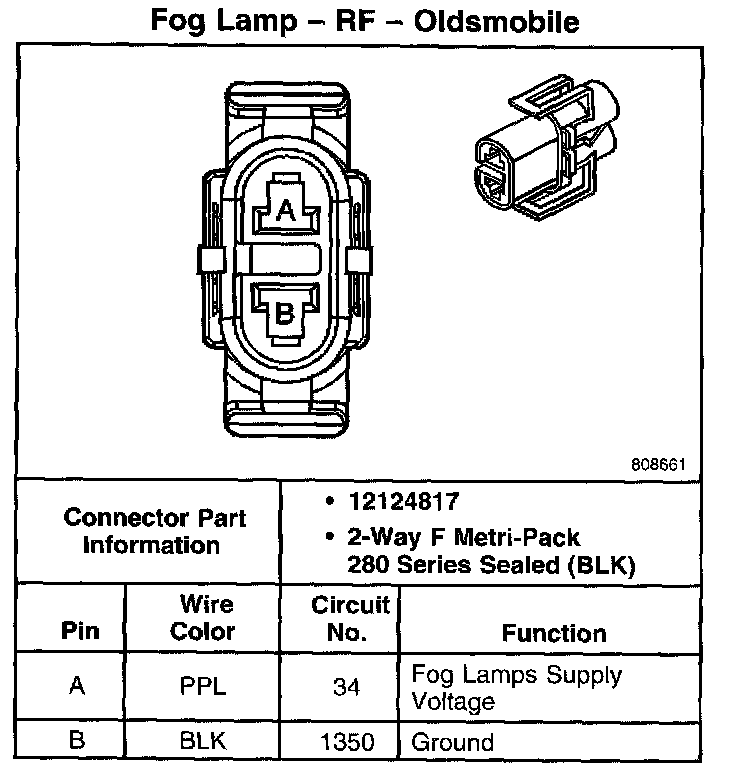

Fog Lamp - RF - Oldsmobile:
