Brake Pressure Modulator Valve (BPMV) Replacement

Brake Pressure Modulator Valve (BPMV) Replacement

Removal Procedure





Caution: For safety reasons, the brake pressure modulator valve assembly must not be repaired, the complete unit must be replaced. With the exception of the EBCM, no screws on the brake pressure modulator valve assembly may be loosened. If screws are loosened, it will not be possible to get the brake circuits leak-tight and personal injury may result.

1. Remove the battery.
2. Remove the battery tray.

Important: Note the locations of the brake pipes in order to aid in installation.

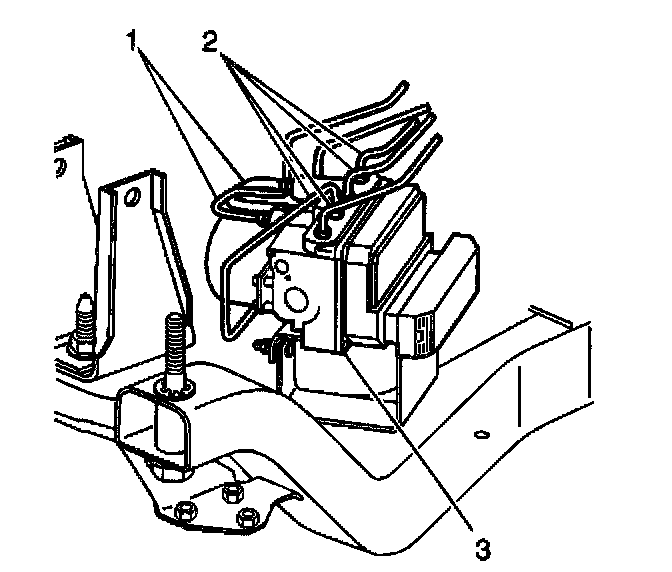

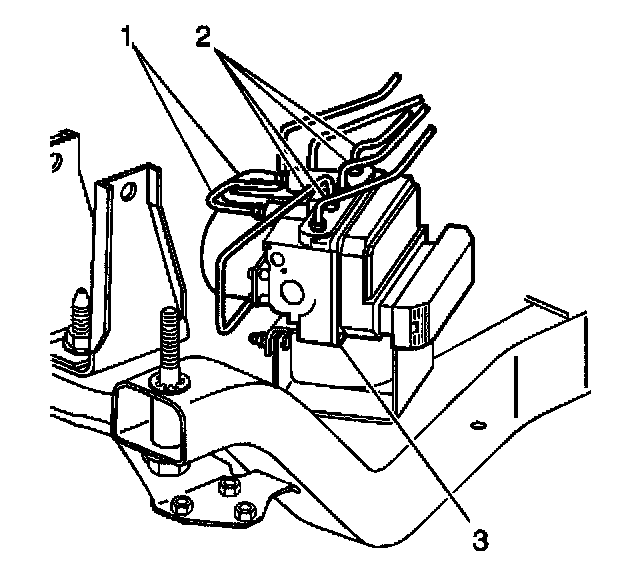

3. Disconnect the caliper and wheel cylinder brake pipes (2) from the BPMV (3). Cover the ends of the brake pipes to avoid dripping or contamination.
4. Disconnect the master cylinder brake pipes (1) from the BPMV (3). Cover the ends of the brake pipes to avoid dripping or contamination.
5. Raise and support the vehicle on a suitable hoist. Refer to Vehicle Lifting.
6. Remove the front engine splash shield.
7. Remove the left engine splash shield.

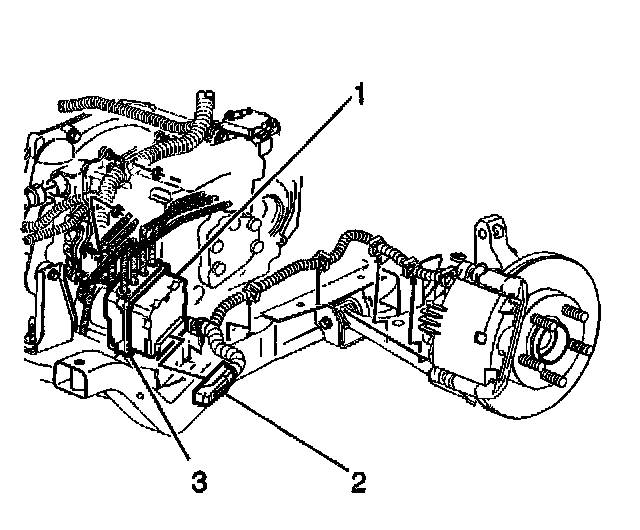

8. Disconnect the Connector Position Assurance (CPA) (2) from the EBCM connector.

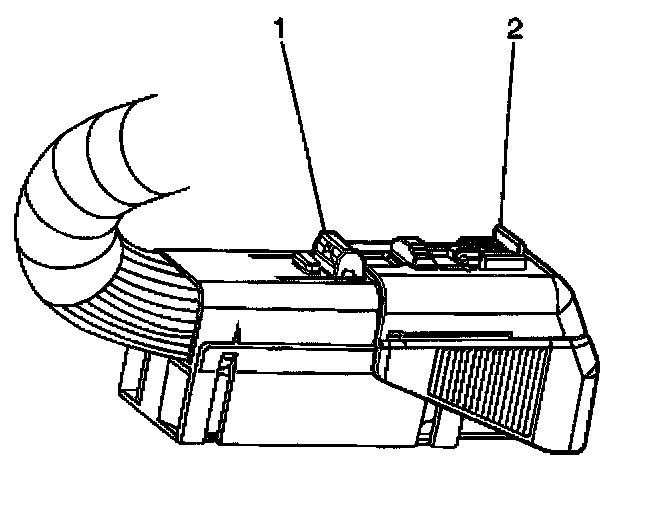

9. Push the lock tab (1) down and then move the sliding connector cover to the open position.





10. Disconnect the EBCM harness connector (2) from the EBCM (1).

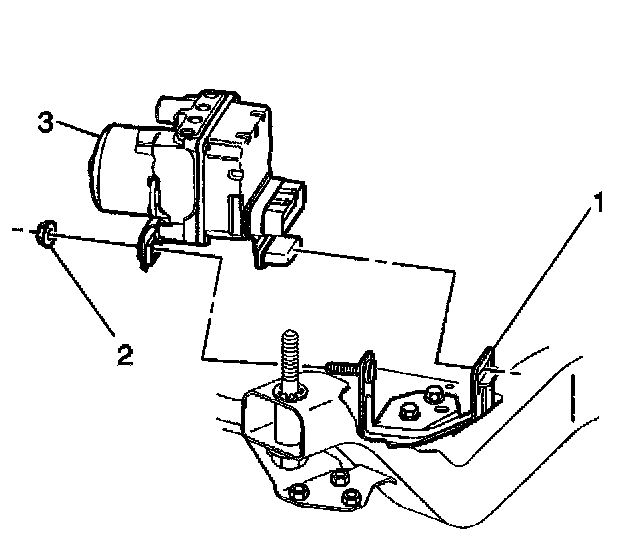

11. Remove the BPMV retaining nut (2).
12. Remove the EBCM/BPMV assembly (3) from the vehicle.

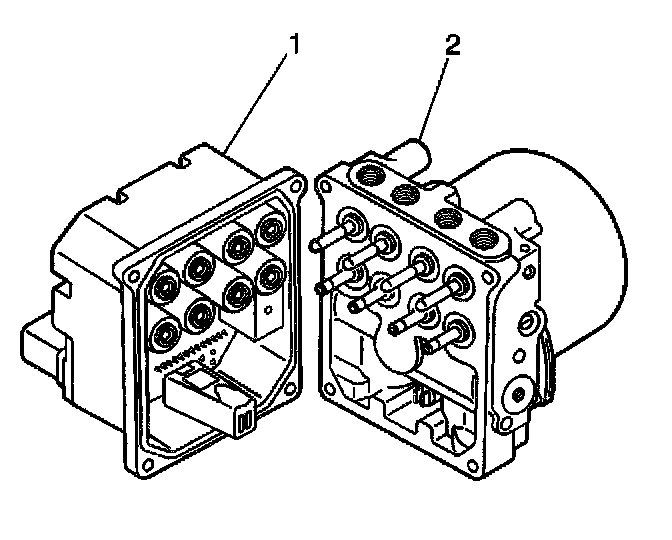

13. Remove the EBCM (1) from the BPMV (2).

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

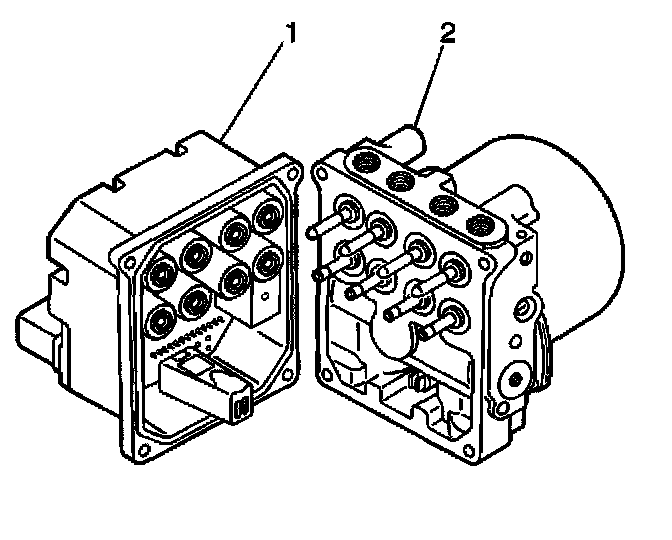

1. Install the EBCM(1) to the BPMV(2).
^ Tighten the four screws that connect the EBCM(1) to the BPMV(2) to 5 Nm (44 inch lbs.).

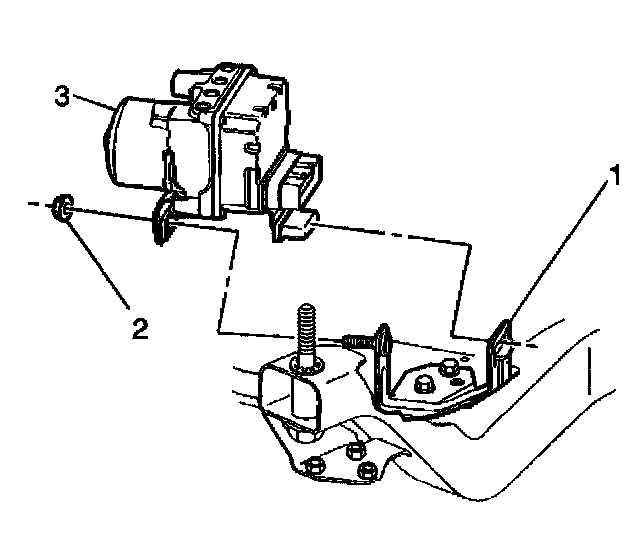

2. Install the EBCM/BPMV assembly (3) to the vehicle.
3. Install the BPMV retaining nut (2).
^ Tighten the retaining nut to 10 Nm (7 ft. lbs.).

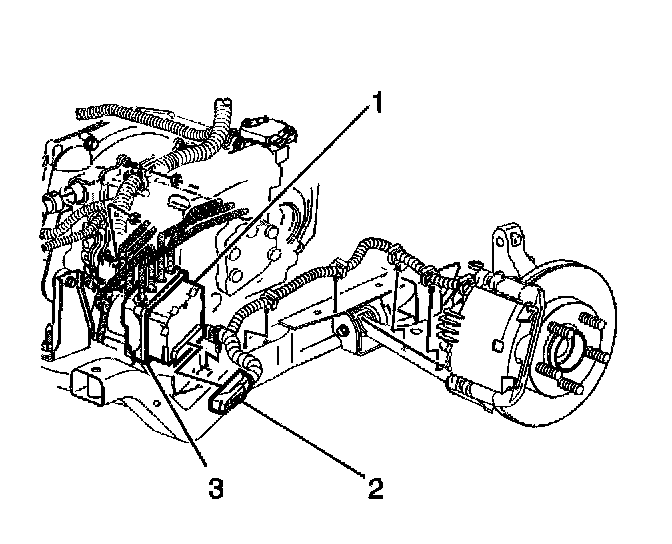

4. Connect the EBCM harness connector (2) to the EBCM(1).





5. Push down the lock tab (1) and then move the sliding connector cover back in the home position to lock.
6. Insert the CPA (2) back into place.
7. Install the left engine splash shield.
8. Install the front engine splash shield.
9. Lower the vehicle. Refer to Vehicle Lifting.





Caution: Make sure brake pipes are correctly connected to brake pressure modulator valve. If brake pipes are switched by mistake, wheel lockup will occur and personal injury may result. The only two ways this condition can be detected are by using a Scan Tool or by doing an Antilock stop.

10. Connect the master cylinder brake pipes (1) to the BPMV (3).
^ Tighten the brake pipe fittings to 24 Nm (18 ft. lbs.).
11. Connect the caliper and wheel cylinder brake pipes (2) to the BPMV (3).
^ Tighten the brake pipe fittings to 24 Nm (18 ft. lbs.).
12. Install the battery tray.
13. Install the battery.
14. Perform the Diagnostic System Check - ABS
