Rear
Brake Hose Replacement- RearRemoval Procedure
1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Clean the dirt and foreign material from the brake hoses and fittings.

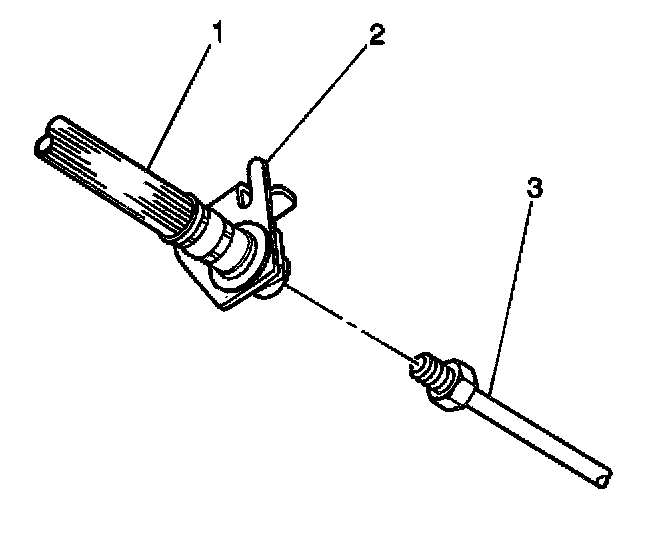

3. Remove the rear brake pipe (3) from the brake hose (1).
4. Remove the retainer clips (4) from the brake hose (3).
5. Remove the brake hose (3) from the bracket (1).

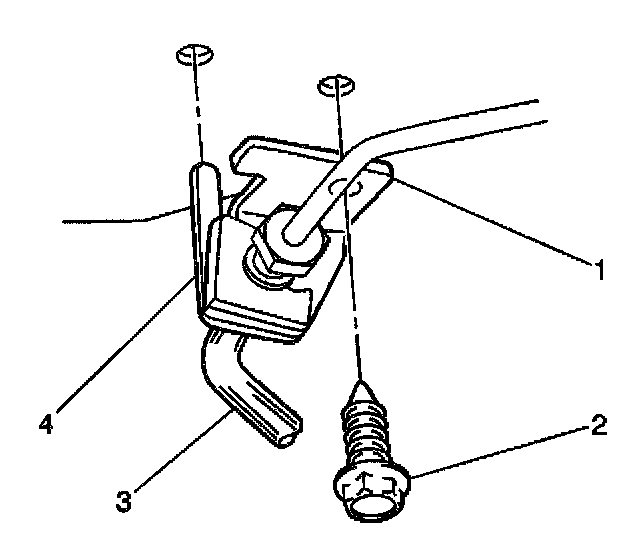

6. Remove the rear brake hose retaining bolt (3) from the rear brake hose (2).
7. Remove the brake hose (2) from the vehicle.
Installation Procedure
1. Install the brake hose (2) to the vehicle.
Notice: Refer to Fastener Notice in Service Precautions.

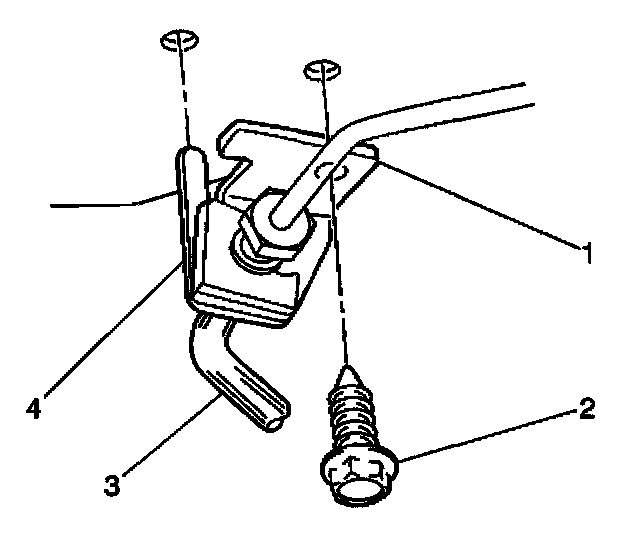

2. Install the rear brake hose retaining bolt (3) to the rear brake hose (2).
^ Tighten the retaining bolt to 50 Nm (37 ft. lbs.).
3. Install the brake hose (3) to the bracket (1).
4. Install the retainer clip (4) to the brake hose (1).
5. Install the rear brake pipe (3) to the brake hose (1).
^ Tighten the fitting to 27 Nm (20 ft. lbs.).
6. Bleed the brake hydraulic system.
7. Lower the vehicle.
