Front Lower

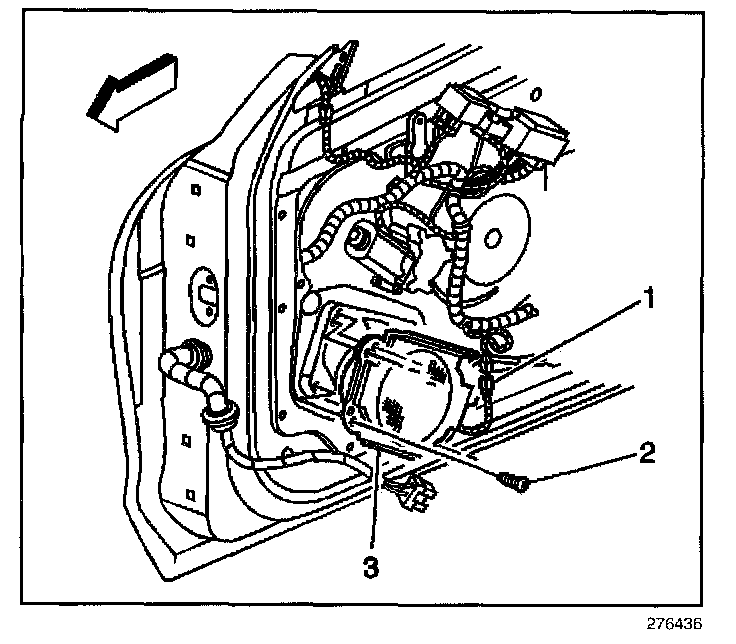

REMOVAL PROCEDURE




1. Remove the front door trim panel.
2. Remove the screws (2) from the front door speaker.
3. Remove the front door speaker (3) from the front door.
4. Disconnect the electrical connector (1) from the front door speaker.
5. Remove the front door speaker base from the front door.

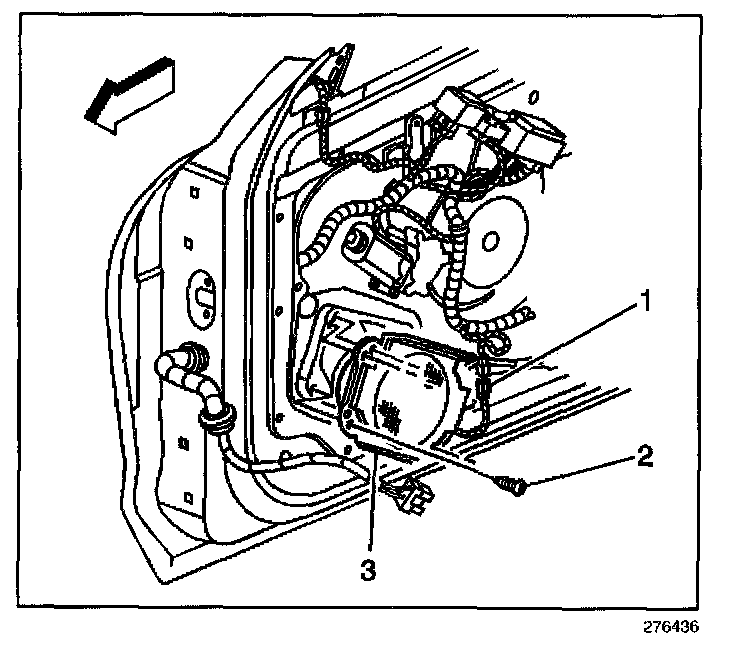

INSTALLATION PROCEDURE




1. Install the front door speaker base to the front door.
2. Connect the electrical connector (1) to the front door speaker.
3. Install the front door speaker (3) to the speaker base.

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the front door speaker screws (2).

Tighten
Tighten the screws to 6 N.m (53 lb in).

5. Install the front door trim panel.
