Amplifier: Service and Repair

REMOVAL PROCEDURE

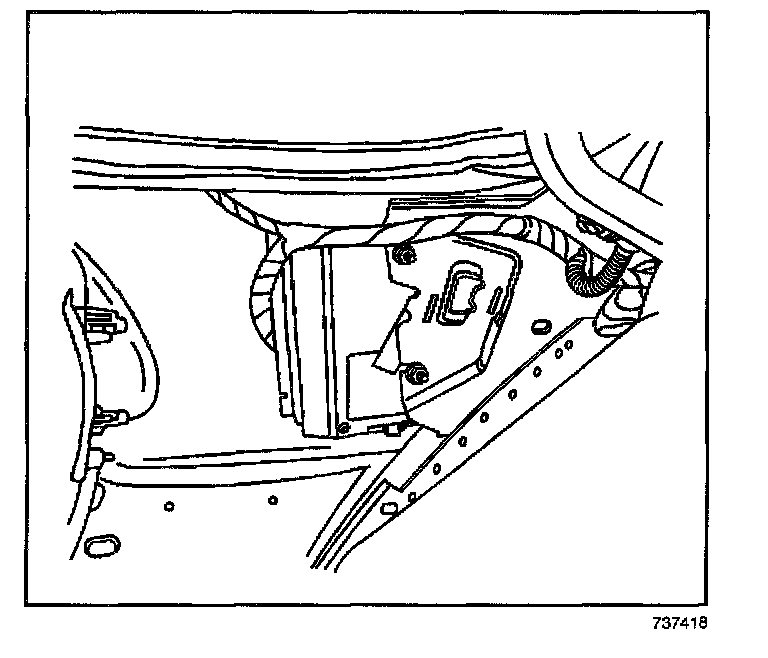

1. Pull back the rear compartment trim on the left side.
2. Loosen the nuts on the amplifier bracket.

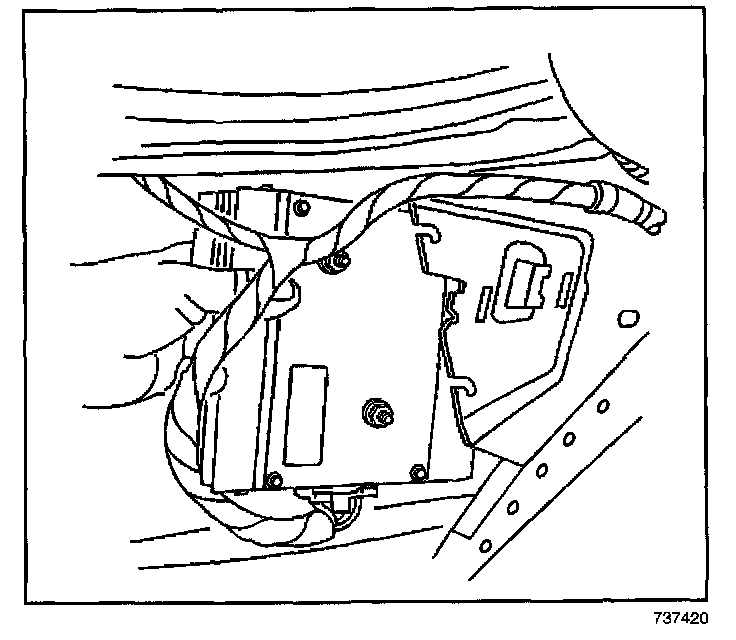

3. Remove the amplifier from the left wheelhouse, lifting up and pulling back.

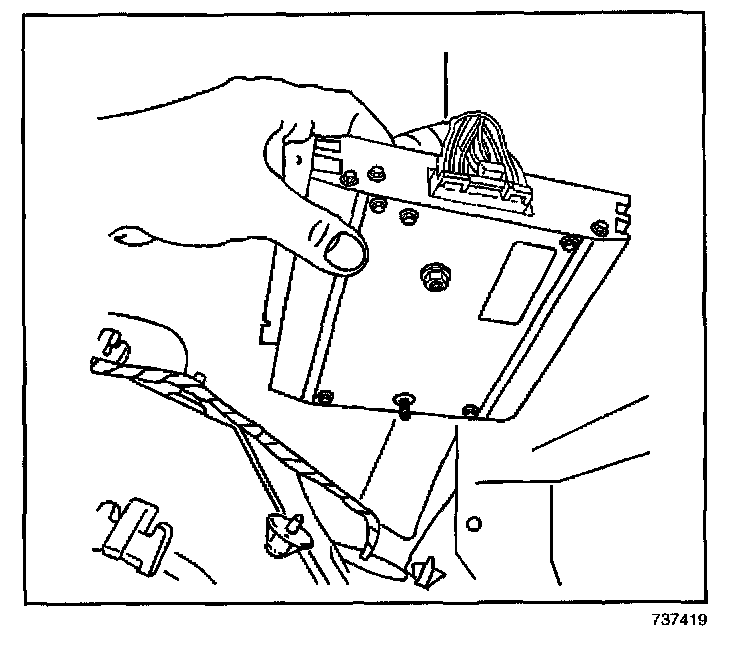

4. Disconnect the electrical connector from the amplifier.
5. Remove the amplifier from the rear compartment.

INSTALLATION PROCEDURE

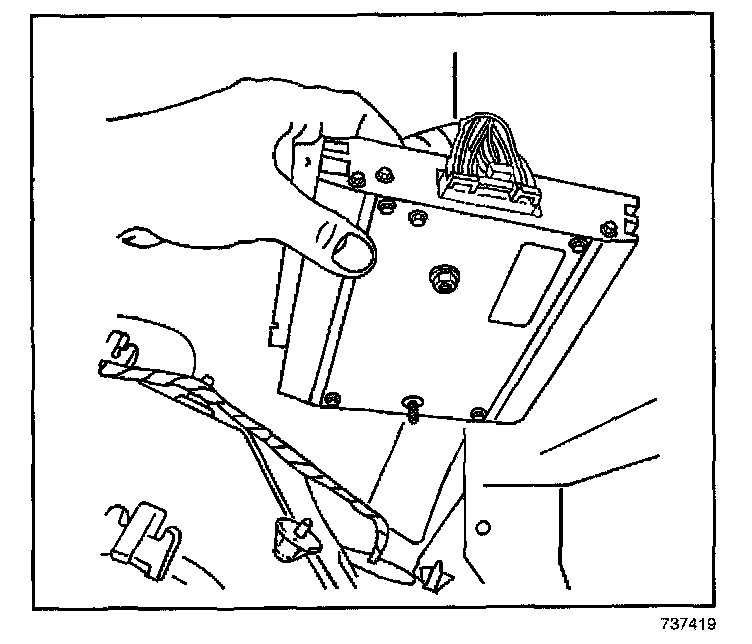

1. Connect the electrical connector to the amplifier.

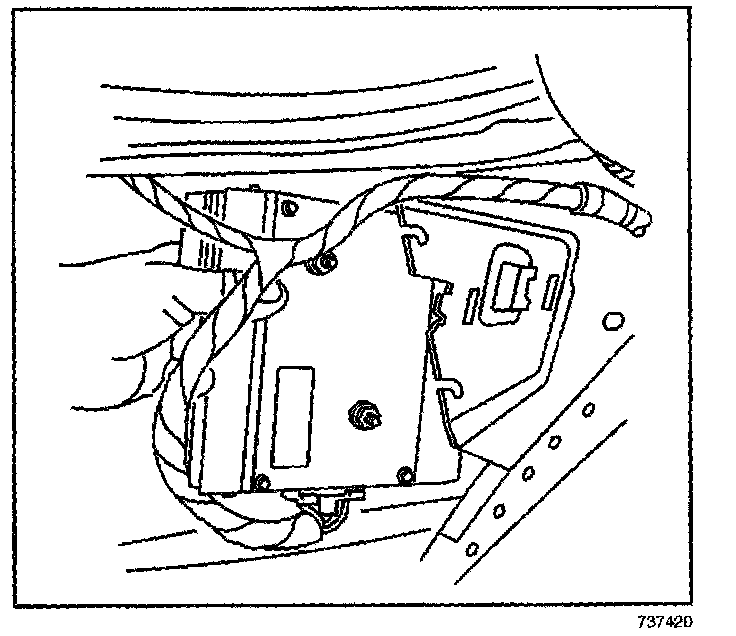

2. Install the amplifier to the left wheelhouse slots, sliding in and down.

NOTE: Refer to Fastener Notice in Service Precautions.




3. Tighten the nuts on the amplifier bracket.

Tighten
Tighten the nuts on the amplifier bracket to 10 N.m (89 lb in).

4. Install the rear compartment trim on the left side.
