Home
>>
Oldsmobile
>>
2001
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Shift Interlock
>>
Diagrams
>>
Electrical Diagrams
>>
Shift Lock Control
>>

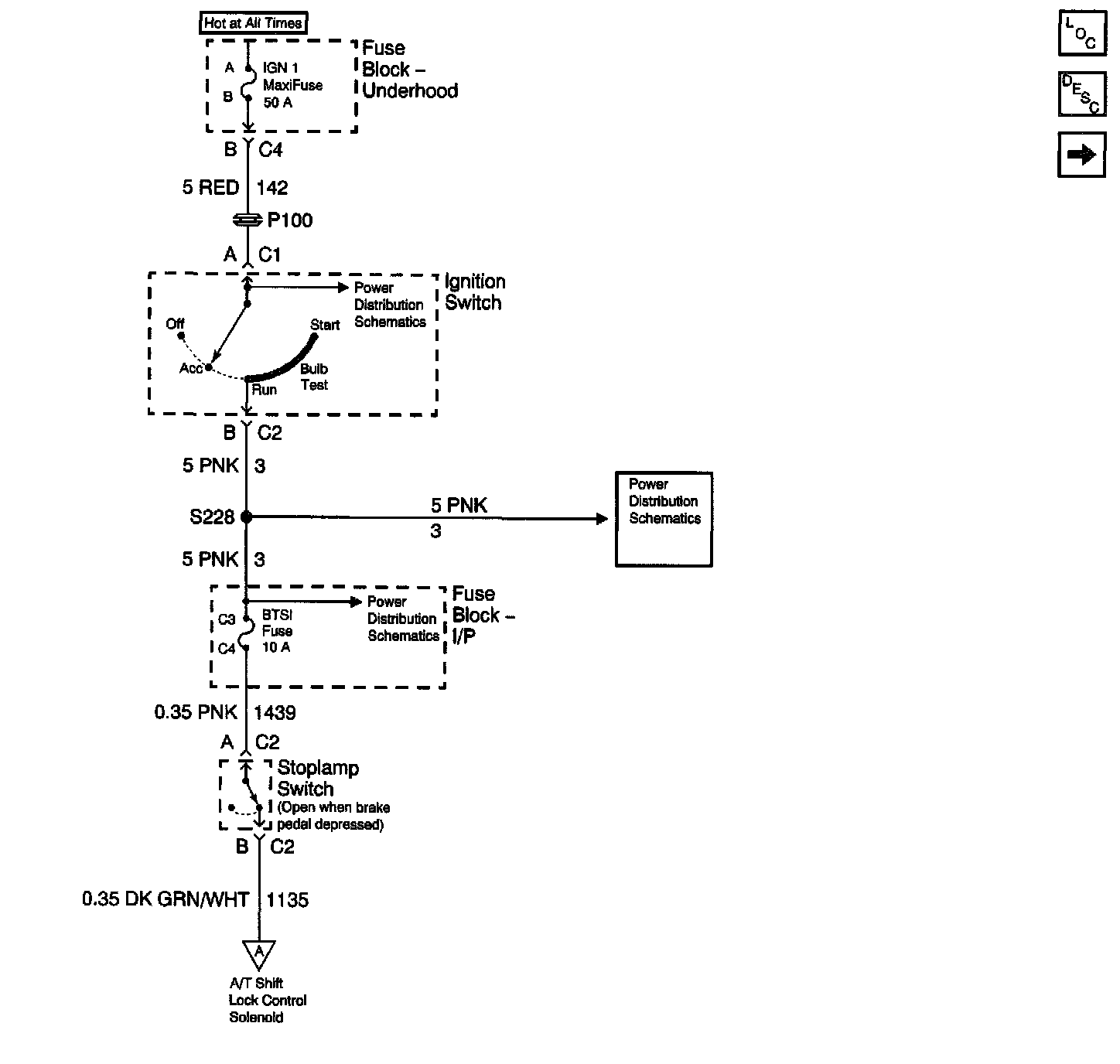

A/T Shift Lock Control Sche. ( Power Feed and Stop Lamp Switch)
A/T Shift Lock Control Sche. ( Power Feed and Stop Lamp Switch)
