Windshield Wiper & Washer Switch - Assemble

Notice: Refer to Fastener Notice in Service Precautions.

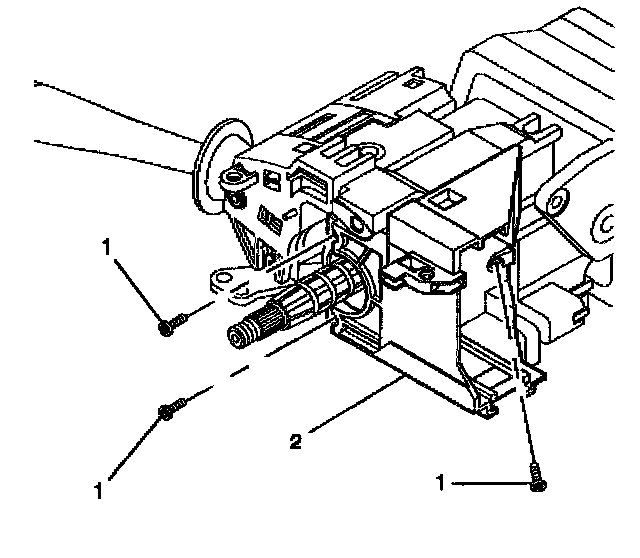

1. Install the signal switch housing assembly (2) and secure by using 3 pan head tapping screws (1).
- Tighten the screws to 7 Nm (62 inch lbs.).

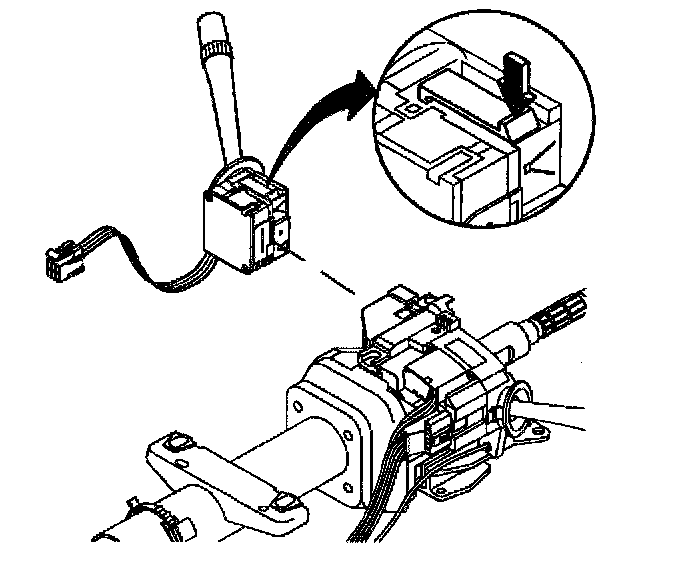

2. Install windshield wiper and washer switch assembly to signal switch housing assembly.
3. Install the steering column tilt head housing. Refer to Steering Column Tilt Head Housing - Assemble - Off Vehicle.
