SIR Steering Wheel Module Coil - Disassemble

1. Remove the upper and lower trim covers.
2. Remove the wire harness straps (2) from the wire harness assembly.

Remove the wire harness strap (2) from the upper tilt head assembly (1).





3. Pop the wire harness assembly (1) out of the wire harness strap (2).

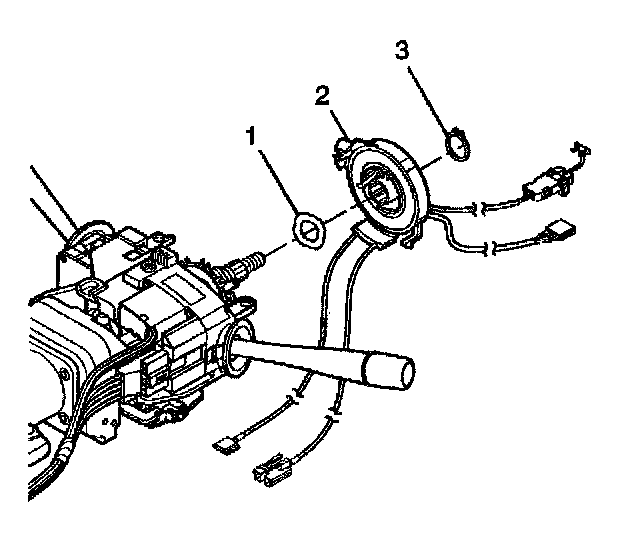

4. Remove the retaining ring (3).
5. Remove the inflatable restraint steering wheel module coil (2).
6. Remove the wave washer (1).
