Ignition Switch

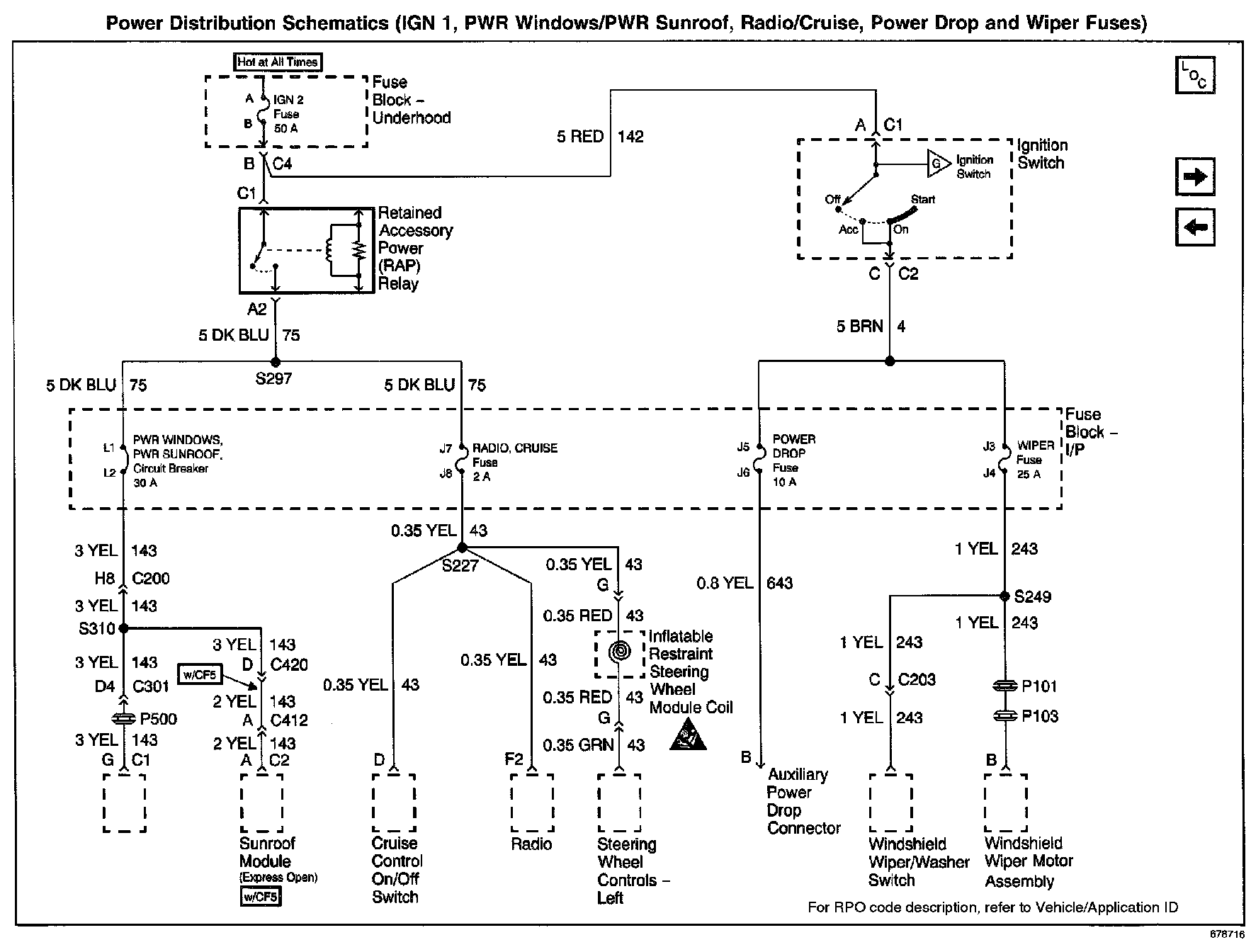

Power Distribution Schematics: IGN 1, PWR Windows/PWR Sunroof, Radio/Cruise, Power Drop And Wiper Fuses:

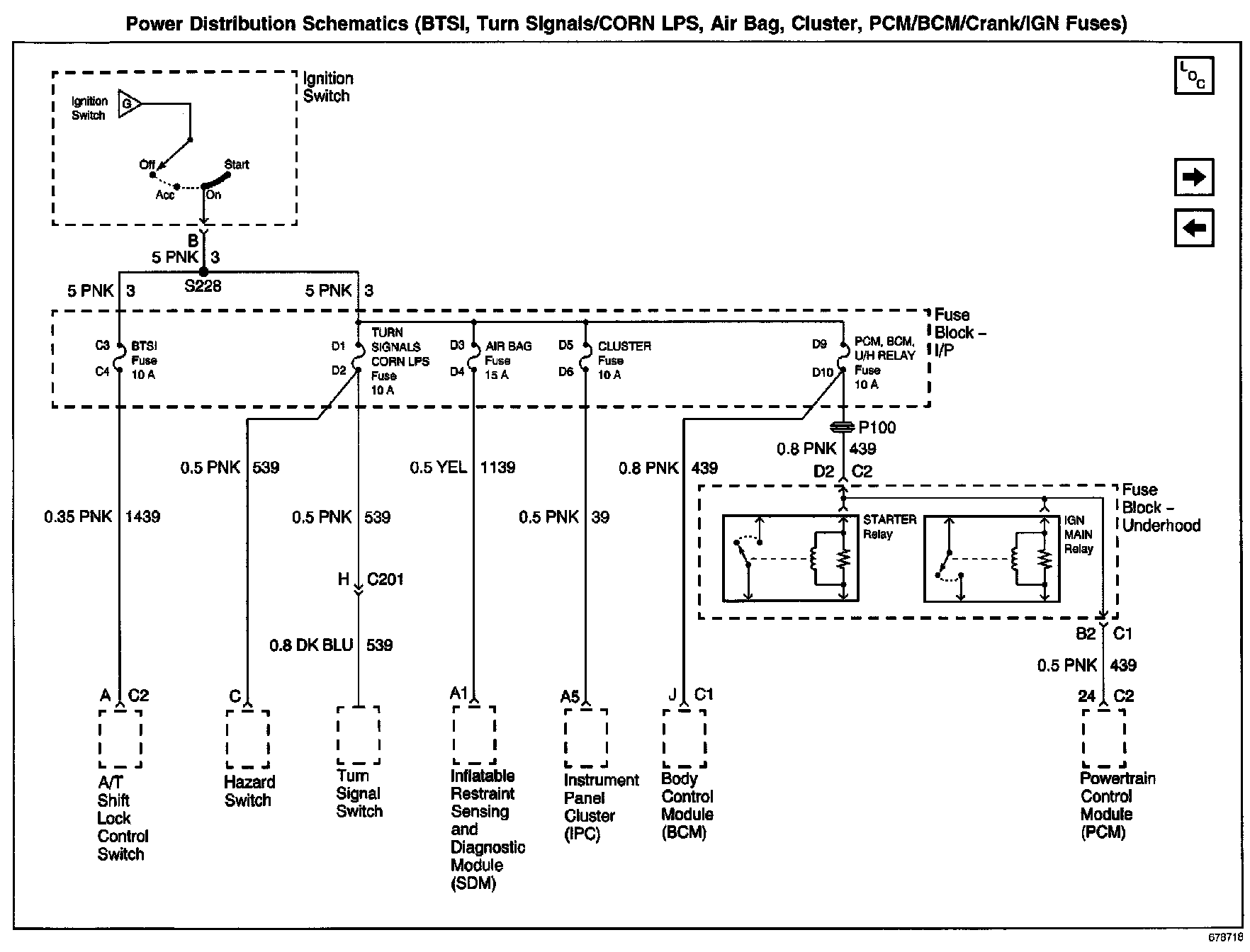

Power Distribution Schematics: BTSI, Turn Signals/CORN LPS, Air Bag, Cluster, PCM/BCM/Crank/IGN Fuses:

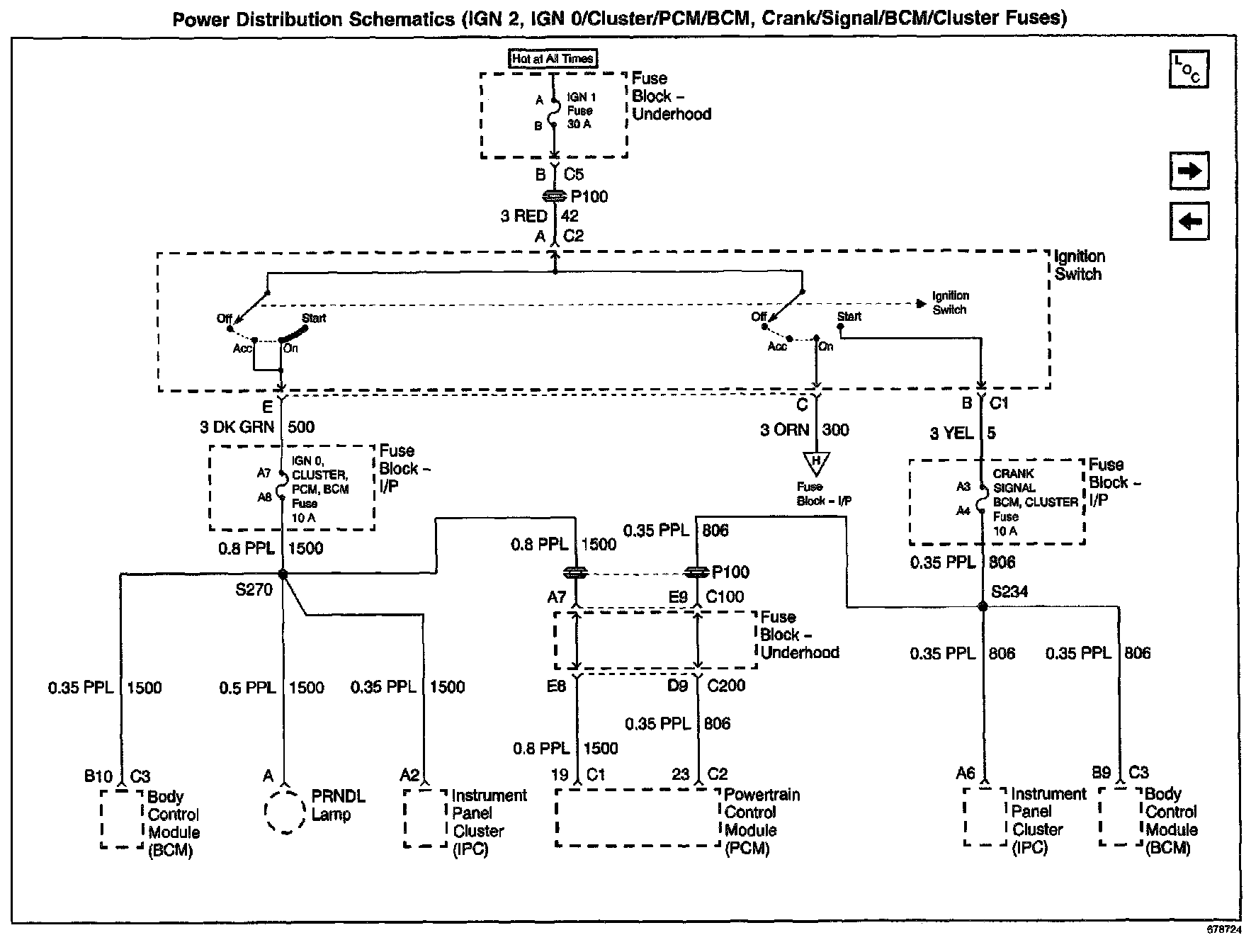

Power Distribution Schematics: IGN 2, IGN 0/Cluster/PCM/BCM, Crank/Signal/BCM/Cluster Fuses:
