Oldsmobile
>>
2001
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
Charging System

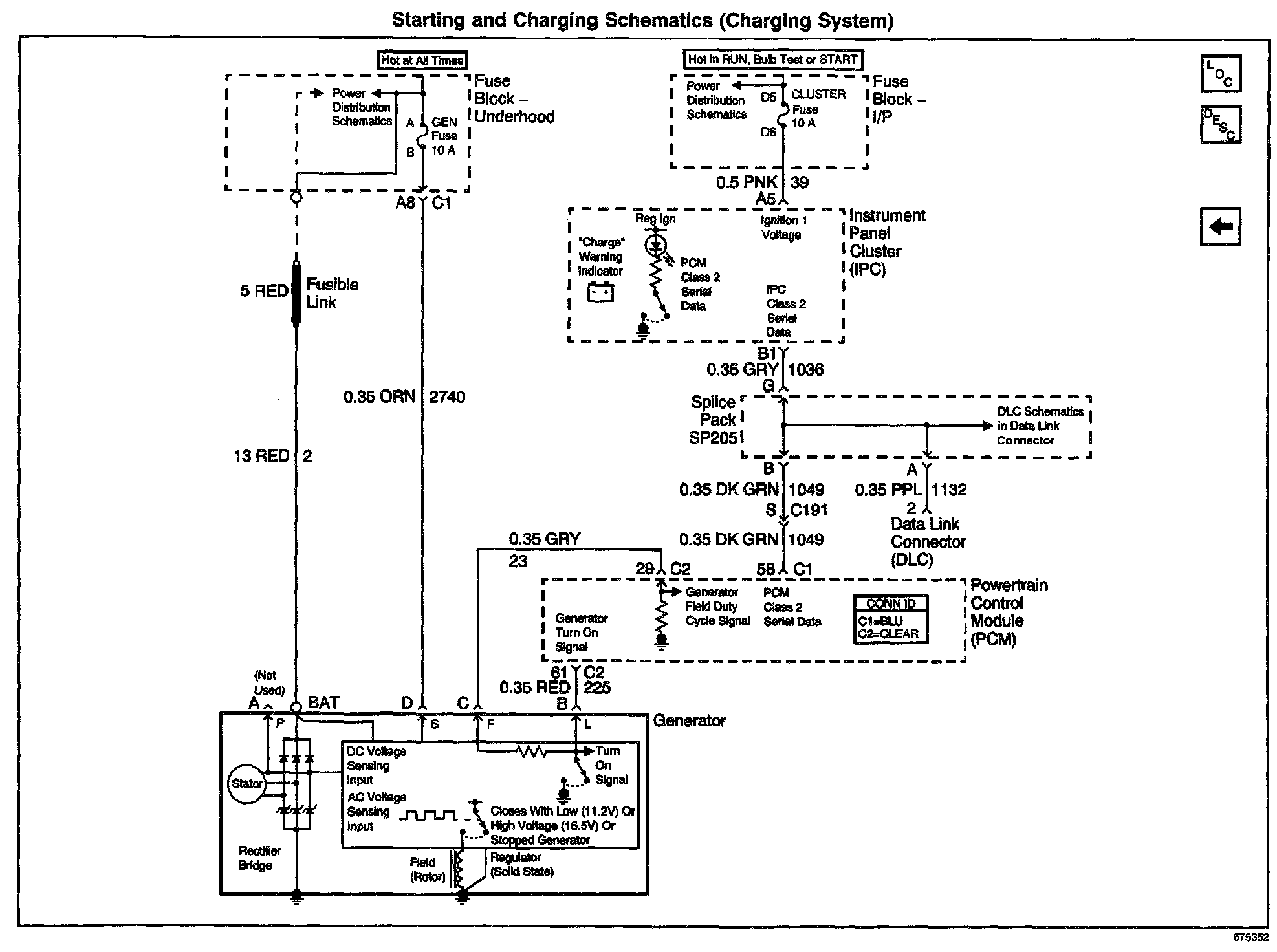

Starting And Charging Schematics: Charging System:
