Oldsmobile
>>
2001
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures
SEAT BELT INDICATOR CIRCUIT MALFUNCTION

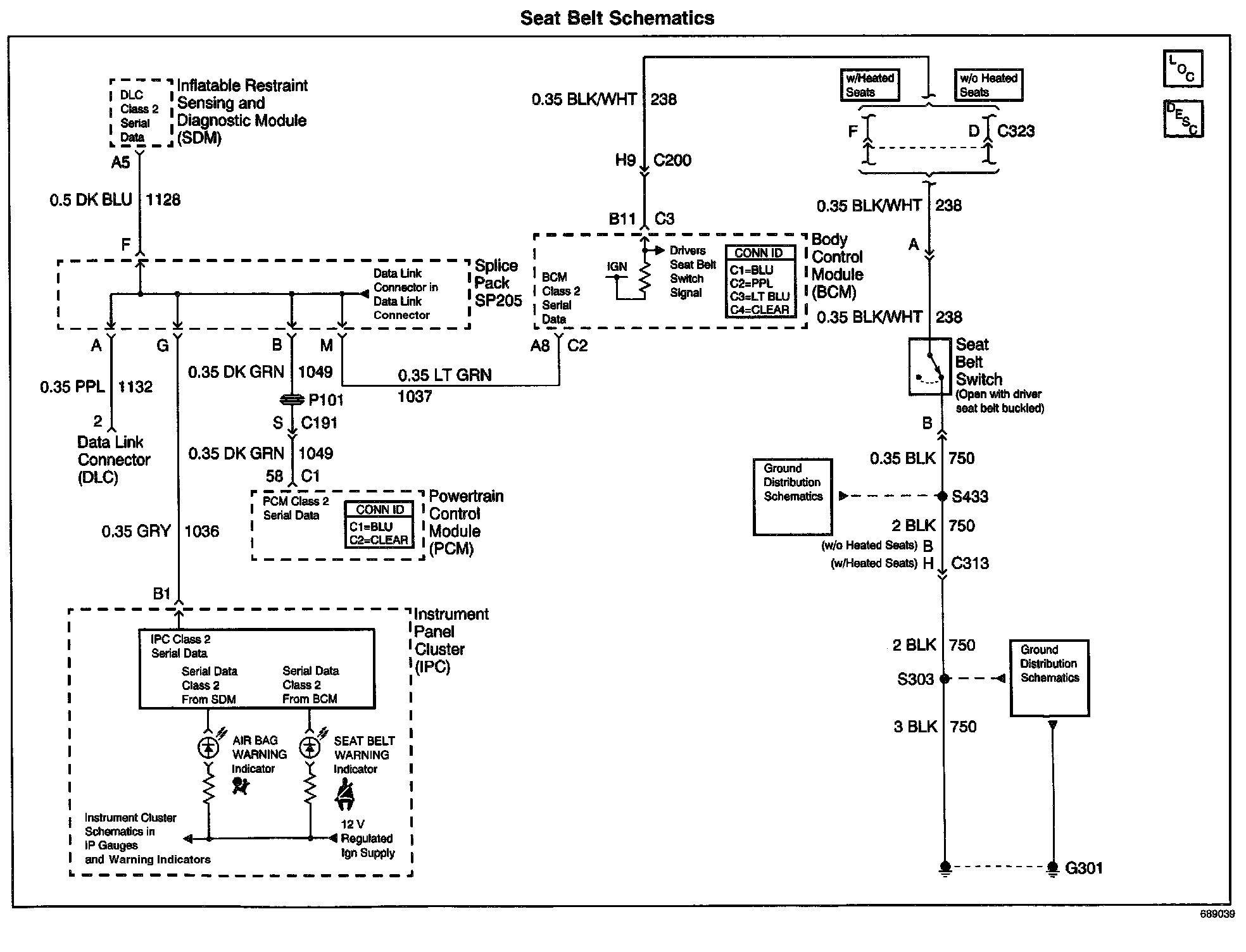

Seat Belt Schematics:

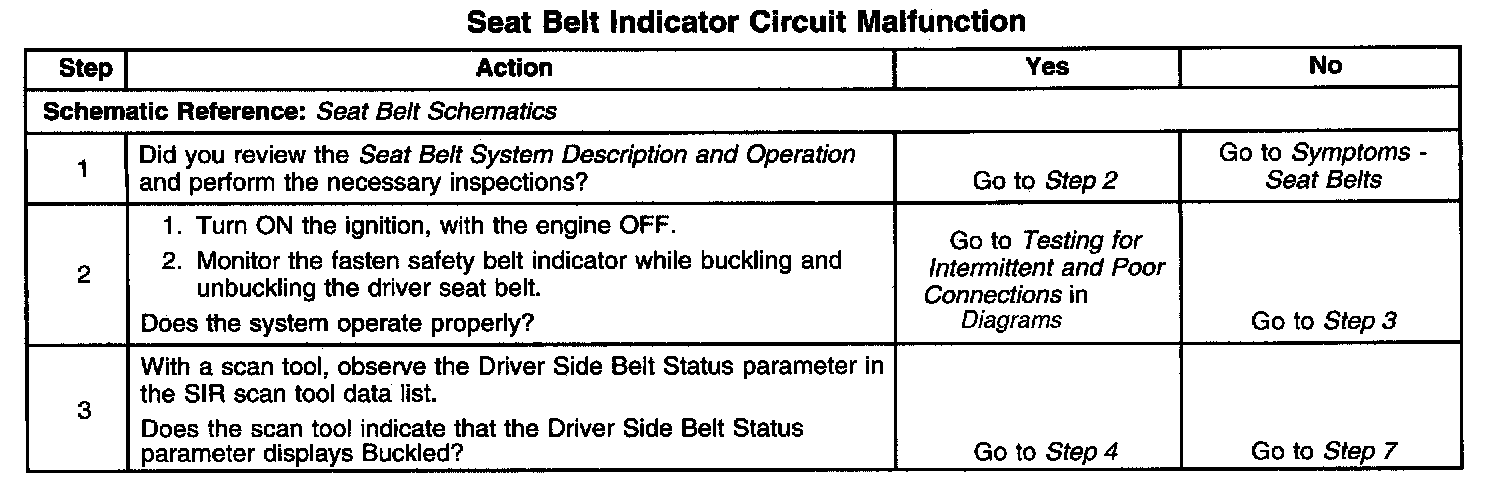

Steps 1-3:

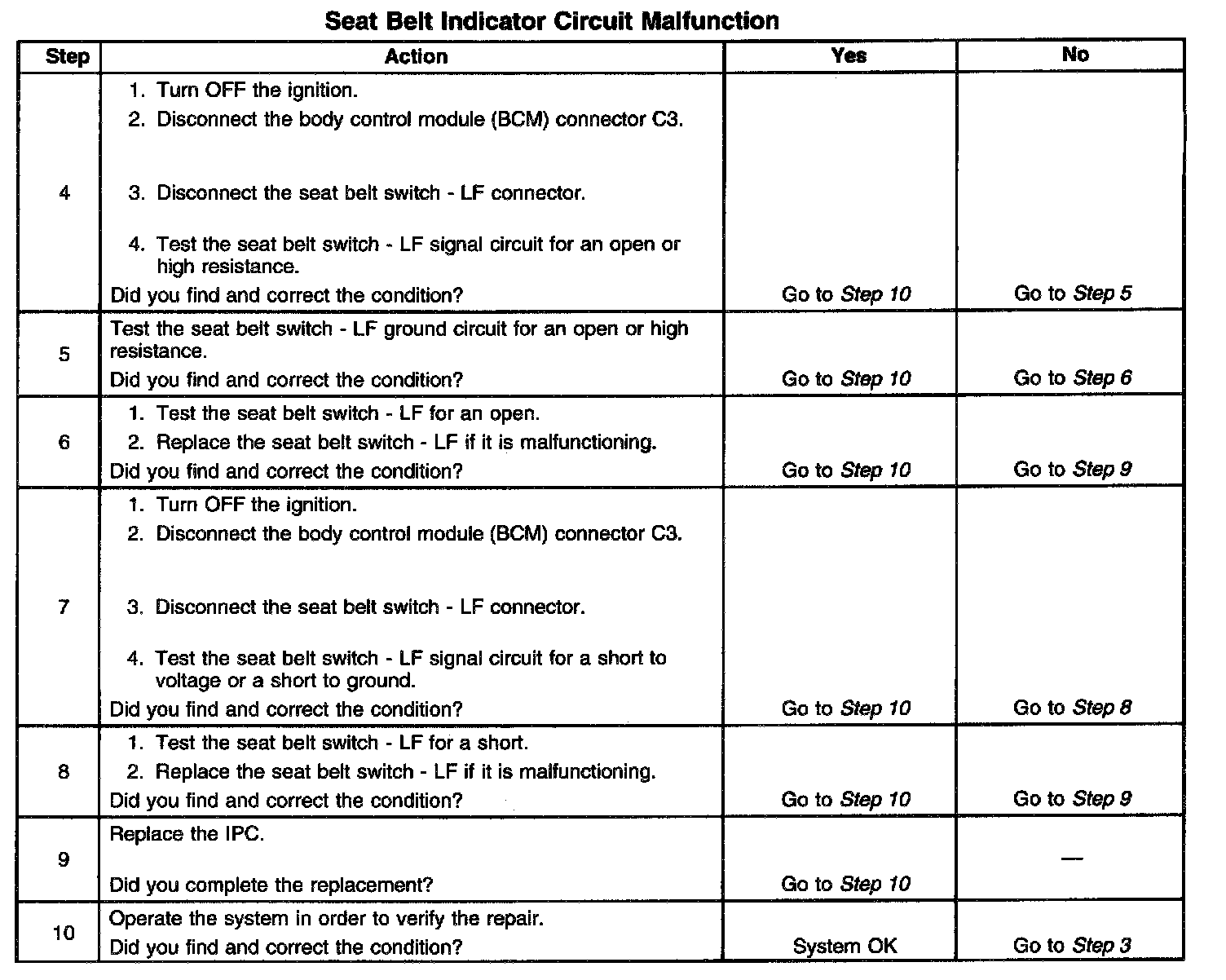

Steps 4-10:
