Child Seat Tether Attachment: Service and Repair

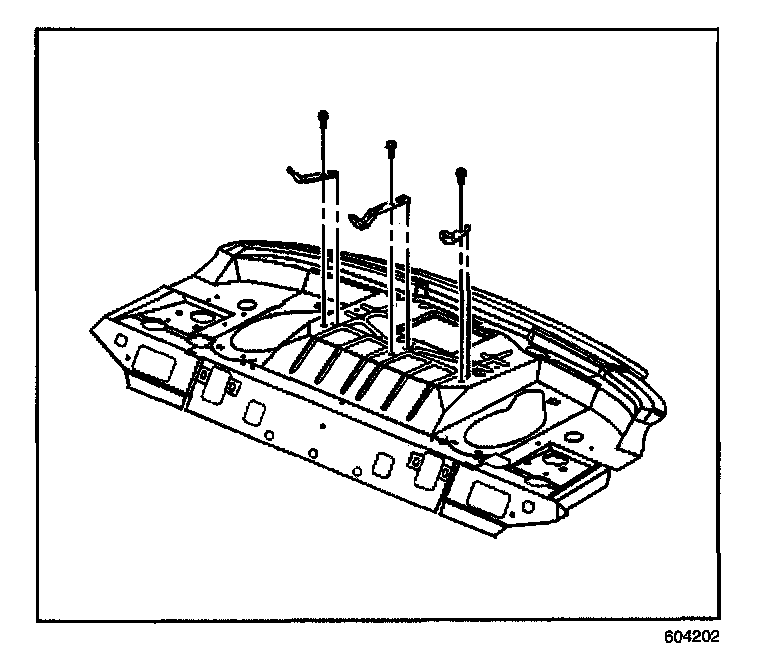

CHILD RESTRAINT TETHER ANCHOR REPLACEMENTREMOVAL PROCEDURE
1. Remove the rear shelf trim panel.
2. Remove the child seat tether bracket to rear shelf bolts.
3. Turn the child seat tether brackets 90 degrees.
4. Lift the child seat tether brackets to remove from the rear shelf.
INSTALLATION PROCEDURE
1. Install the child seat tether brackets to the slots in the rear shelf.
2. Turn the child seat tether brackets 90 degrees to align the child seat tether bracket to rear shelf bolt holes.
NOTE: Refer to Fastener Notice in Service Precautions.
3. Install the child seat tether bracket to rear shelf bolts.
Tighten
Tighten the child seat tether bracket to rear shelf bolts to 20 N.m (15 lb ft).
4. Install the rear shelf trim panel.
