Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Air Bag
>>
Diagrams
>>
Connector Views
Connector Views

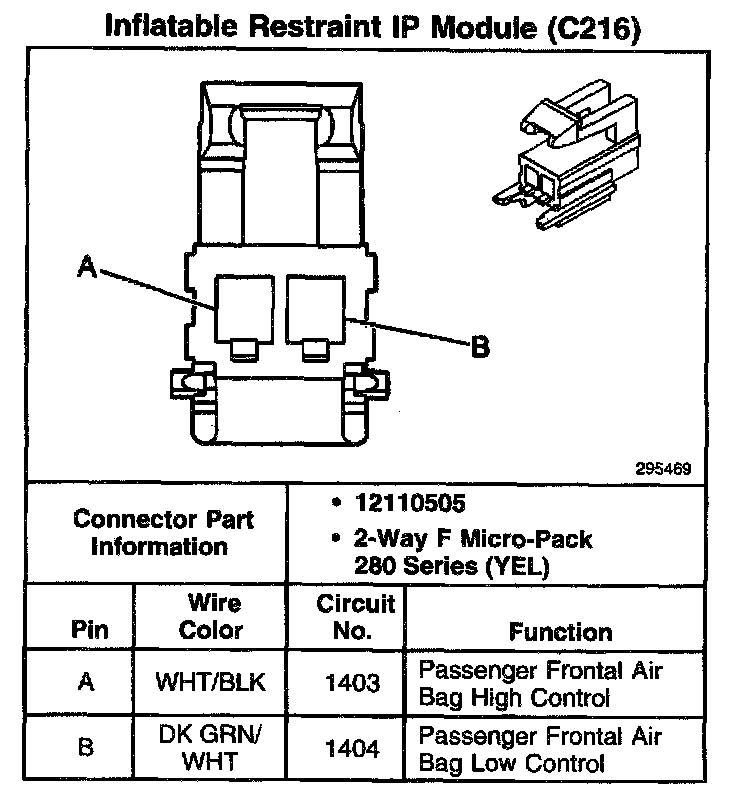

Inflatable Restraint IP Module (C216):
