EVAP Hoses/Pipes Replacement - Engine/Chassis

REMOVAL PROCEDURE

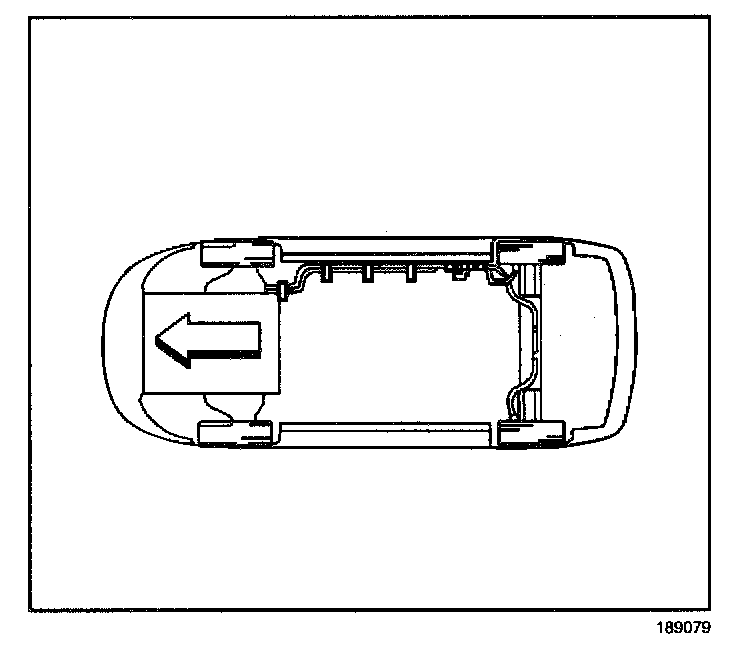

1. Remove the fuel hose/pipe bundle.
2. Remove the EVAP purge pipe from the fuel bundle.

INSTALLATION PROCEDURE

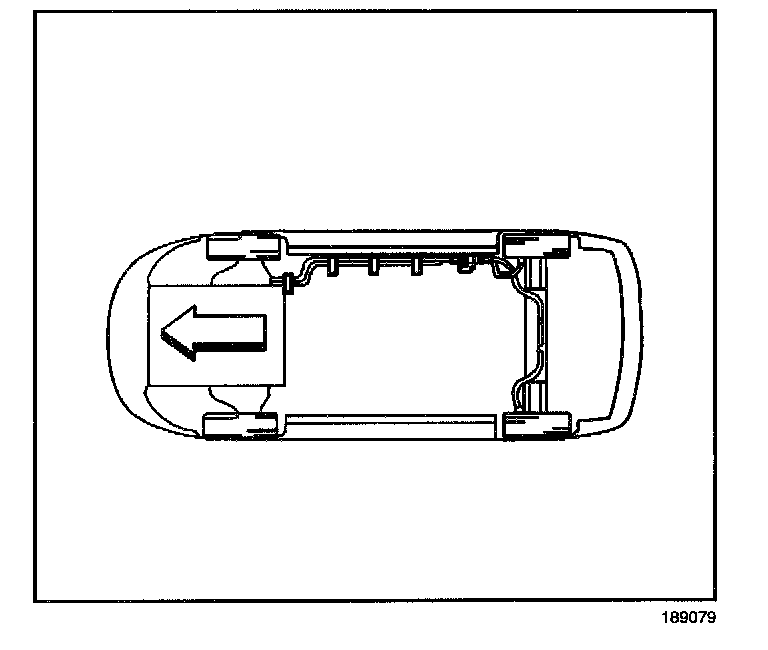

1. Install the EVAP purge pipe into the fuel bundle.
2. Install the fuel hose/pipe bundle.
