Canister Purge Control Valve: Service and Repair

EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVE REPLACEMENT

REMOVAL PROCEDURE




1. Remove the fuel injector sight shield.

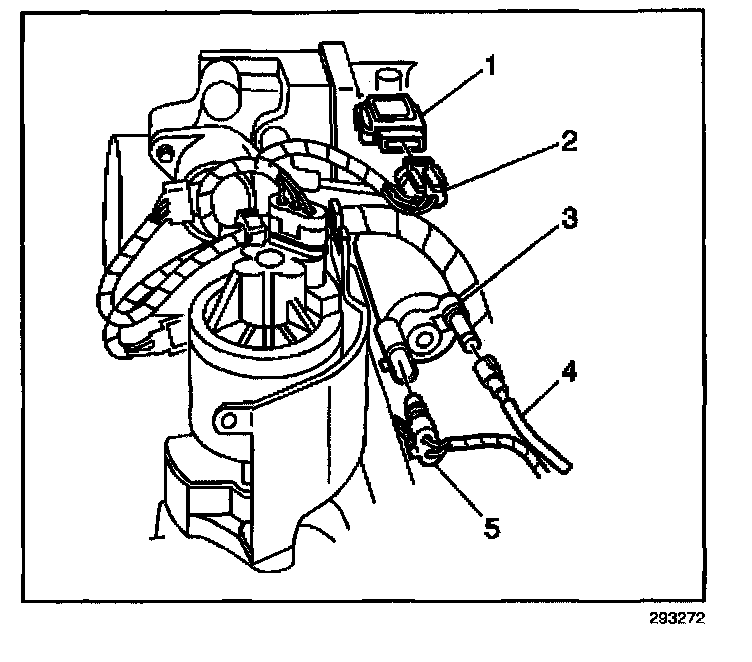

2. Disconnect the EVAP canister purge valve electrical connector (5).
3. Disconnect the EVAP purge pipe (4) from the EVAP canister purge valve.




4. Partially open the throttle.

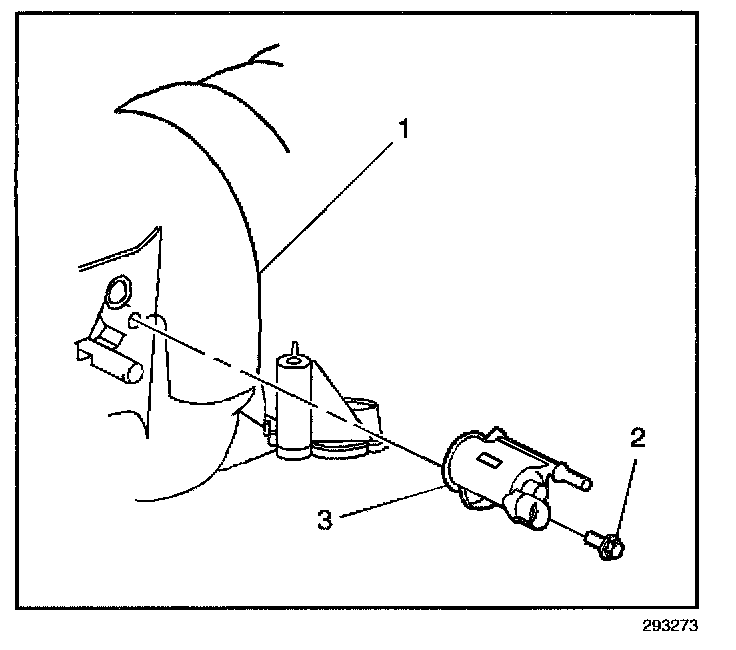

5. Remove the EVAP canister purge valve retaining bolt (2).
6. Remove the EVAP canister purge valve (3) from the intake manifold (1).

INSTALLATION PROCEDURE

IMPORTANT: Be sure to install the new O-ring on the EVAP purge valve.




1. Partially open the throttle.
2. Position the EVAP canister purge valve (3) on the intake manifold (1).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the EVAP canister purge valve retaining bolt (2).

Tighten
Tighten the bolt to 10 N.m (89 lb in).

4. Allow the throttle to close.




5. Connect the EVAP purge pipe (4) to the EVAP canister purge valve.
6. Connect the EVAP canister purge valve electrical connector (5).
7. Install the fuel injector sight shield.
