Pulsed Secondary Air Injection Control Valve: Service and Repair
AIR VACUUM CONTROL SOLENOID VALVE REPLACEMENTREMOVAL PROCEDURE

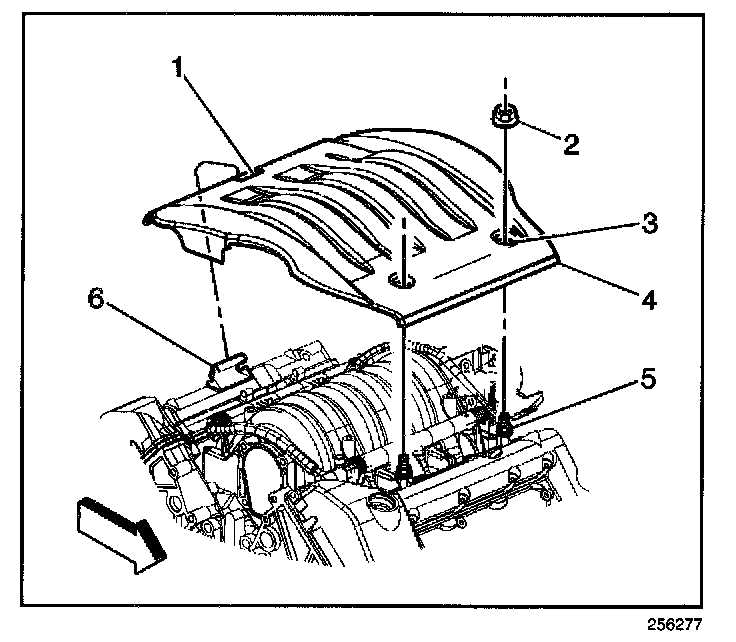

1. Remove the injector sight shield fasteners (2).

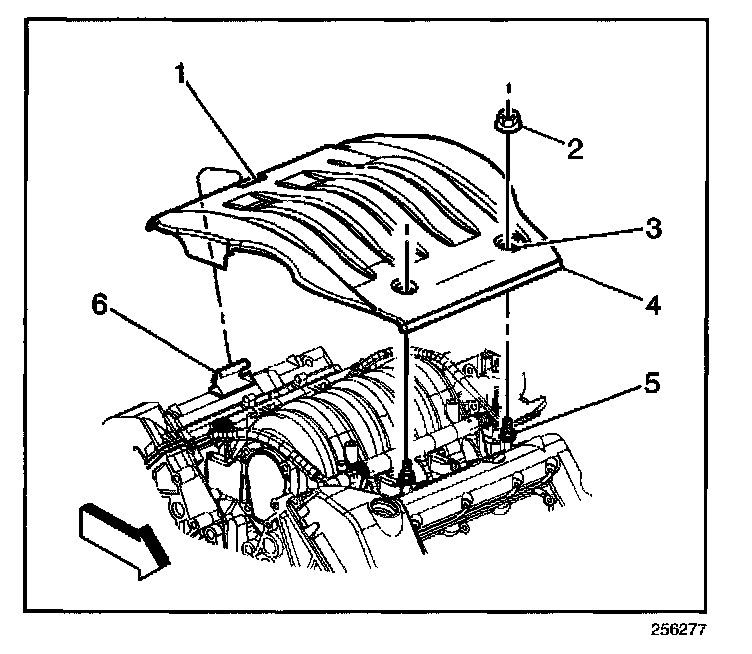

2. Remove the injector sight shield (4) from the vehicle.
3. Disconnect the electrical connector from the solenoid.

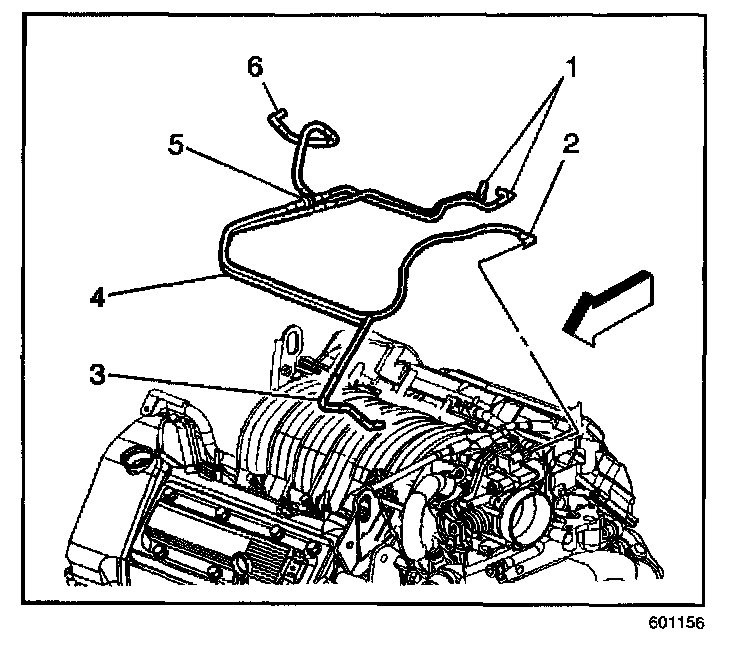

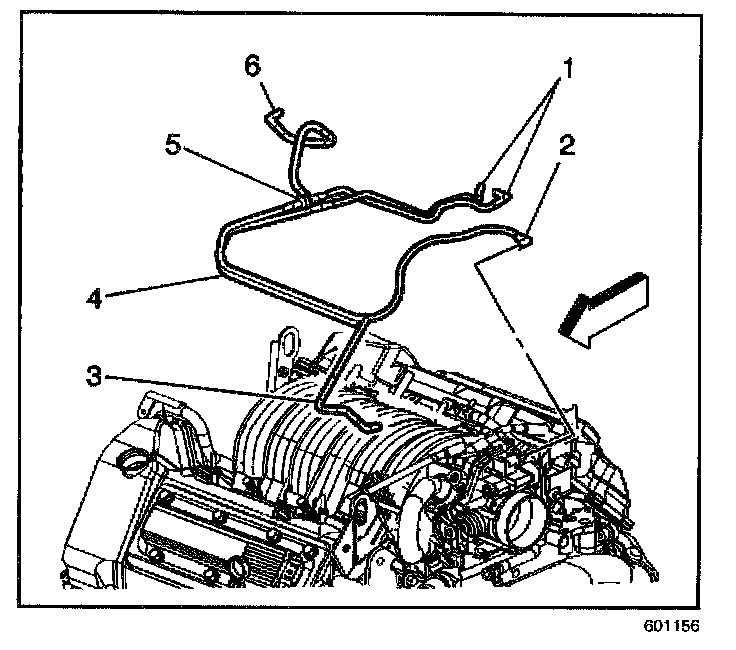

4. Remove the vacuum lines (1) from the solenoid.
5. Remove the solenoid bracket fasteners.
6. Remove the solenoid and bracket assembly from the vehicle.
7. Remove the solenoid to bracket fastener.
8. Remove the solenoid from the bracket.
INSTALLATION PROCEDURE
1. Install the solenoid to the bracket.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the solenoid to bracket fastener.
Tighten
Tighten the fasteners to 10 N.m (89 lb in).
3. Install the bracket and solenoid assembly to the vehicle.
4. Install the bracket and solenoid assembly fasteners.
Tighten
Tighten the fasteners to 10 N.m (89 lb in).
5. Install the vacuum lines to the solenoid.
6. Install the electrical connector to the solenoid.
7. Install the injector sight shield to the vehicle.
8. Install the injector sight shield fasteners.
Tighten
Tighten the fasteners to 3 N.m (27 lb in).
