Secondary Air Injection (AIR) Pump Replacement

REMOVAL PROCEDURE




1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Remove the fasteners from the front portion of the splash shield in the left front wheel well. Refer to Front Fender Liner Replacement in Body Front End.
3. Reposition the splash shield in order to gain access to the pump and bracket assembly.

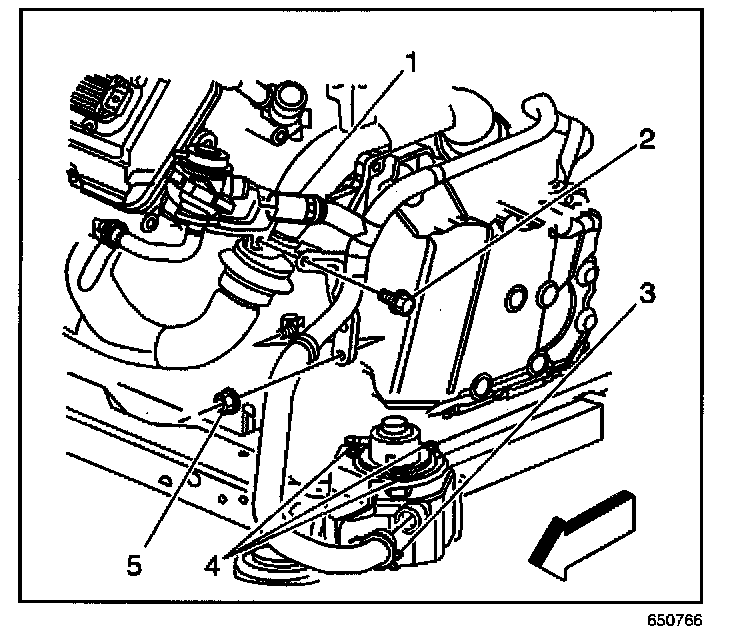

4. Compress the pinch clamp and remove the outlet hose from the pump.
5. Remove the inlet hose from the pump.
6. Remove the pump fasteners.




7. Reposition pump to gain access to the electrical connector.

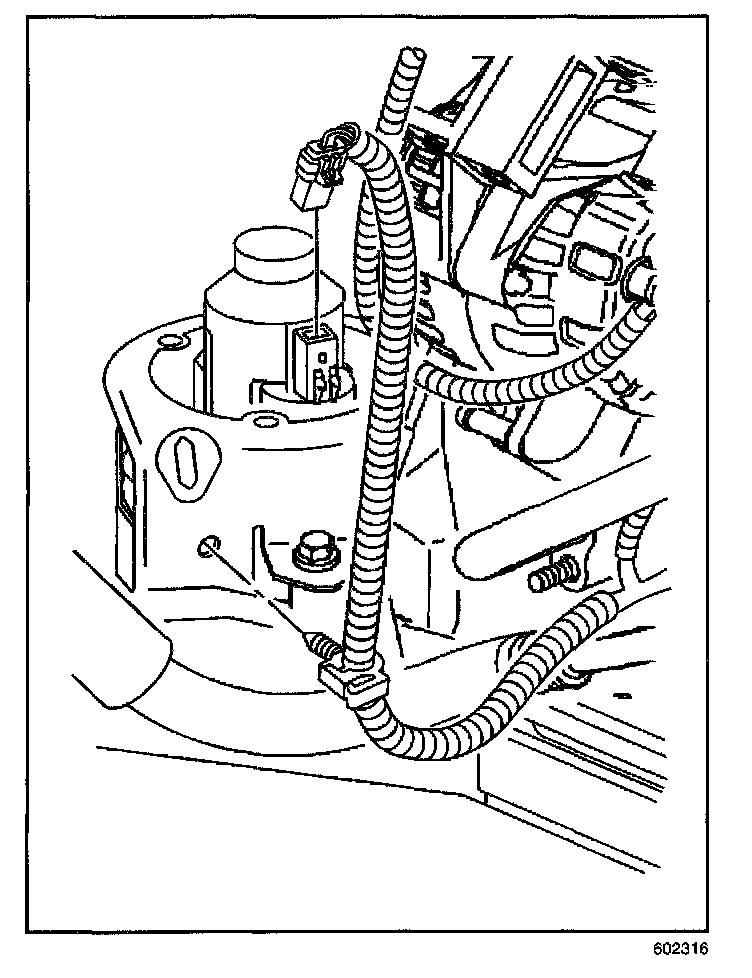

8. Disconnect the pump electrical connector.
9. Remove the pump from the vehicle.
10. Transfer parts as necessary.

INSTALLATION PROCEDURE




1. Connect the pump electrical connector.

NOTE: Refer to Fastener Notice in Service Precautions.




2. Attach the pump to the bracket using the fasteners.

Tighten
Tighten the fasteners to 9 N.m (80 lb in).

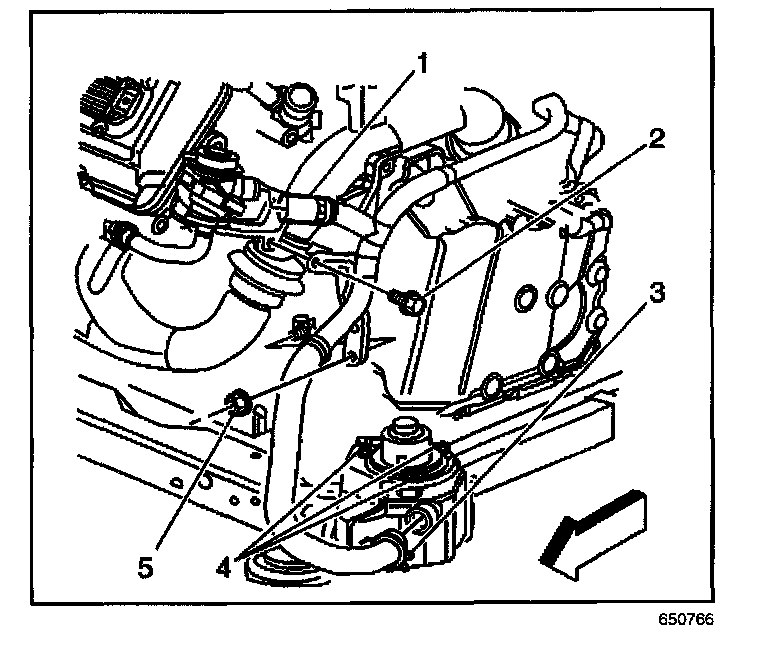

3. Install the inlet hose to the pump.
4. Compress the pinch clamp and install the outlet hose to the pump.
5. Raise the wheel well splash shield into position. Refer to Front Fender Liner Replacement in Body Front End.
6. Install the fasteners to the wheel well splash shield.
7. Lower the vehicle.
