Secondary Air Injection (AIR) Pump Inlet Hose/Duct Replacement

REMOVAL PROCEDURE




1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Remove the fasteners from the front portion of the splash shield in the left front wheel well. Refer to Front Fender Liner Replacement in Body and Accessories.
3. Reposition the splash shield in order to gain access to the pump inlet hose.

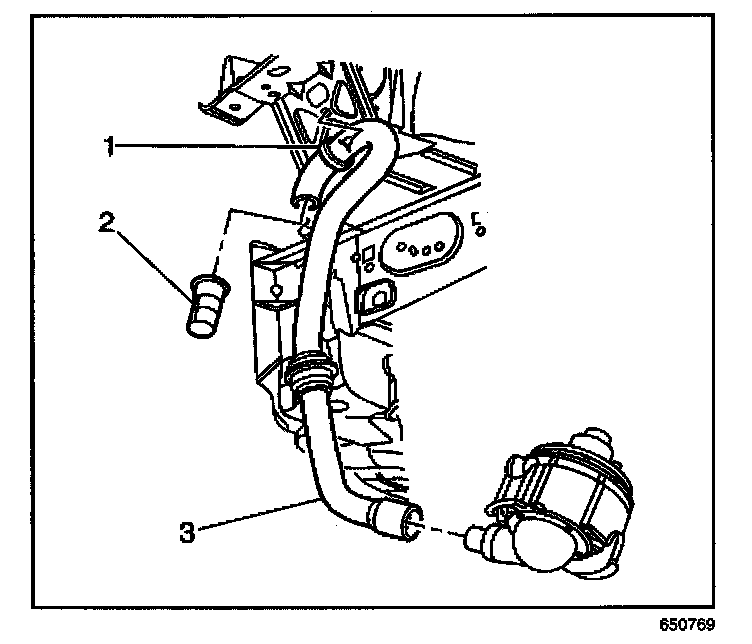

4. Cut band clamp that retains the inlet hose to the chassis.
5. Remove the inlet hose from the pump and from the vehicle
6. Transfer any parts as necessary.

INSTALLATION PROCEDURE




1. Install the inlet hose to the pump.
2. Install the band clamp.
3. Raise the wheel well splash shield into position.
4. Install the fasteners to the wheel well splash shield.
5. Lower the vehicle.
