AIR Shut-Off Valve Outlet Pipe/Hose Replacement - Bank 2

REMOVAL PROCEDURE

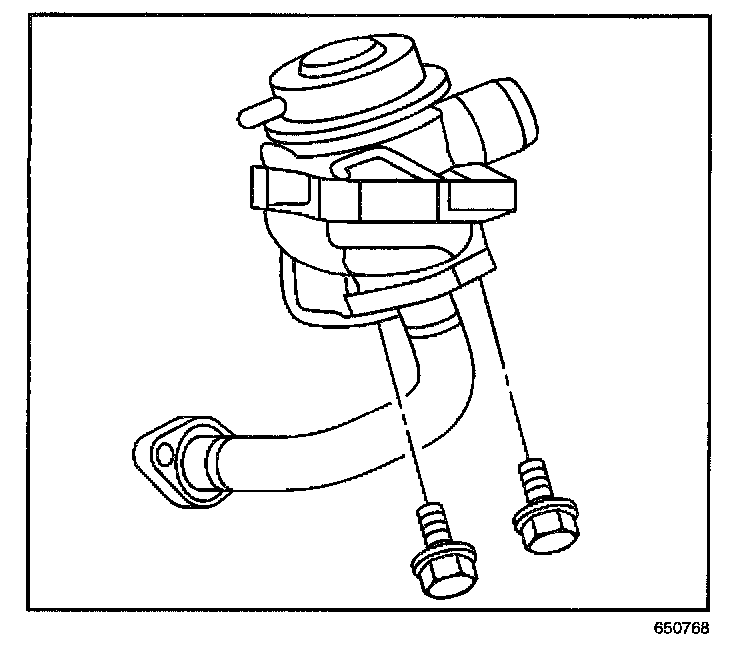

1. Remove the shutoff valve to the outlet pipe fasteners.

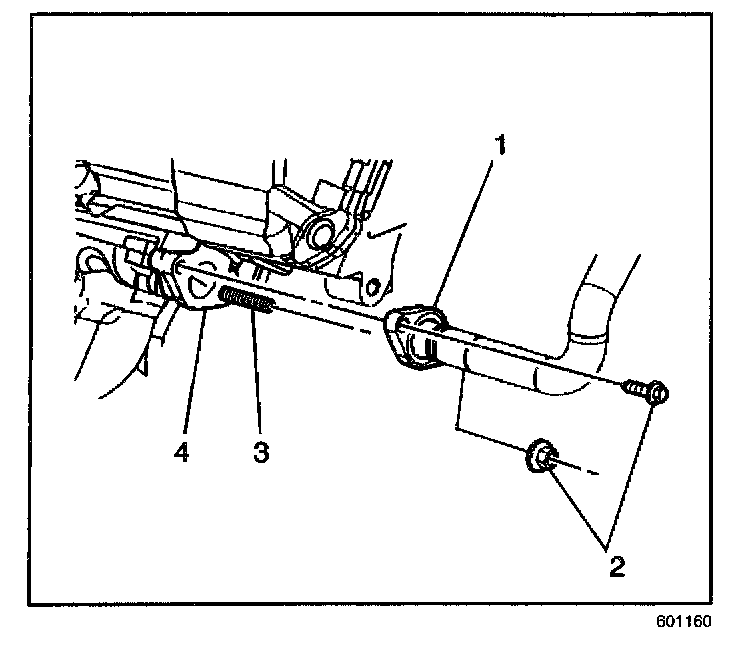

2. Remove the shutoff valve outlet pipe (1) to the AIR manifold fasteners (2).
3. Remove the outlet pipe from the vehicle.
4. Clean the gasket surfaces as necessary.

INSTALLATION PROCEDURE

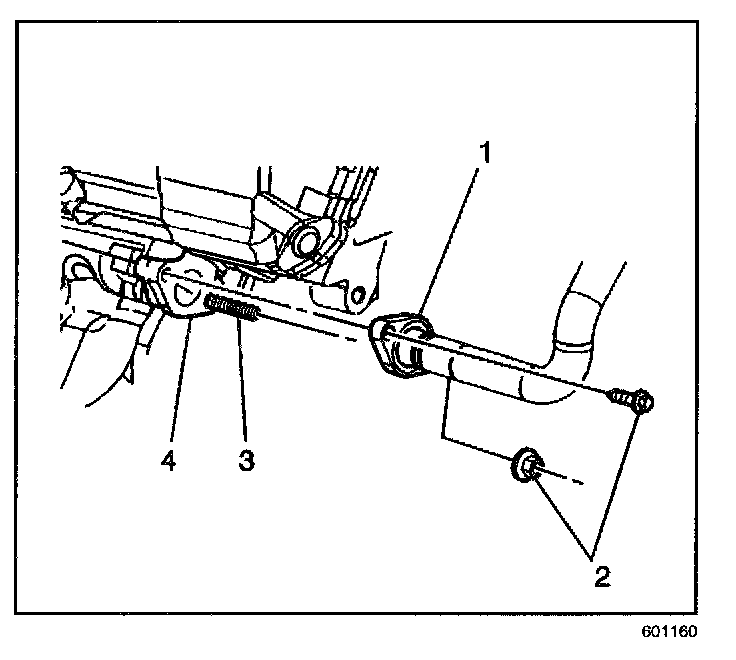

1. Install the outlet pipe (1) to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the outlet pipe to the AIR manifold fasteners (2).

Tighten
Tighten the fasteners to 9 N.m (80 lb in).

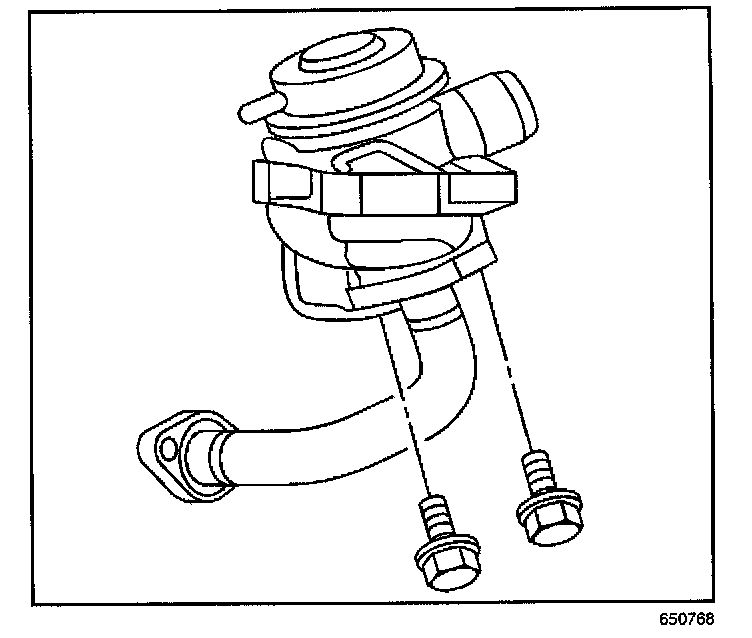

3. Install the shutoff valve to the outlet pipe fasteners.

Tighten
Tighten the fasteners to 9 N.m (80 lb in).
