AIR Shut-Off Valve Outlet Pipe/Hose Replacement - Bank 1

REMOVAL PROCEDURE




1. Remove the power steering hose to the shut-off valve bracket fastener.

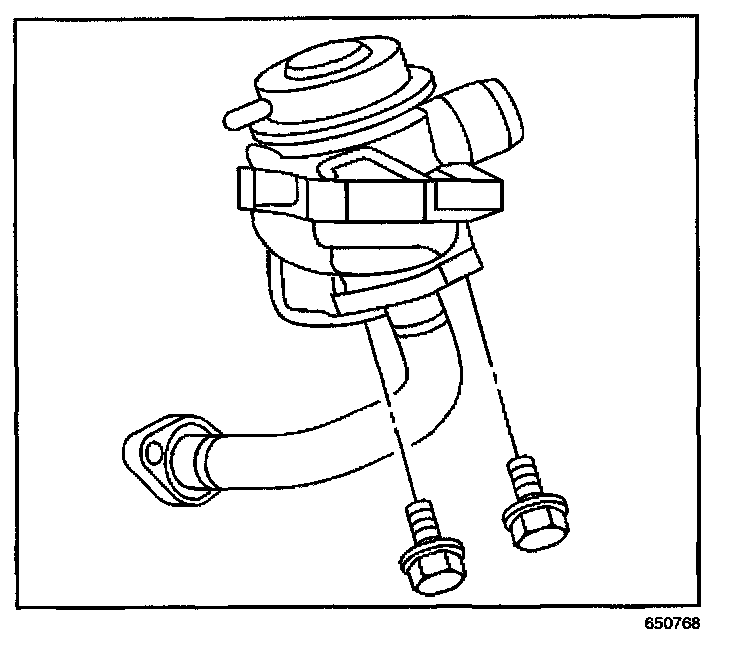

2. Remove the shut-off valve to the outlet pipe fasteners.
3. Raise the vehicle. Refer to Lifting and Jacking the Vehicle.




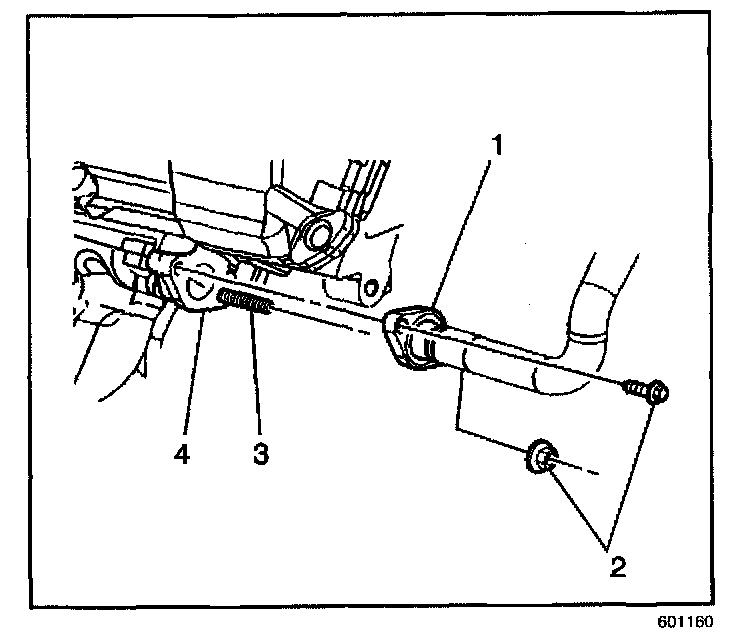

4. Remove the shut off valve outlet pipe (1) to the AIR manifold fasteners (2).
5. Remove the outlet pipe (1) from the vehicle.
6. Clean the gasket surfaces as necessary.

INSTALLATION PROCEDURE




1. Install the outlet pipe (1) to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the outlet pipe (1) to the AIR manifold fasteners (2).

Tighten
Tighten the fasteners to 9 N.m (80 lb in).

3. Lower the vehicle.

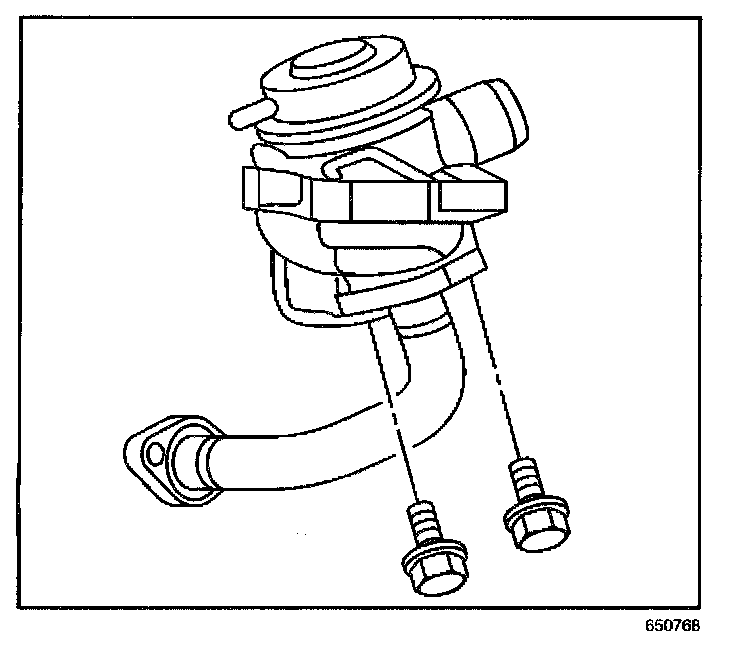

4. Install the shut off valve to outlet pipe fasteners.

Tighten
Tighten the fasteners to 9 N.m (80 lb in).

5. Install the power steering hose to the shut off valve bracket fastener.

Tighten
Tighten the fastener to 9 N.m (80 lb in).
