Home >> Oldsmobile >> 2001 >> Intrigue V6-214 3.5L VIN H SFI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls >> VSS, EBCM and Cruise Modules

VSS, EBCM and Cruise Modules

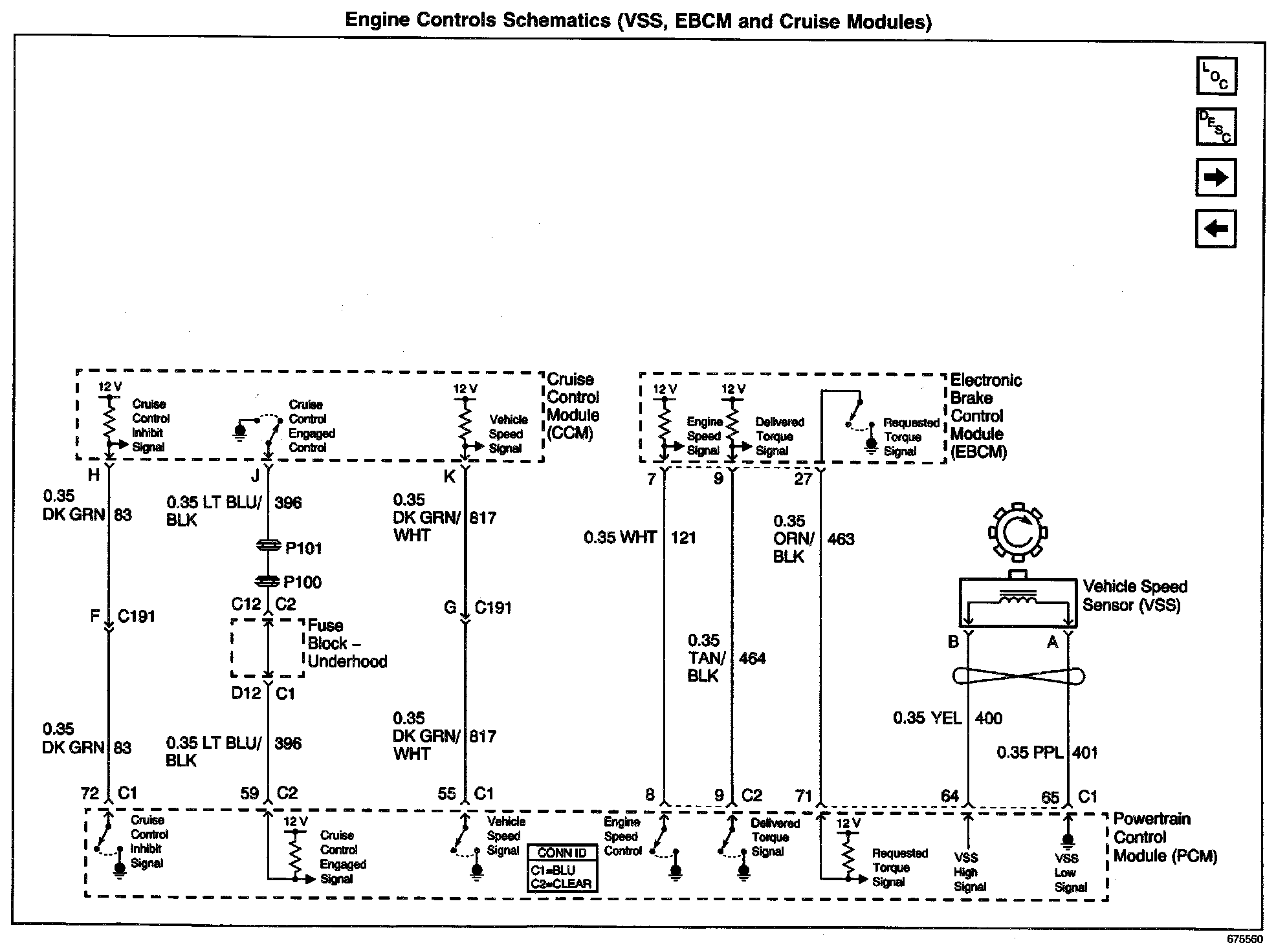

Engine Controls Schematics: VSS, EBCM and Cruise Modules:
