Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>
Ignition Controls
Ignition Controls

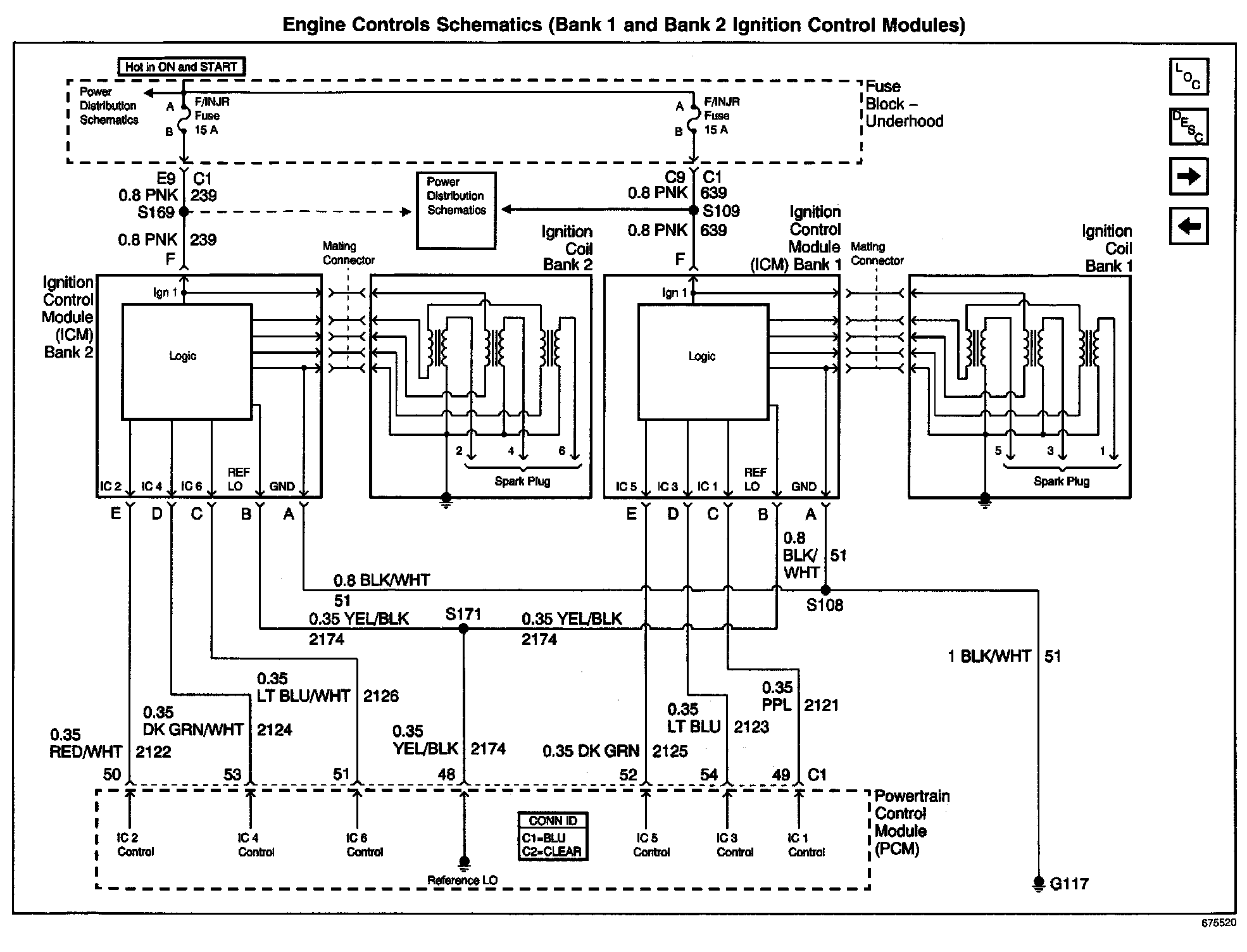

Engine Controls Schematics: Bank 1 and Bank 2 Ignition Control Modules:
