Powers, Grounds and DLC

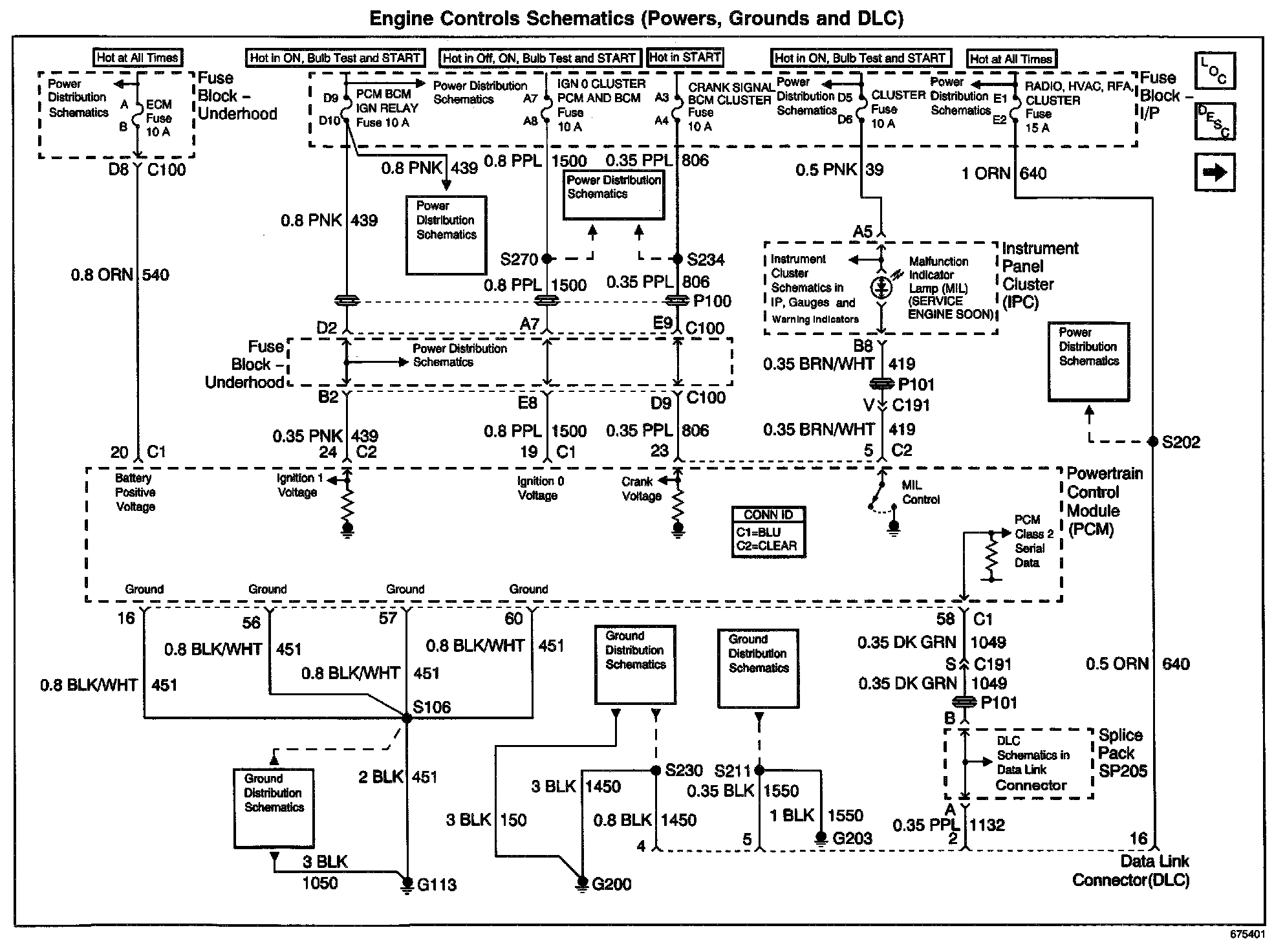

Engine Controls Schematics: Powers Grounds and DLC:

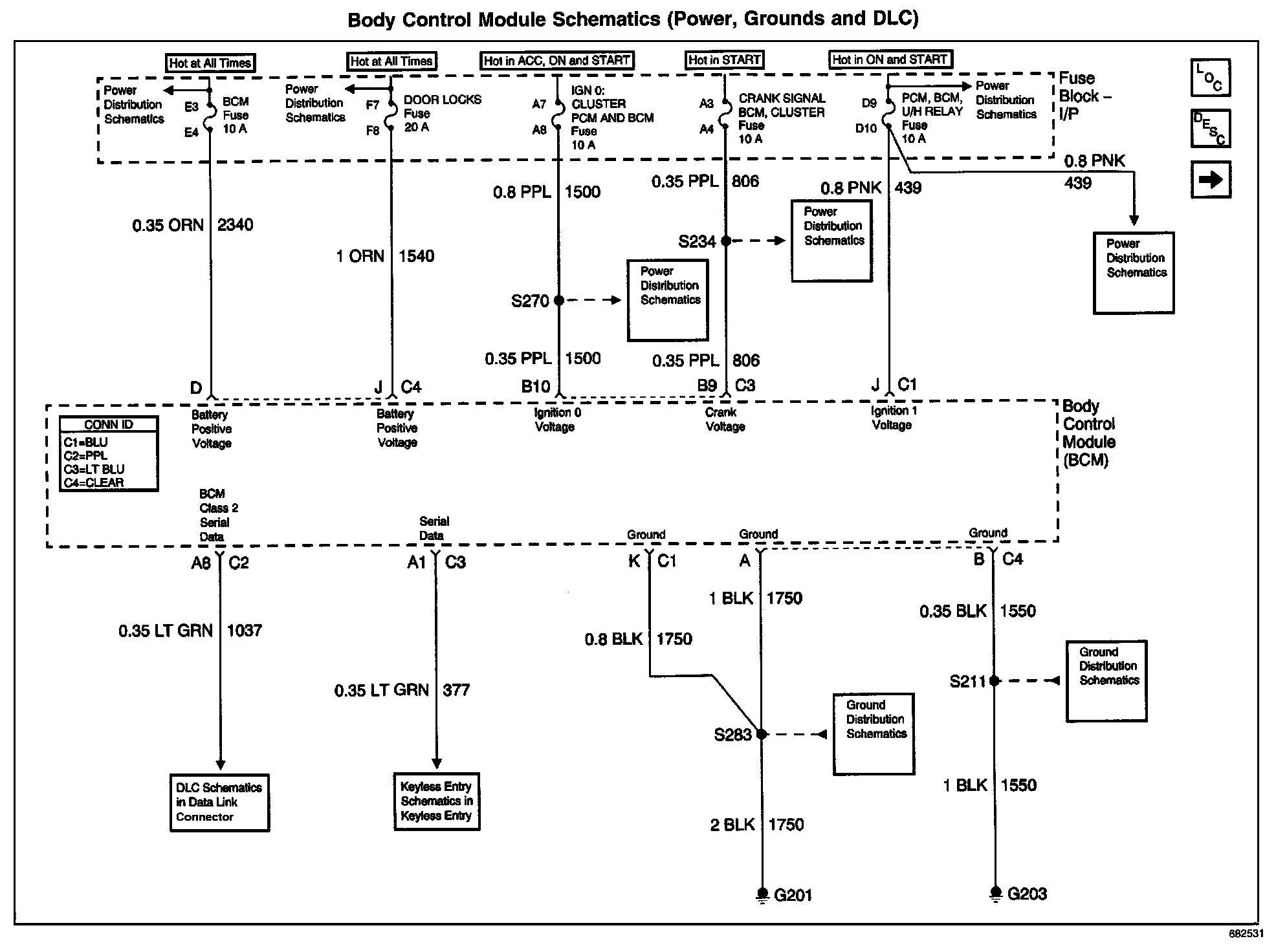

Body Control Module Schematics: Power, Grounds And DLC:
