Fuse Block - Underhood Connector - C3
Fuse Block - Underhood Connector - C3

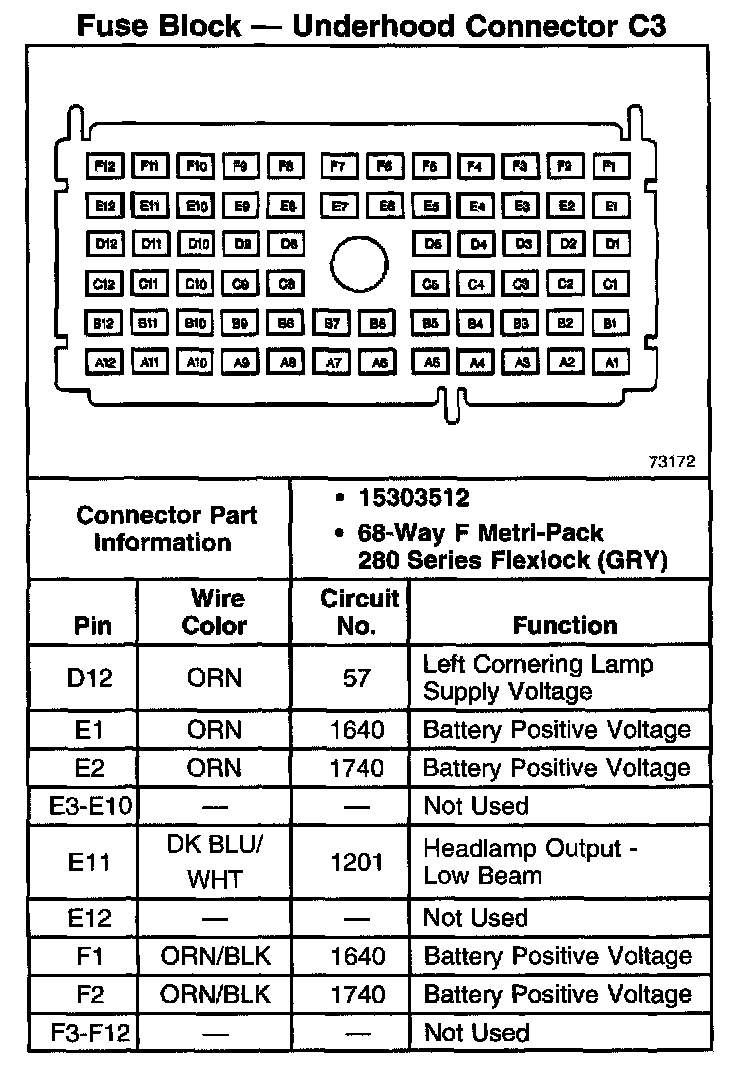

Fuse Block - Underhood Connector C3 (Part 1 Of 2):

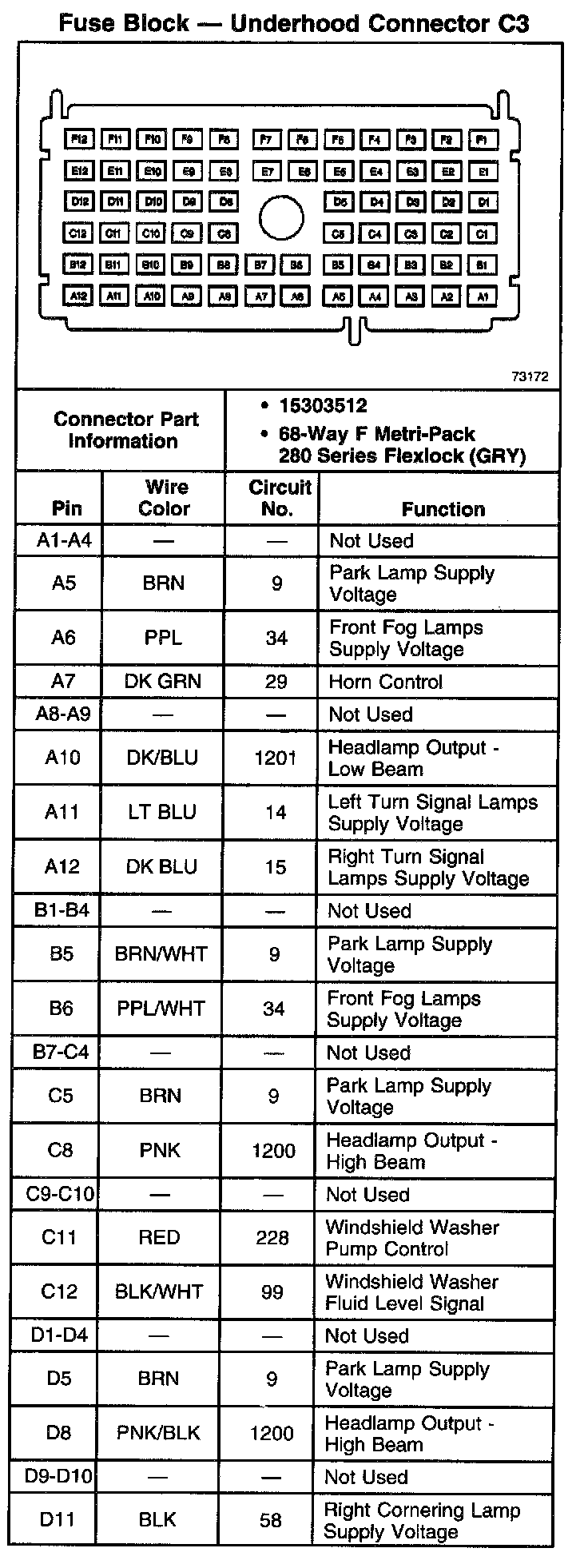

Fuse Block - Underhood Connector C3 (Part 2 Of 2):
