I/P Lamps Power Distrubution
I/P Lamps Power Distrubution

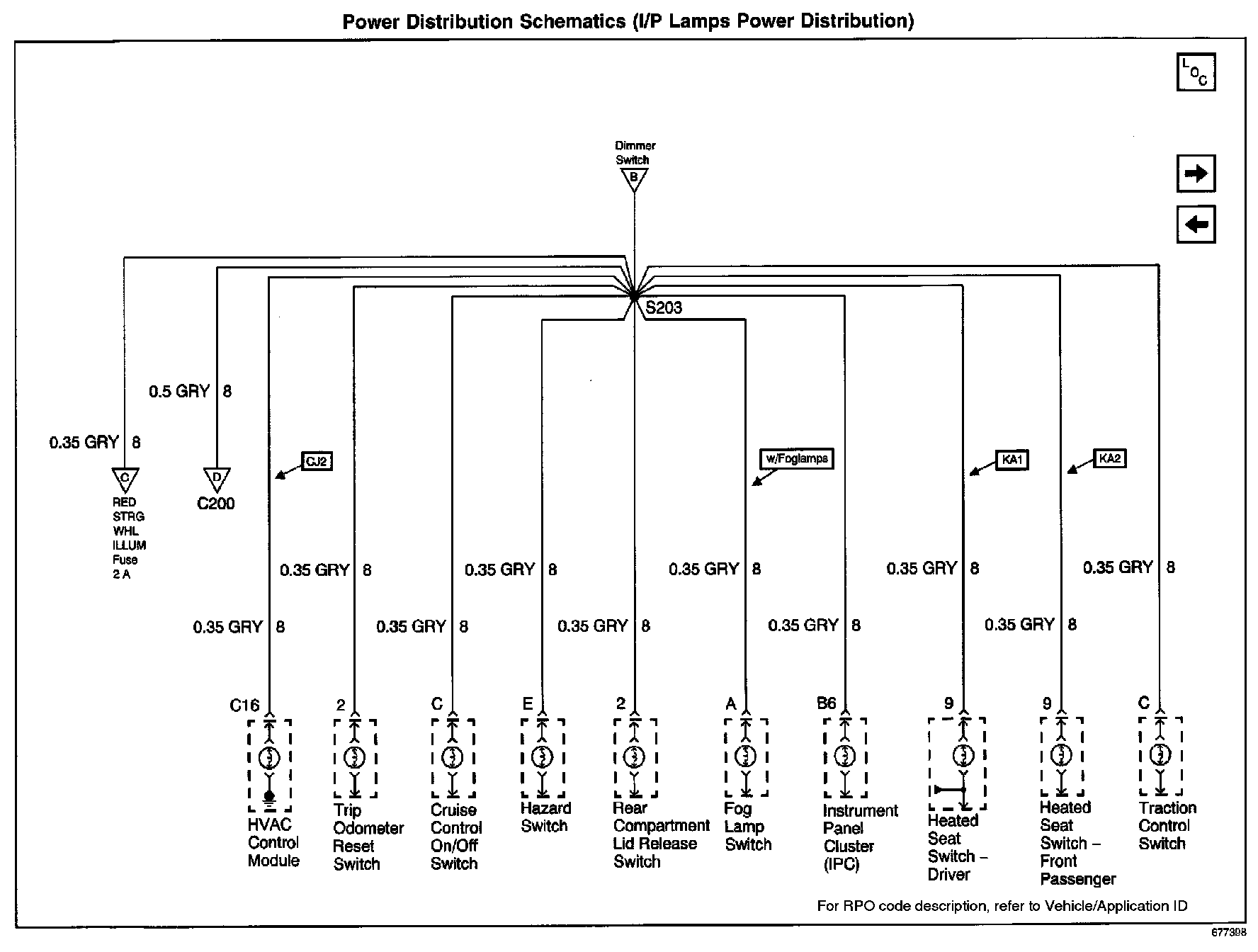

Power Distribution Schematics: I/P Lamps Power Distribution:
