R/CMPT RELEASE
R/CMPT RELEASE

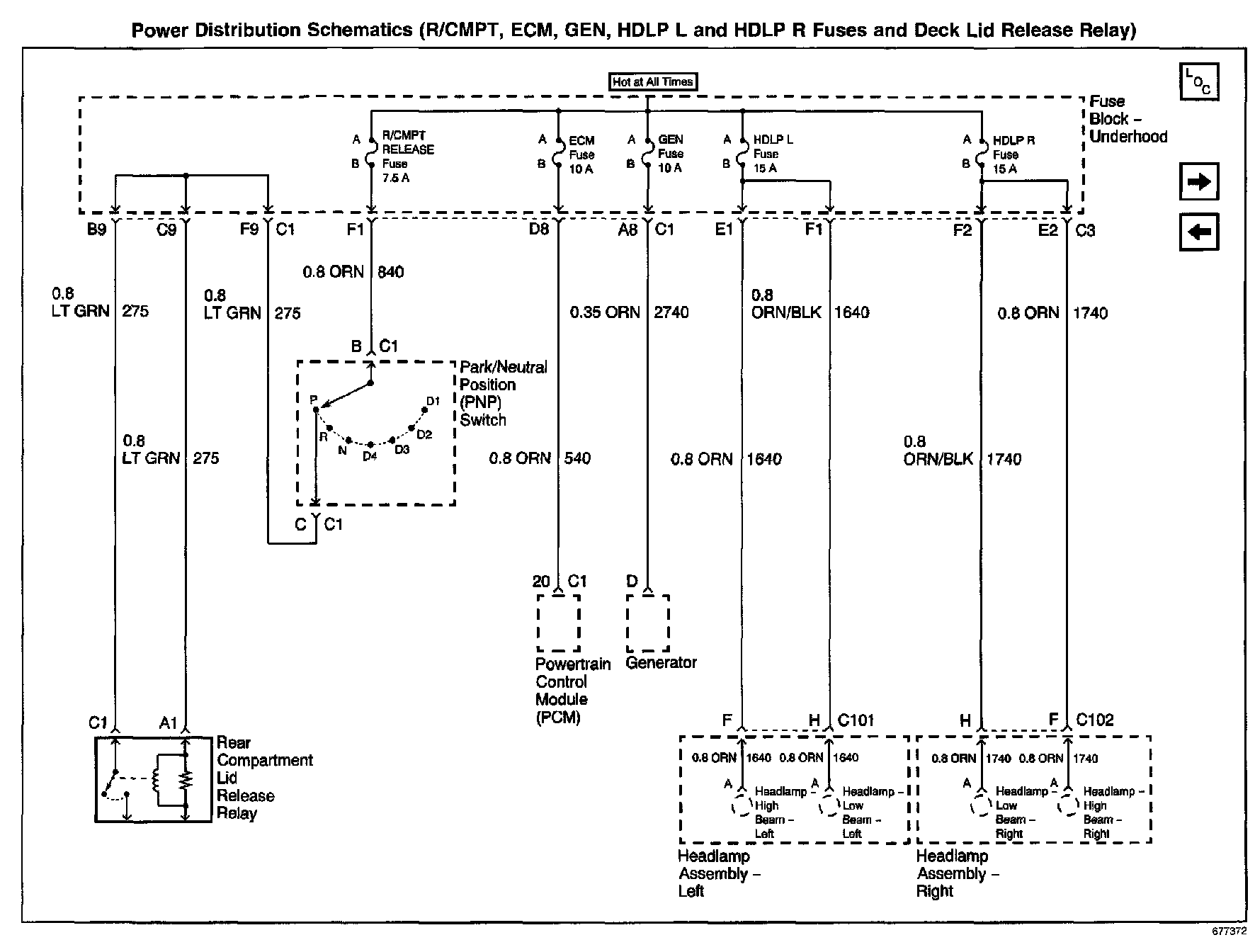

Power Distribution Schematics: R/CMPT, ECM, GEN, HDLP L And HDLP R Fuses And Deck Lid Release Relay:
