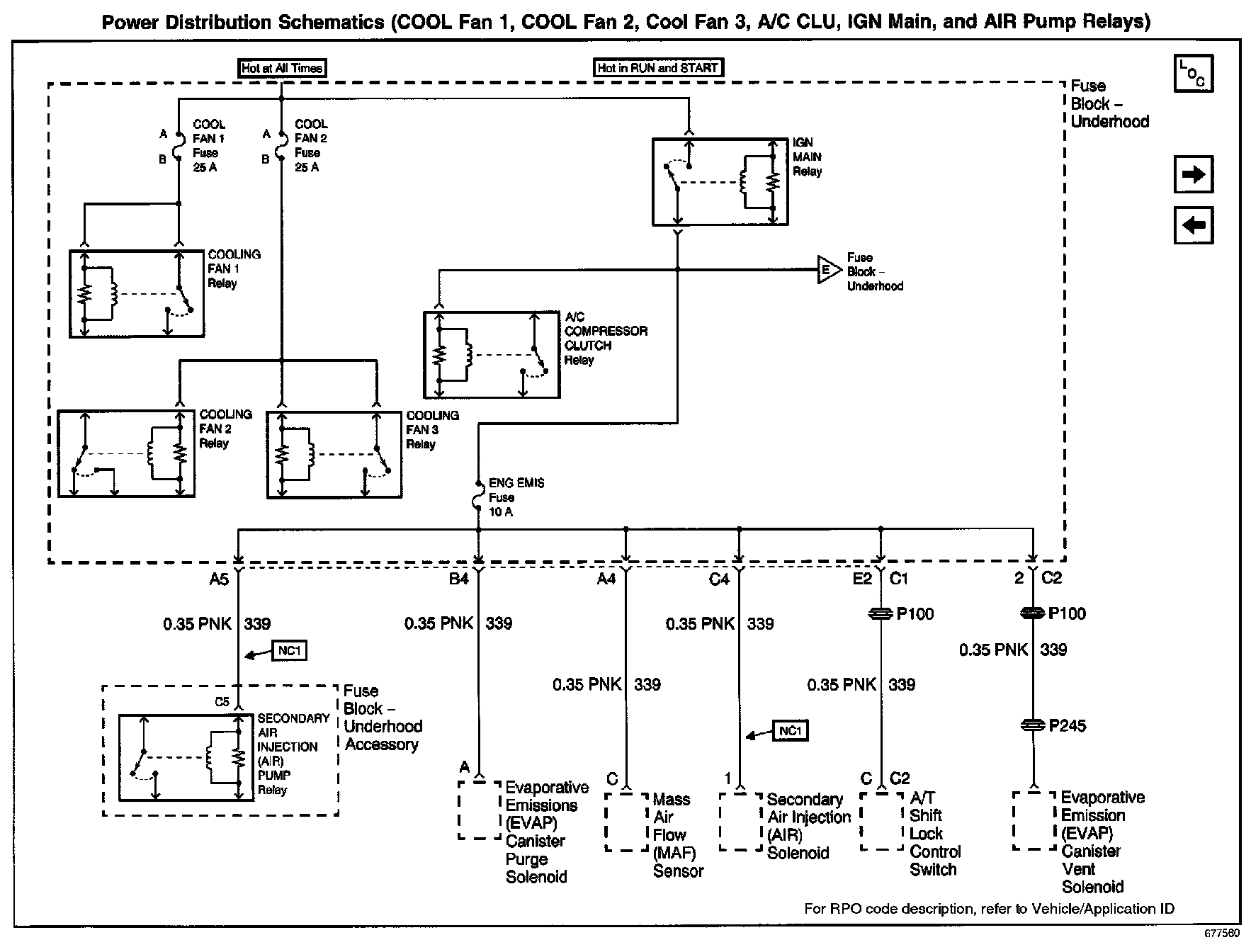

Power Distribution Schematics: COOL Fan 1, COOL Fan 2, Cool Fan 3, A/C CLU, IGN Main, And AIR Pump Relays:
