ABS VALVE

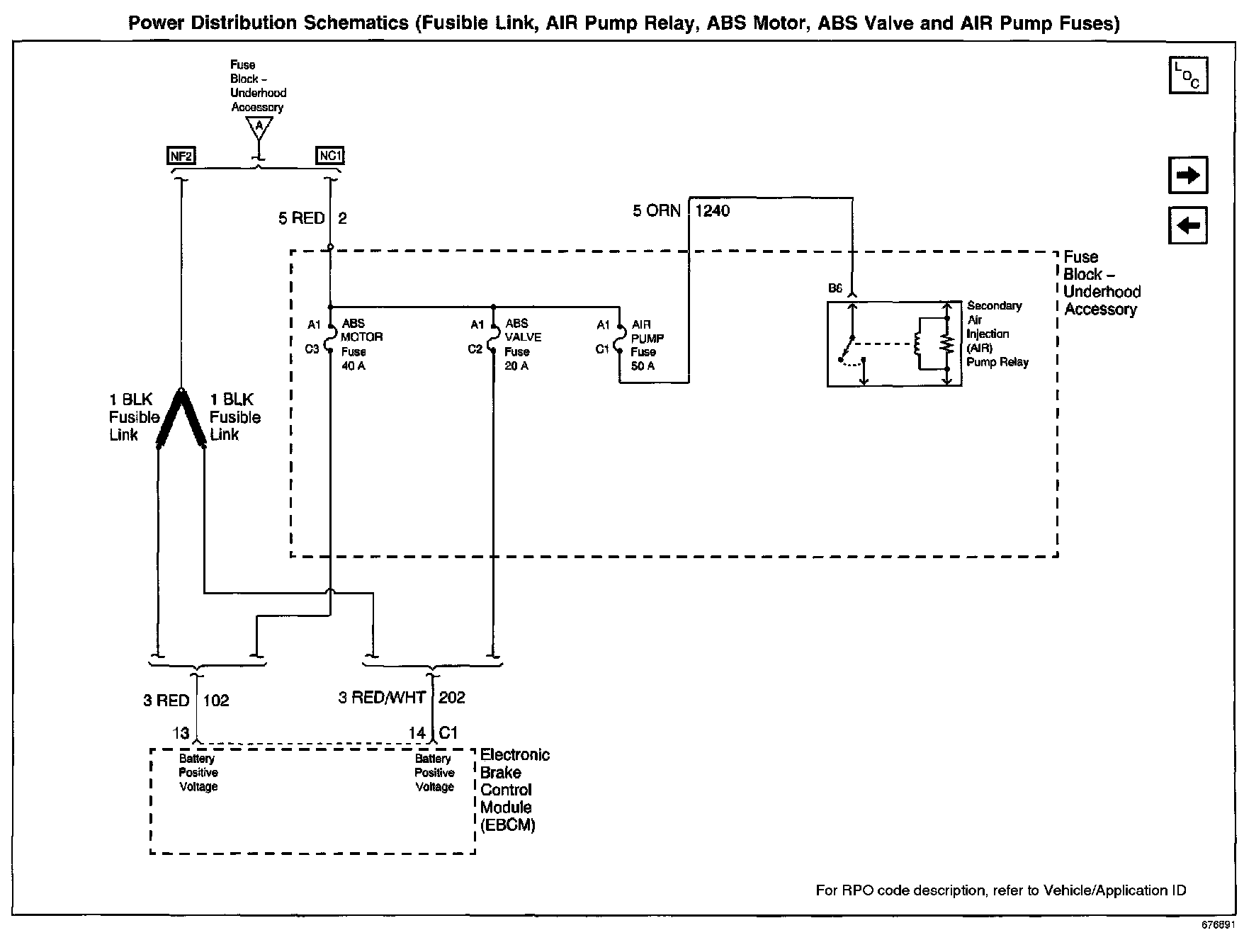

Power Distribution Schematics: Fusible Link, AIR Pump Relay, ABS Motor, ABS Valve And AIR Pump Fuses:



Power Distribution Schematics: COOL Fan 1, COOL Fan 2, Cool Fan 3, A/C CLU, IGN Main, And AIR Pump Relays:
