Fuse Block - I/P

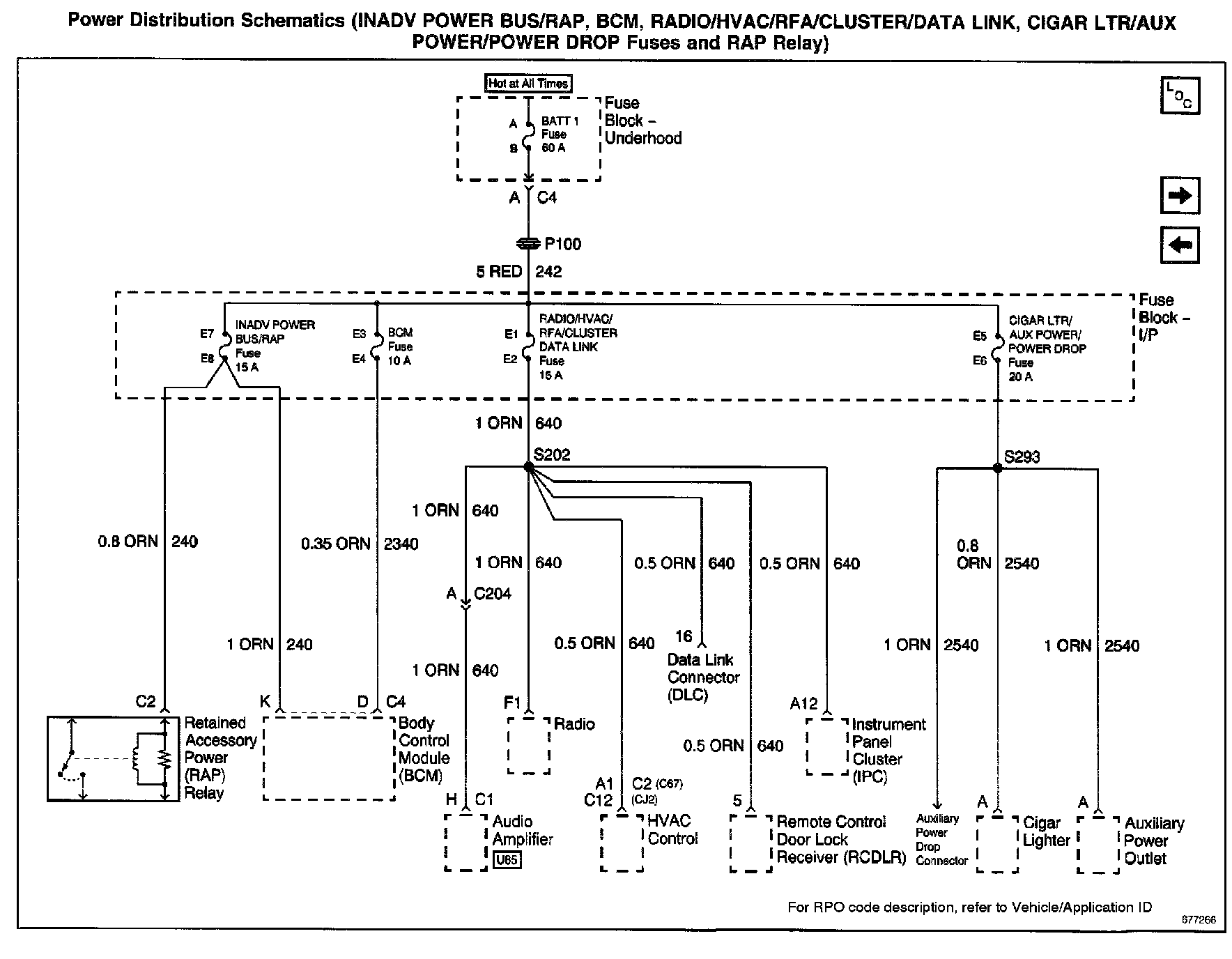

Power Distribution Schematics: INADV POWER BUS/RAP, BCM, RADIO/HVAC/RFA/CLUSTER/DATA LINK, CIGAR LTR/AUX POWER/POWER DROP Fuses And RAP Relay:

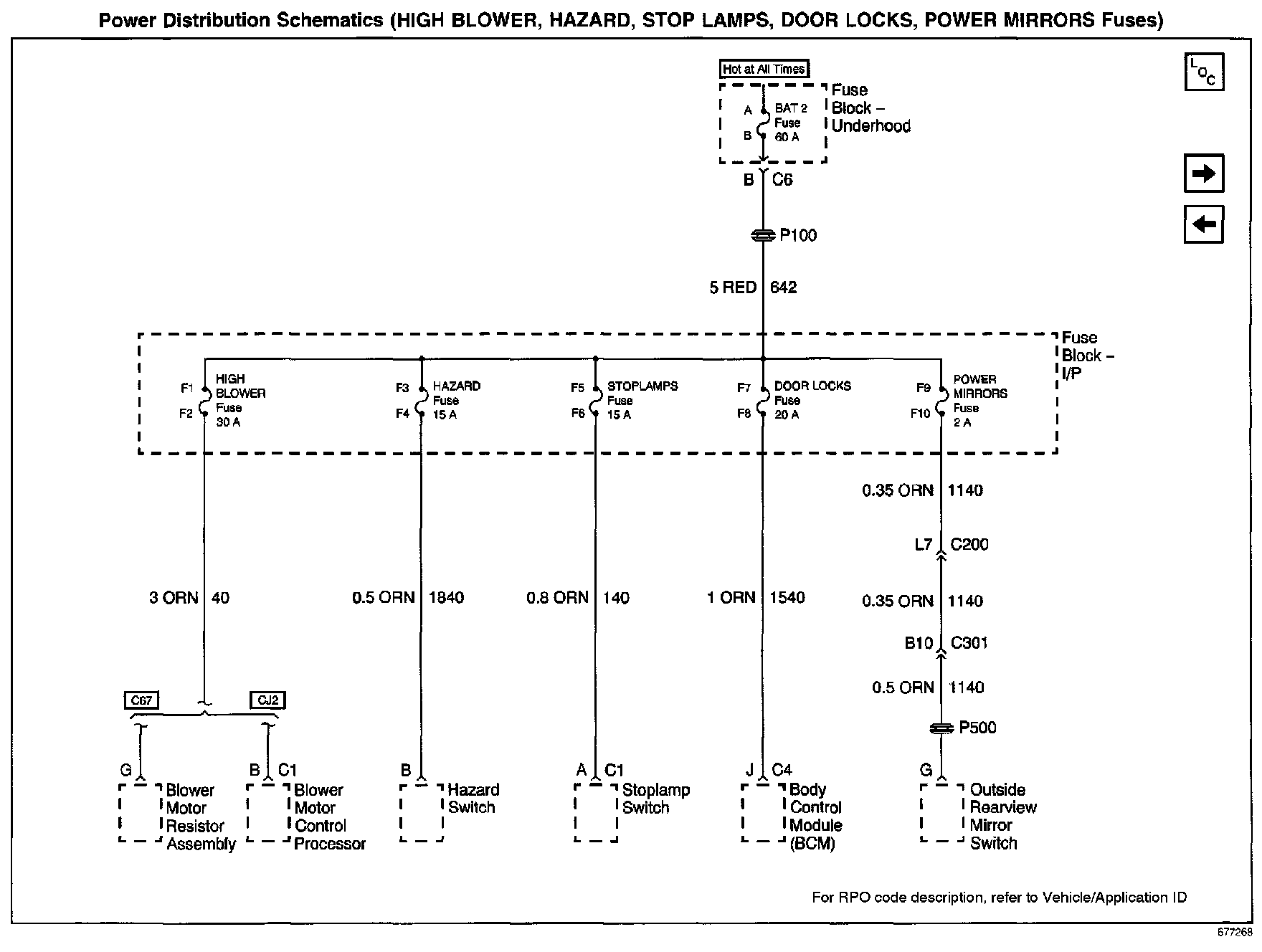

Power Distribution Schematics: HIGH BLOWER, HAZARD, STOP LAMPS, DOOR LOCKS, POWER MIRRORS Fuses:

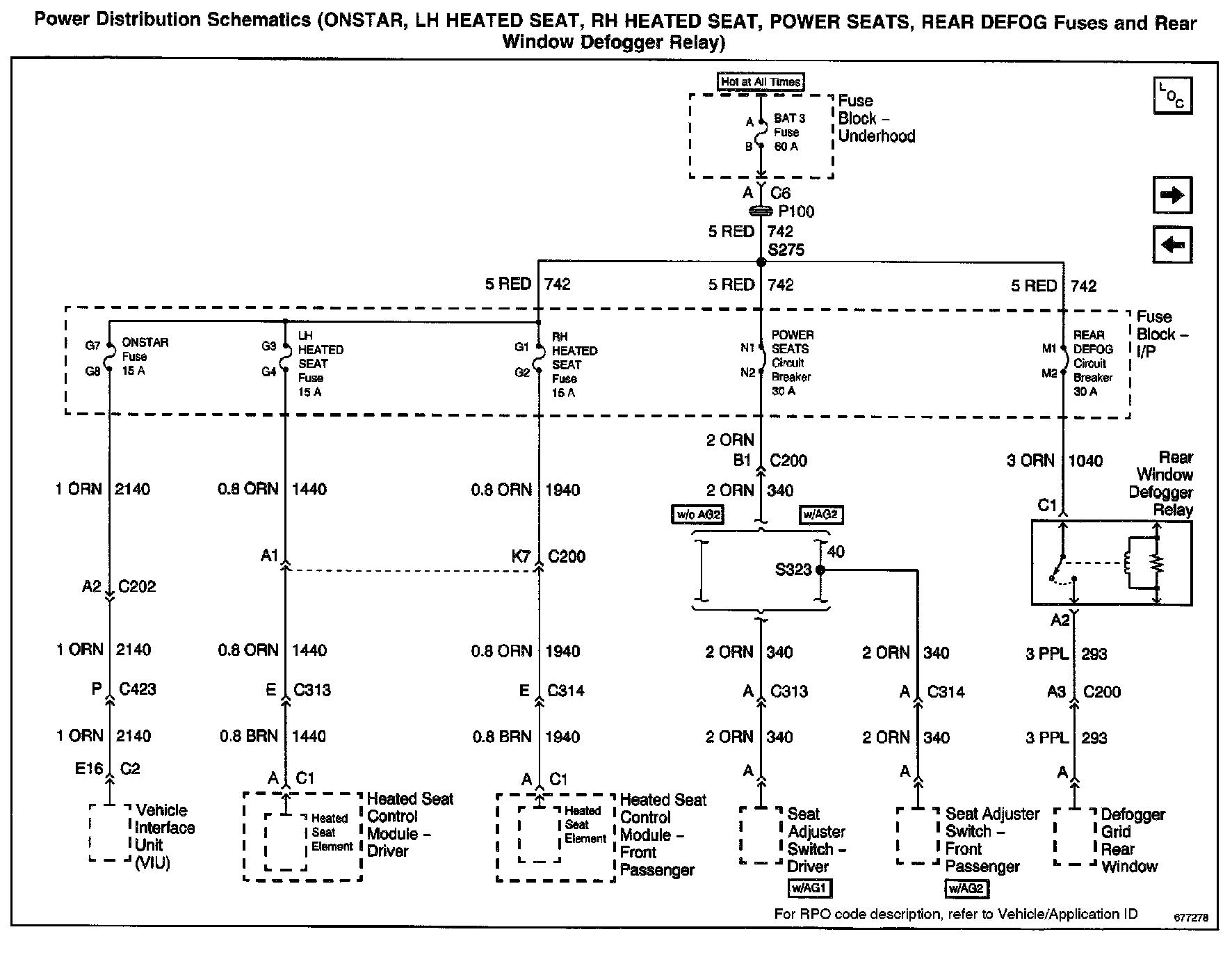

Power Distribution Schematics: ONSTAR, LH HEATED SEAT, RH HEATED SEAT, POWER SEATS, REAR DEFOG Fuses And Rear Window Defogger Relay:

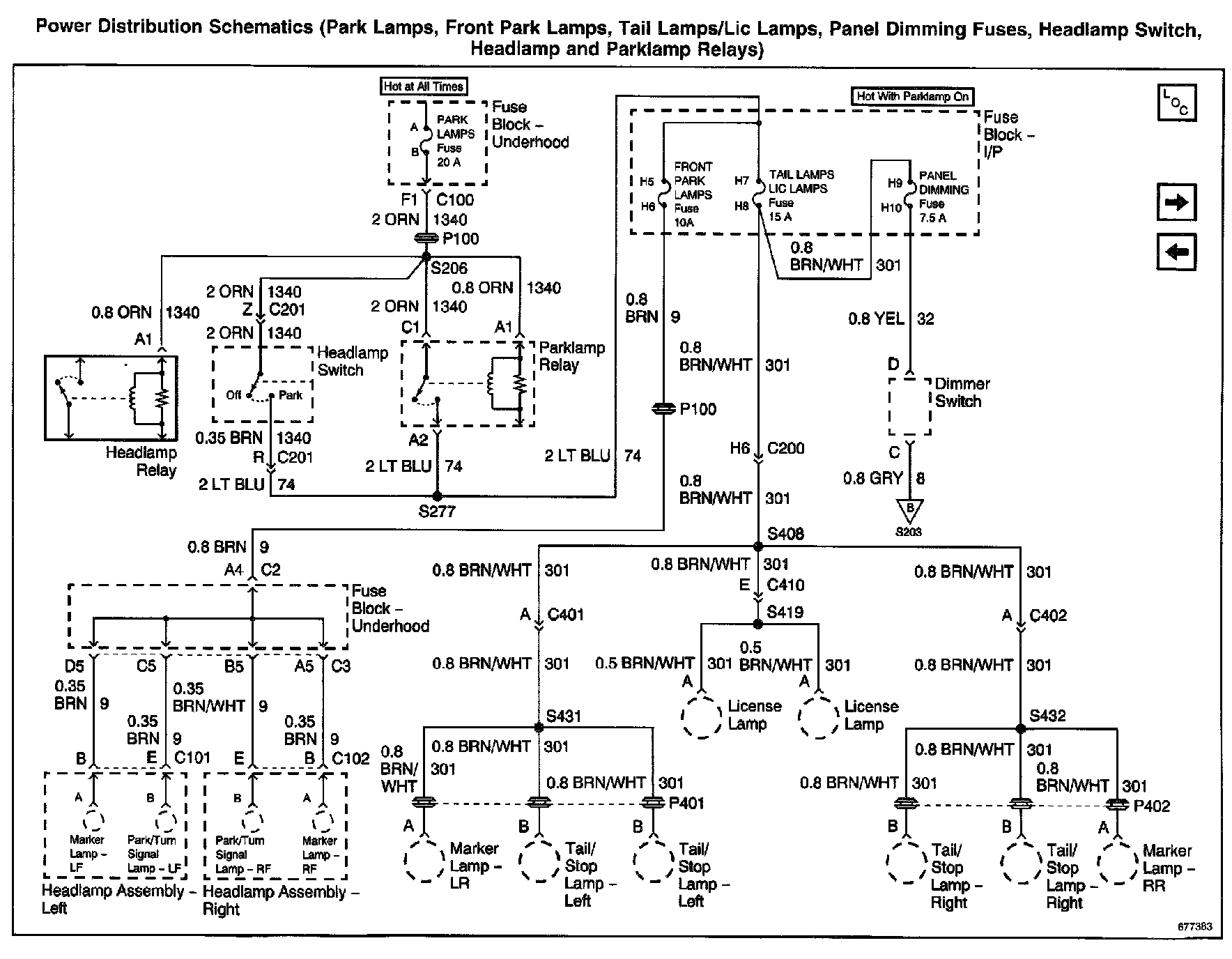

Power Distribution Schematics: Park Lamps, Front Park Lamps, Tail Lamps/Lic Lamps, Panel Dimming Fuses, Headlamp Switch, Headlamp And Parklamp Relays:

Power Distribution Schematics: LH And RH Steering Wheel Controls, LF And RF Window Switches, LF And RF Door Lock Switches And Outside Remote Control Mirror Switch Dimming Circuits:

Power Distribution Schematics: IGN 1, PWR Windows/PWR Sunroof, Radio/Cruise, Power Drop And Wiper Fuses:

Power Distribution Schematics: BTSI, Turn Signals/CORN LPS, Air Bag, Cluster, PCM/BCM/Crank/IGN Fuses:

Power Distribution Schematics: IGN 2, IGN 0/Cluster/PCM/BCM, Crank/Signal/BCM/Cluster Fuses:

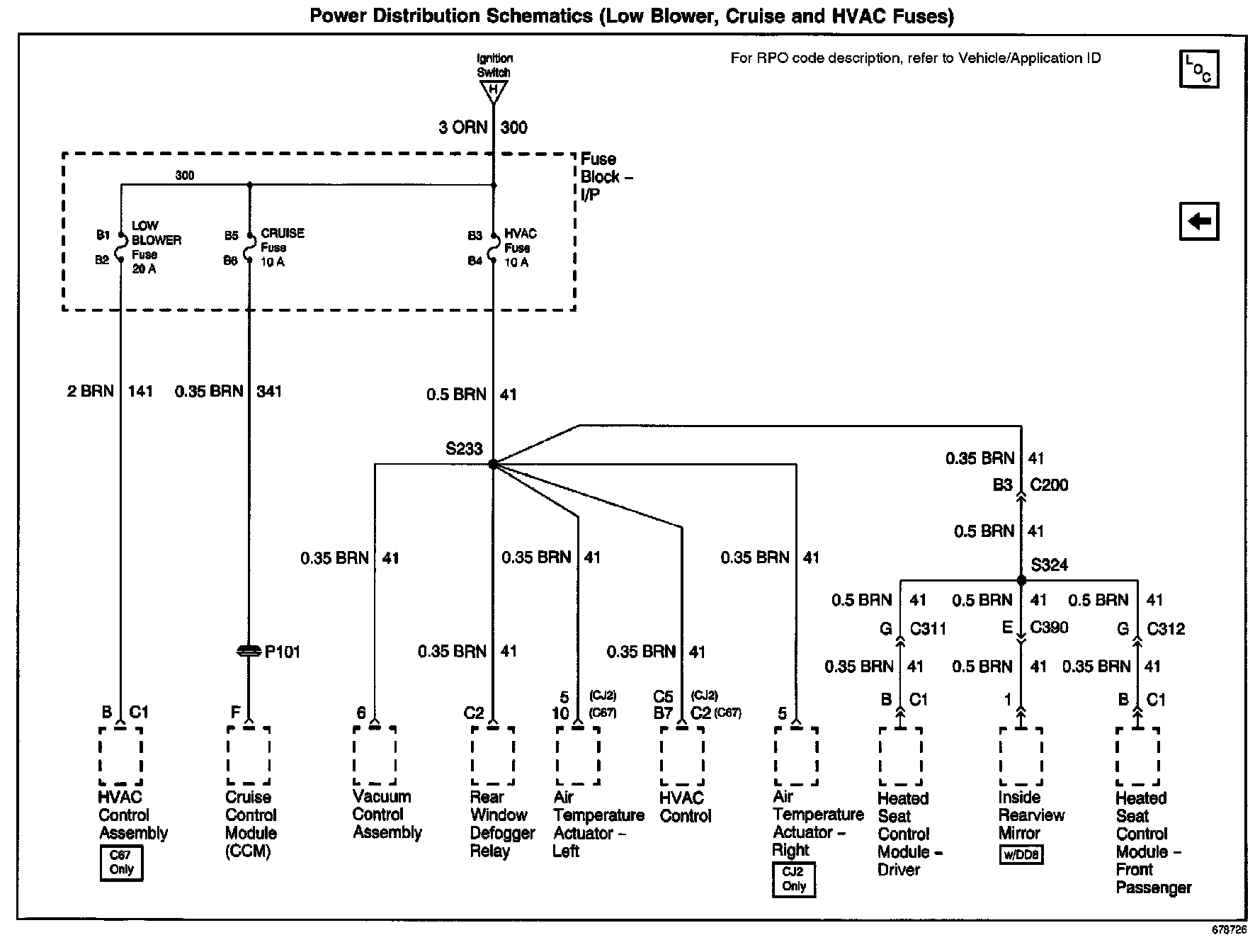

Power Distribution Schematics: Low Blower, Cruise And HVAC Fuses:

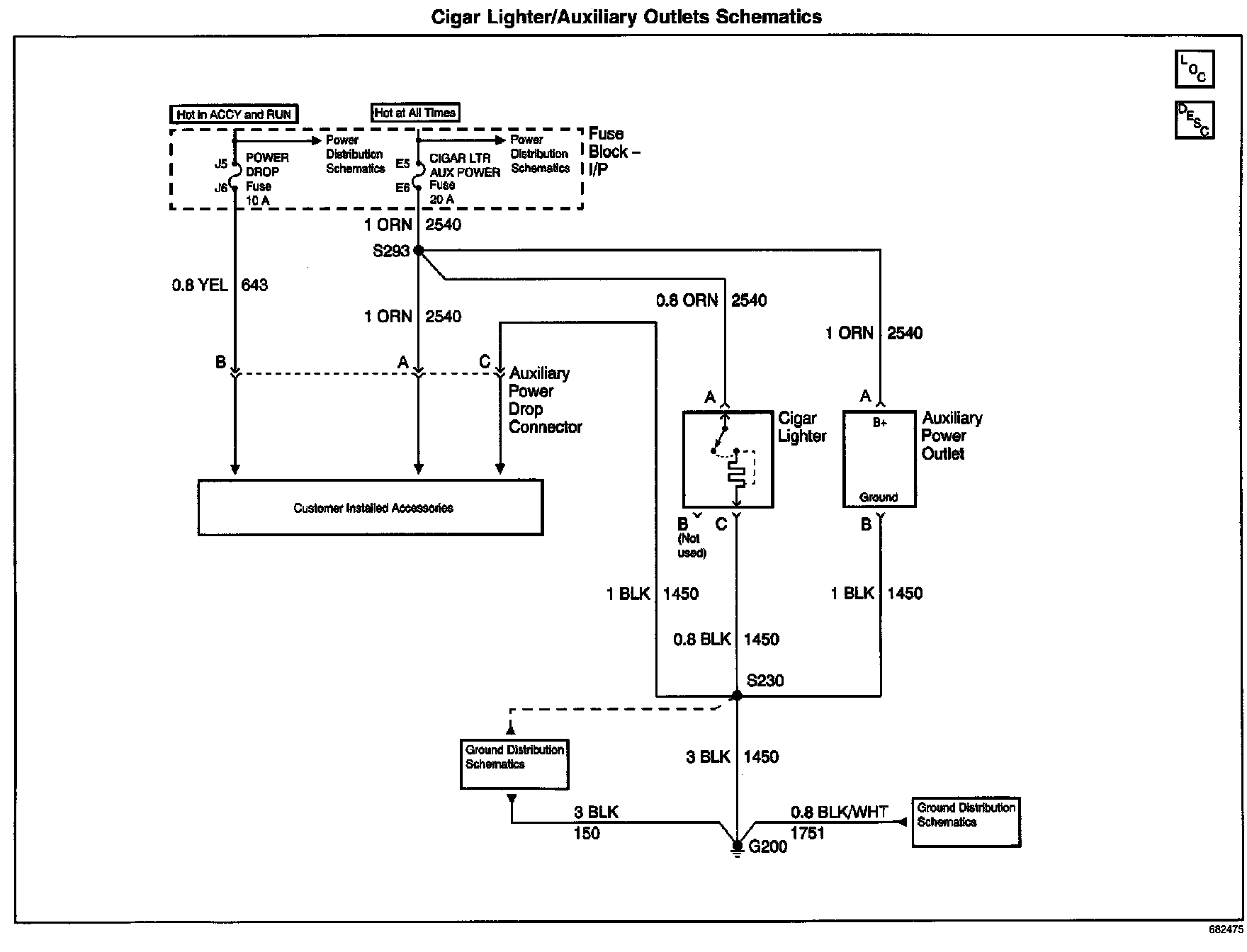

Cigar Lighter/Auxiliary Outlets Schematics:
