Throttle Body Heater Hose Replacement - Inlet
Throttle Body Heater Hose Replacement - InletRemoval Procedure
1. Remove the fuel injector sight shield.
2. Remove the throttle body air inlet duct.
3. Remove the accelerator controls cable bracket.
4. Partially drain the cooling system.

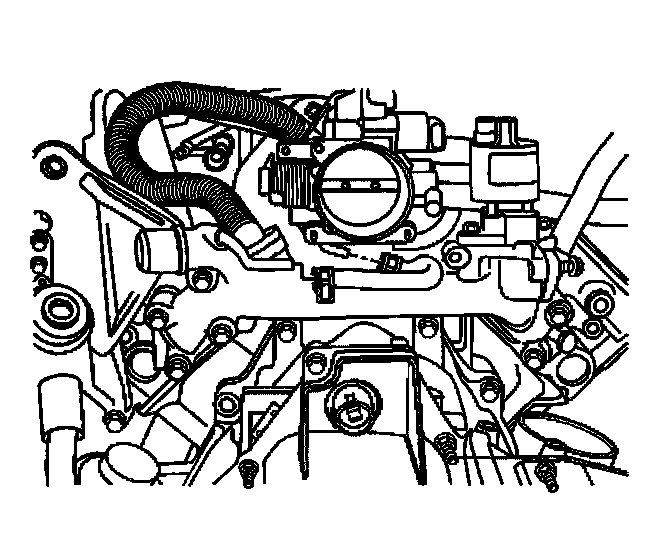

5. Note the position of the throttle body heater inlet hose insulator. Remove the throttle body heater inlet hose insulator.
6. Remove the throttle body heater inlet hose clamp from the water crossover.
7. Remove the throttle body heater inlet hose from the water crossover.
8. Remove the throttle body heater inlet hose clamp form the throttle body.
9. Remove the throttle body heater inlet hose from the throttle body.
Installation Procedure
1. Install the throttle body heater inlet hose to the throttle body.
2. Install the throttle body heater inlet hose clamp to the throttle body.
3. Install the throttle body water crossover.
4. Install the throttle body the water crossover.
5. Install the throttle body heater inlet hose insulator.
6. Fill the cooling system.
7. Install the accelerator controls cable bracket.
8. Install the throttle body air inlet duct.
9. Install the fuel injector sight shield.
10. Inspect for leaks.
