Surge Tank Hose Replacement - Outlet
Surge Tank Hose Replacement - OutletRemoval Procedure
Caution: Refer to Pressurized Cooling System Caution in Service Precautions.
Notice: Refer to Coolant Addition Notice in Service Precautions.
1. Partially drain the cooling system.

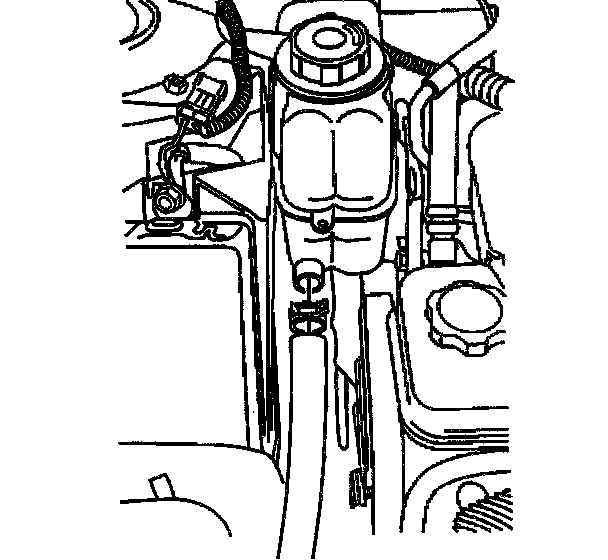

2. Remove the surge tank outlet hose clamp from the surge tank.
3. Remove the surge tank outlet hose from the surge tank.

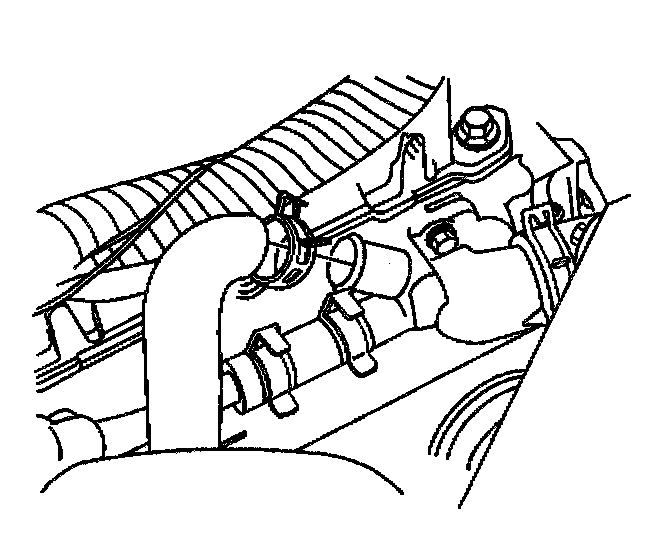

4. Remove the surge tank outlet hose clamp from the thermostat housing.
5. Remove the surge tank outlet hose from the thermostat housing.
Installation Procedure
1. Install the surge tank outlet hose to the thermostat housing.
2. Install the surge tank outlet hose clamp to the thermostat housing.

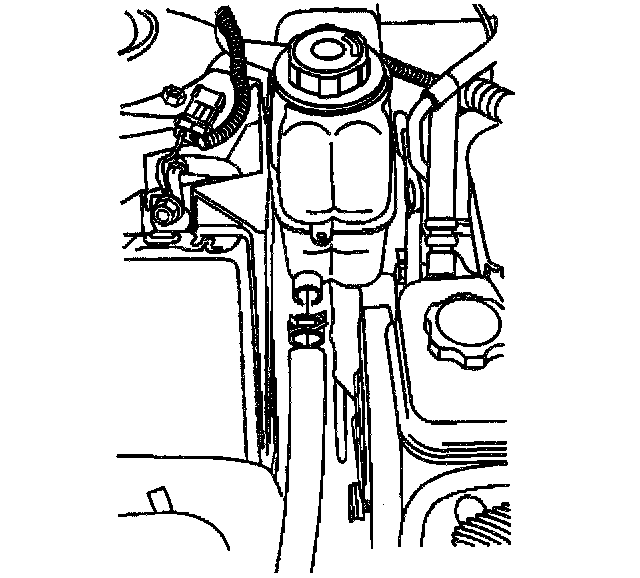

3. Install the surge tank outlet hose to the surge tank.
4. Install the surge tank outlet hose clamp to the surge tank.
5. Fill the cooling system.
6. Inspect for leaks.
