Surge Tank Hose Replacement - Inlet
Surge Tank Hose Replacement - InletRemoval Procedure
Caution: Refer to Pressurized Cooling System Caution in Service Precautions.
1. Remove the fuel injector sight shield.
2. Partially drain the cooling system.

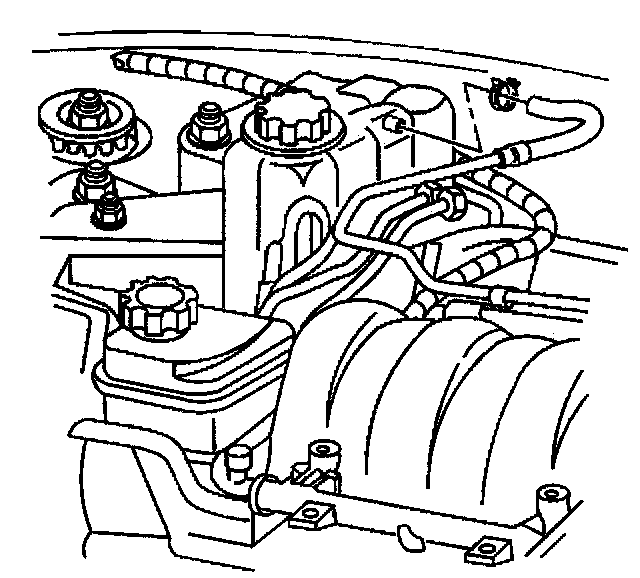

3. Remove the inlet surge tank hose clamp from the surge tank.
4. Remove the inlet surge tank hose from the surge tank.

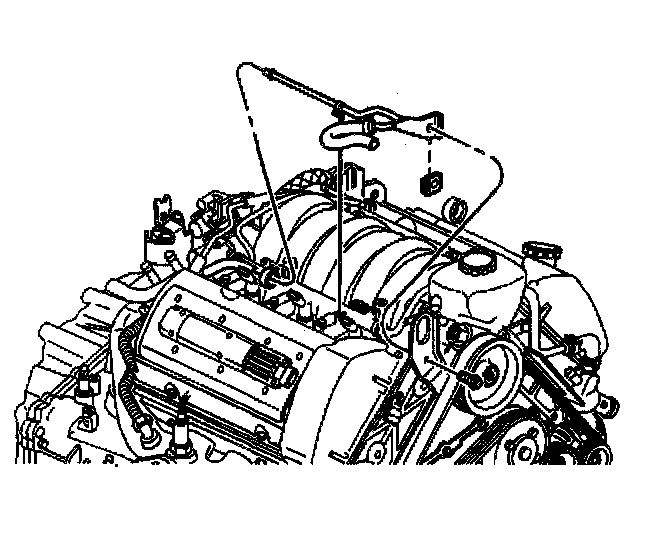

5. Remove the surge tank inlet hose bracket bolt from the lift hook bracket.
6. Remove the inlet surge tank hose clamp from the throttle body heater outlet hose.
7. Remove the inlet surge tank hose from the throttle body heater outlet hose.
Installation Procedure
1. Install the inlet surge tank hose to the throttle body heater outlet hose.
2. Install the inlet surge tank hose clamp to the throttle body heater outlet hose.
Notice: Refer to Fastener Notice in Service Precautions.
3. Install the surge tank inlet hose bracket bolt to the lift hook bracket.
Tighten the surge tank inlet hose bracket bolt to 10 Nm (89 inch lbs.).

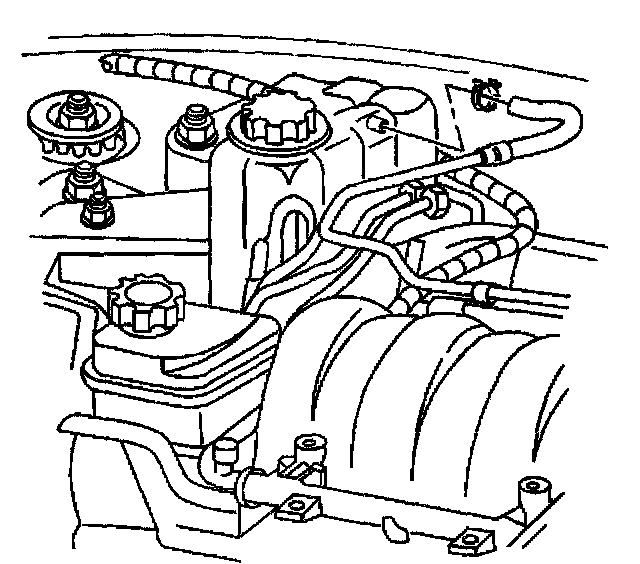

4. Install the inlet surge tank hose to the surge tank.
5. Install the inlet surge tank hose clamp to the surge tank.
6. Fill the cooling system.
7. Install the fuel injector sight shield cover.
8. Inspect for leaks.
