Air Injection Filter: Service and Repair

SECONDARY AIR INJECTION (AIR) PUMP INLET FILTER REPLACEMENT

REMOVAL PROCEDURE




1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Remove the fasteners from the front portion of the splash shield in the left front wheel well. Refer to Front Fender Liner Replacement in Body Front End.
3. Reposition the splash shield in order to gain access to the filter.
4. Remove the band clamp securing the filter to the hose.

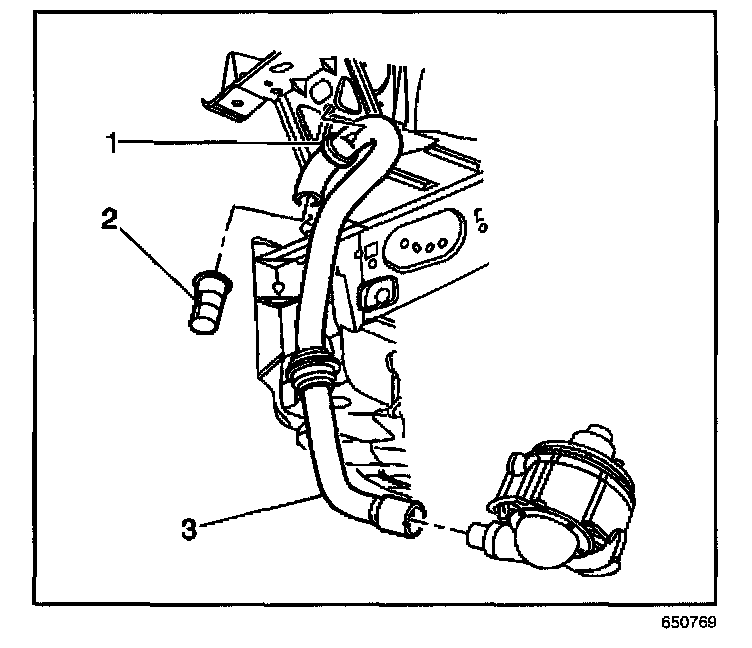

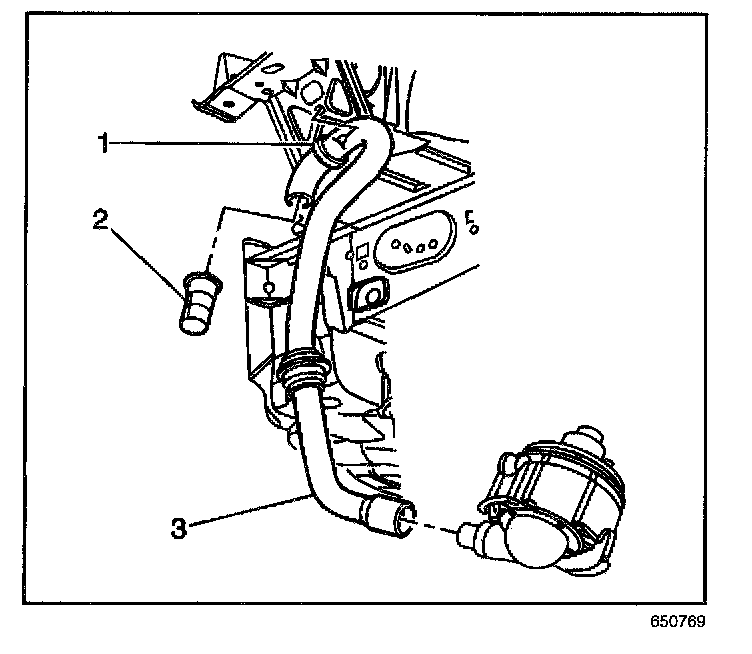

5. Remove the filter (2) from the hose.

INSTALLATION PROCEDURE




1. Install the filter (2) to the hose.
2. Install the band clamp.
3. Raise the wheel well splash shield into position.
4. Install the fasteners to the wheel well splash shield.
5. Lower the vehicle.
