Turn Signal Flasher: Service and Repair
HAZARD AND TURN SIGNAL FLASHER REPLACEMENTREMOVAL PROCEDURE
1. Remove the LH instrument panel (IP) insulator. Refer to Insulator Replacement - IP (Left) or Insulator Replacement - IP (Right) in Instrument Panel, Gauges and Warning Indicators.
2. Remove the steering column filler panel. Refer to Steering Column Filler Replacement in Instrument Panel, Gauges and Warning Indicators.

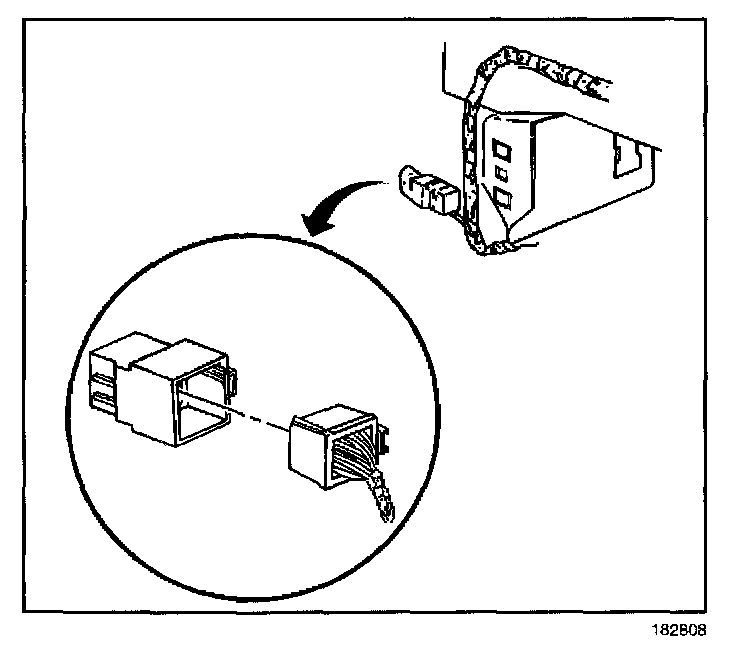

3. Grasp the hazard and turn signal flasher and slide the flasher to the right to release the flasher tabs from the slots on the BCM bracket.
4. Disconnect the electrical connector from the hazard and turn signal flasher.
INSTALLATION PROCEDURE
1. Connect the electrical connector to the hazard and turn signal flasher.
2. Position the flasher to the BCM bracket, then slide the flasher to the left to secure the flasher tabs into the retaining slots on the bracket.
3. Install the steering column filler panel. Refer to Steering Column Filler Replacement in Instrument Panel, Gauges and Warning Indicators.
4. Install the LH IP insulator. Refer to Insulator Replacement - IP (Left) or Insulator Replacement - IP (Right) in Instrument Panel, Gauges and Warning Indicators.
