Fog/Driving Lamp Bulb: Service and Repair

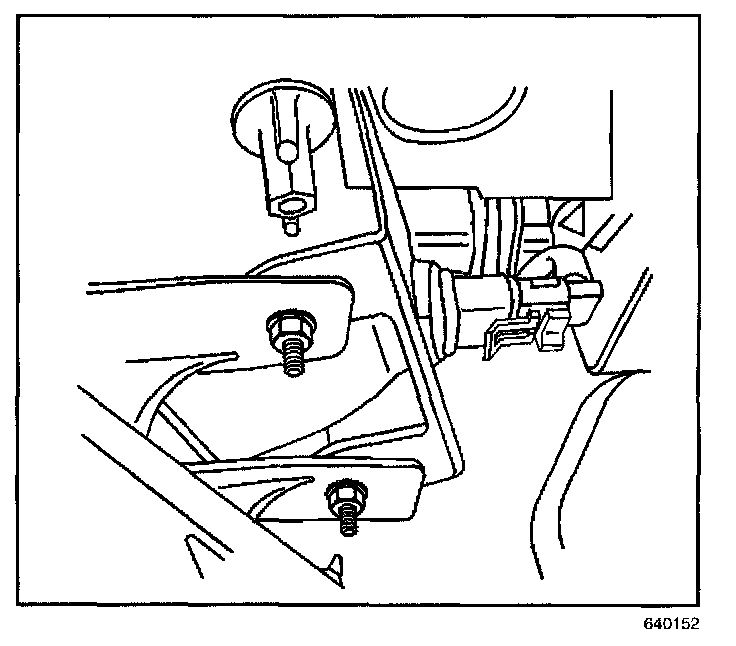

FOG LAMP BULB REPLACEMENT - FRONTREMOVAL PROCEDURE
1. Raise and suitably support the vehicle.
2. Disconnect the electrical connector from the front fog lamp bulb.
CAUTION: Refer to Halogen Bulb Caution in Service Precautions.
3. Rotate the front fog lamp bulb base counterclockwise to release.
4. Remove the fog lamp bulb from the front fog lamp.
INSTALLATION PROCEDURE
CAUTION: Refer to Halogen Bulb Caution in Service Precautions.
1. Install the fog lamp bulb to the front fog lamp.
2. Install the fog lamp bulb to the fog lamp rotating the bulb clockwise.
3. Connect the electrical connector to the front fog lamp bulb.
4. Lower the vehicle.
