Shelf Mounted

REMOVAL PROCEDURE




1. Open the rear compartment.

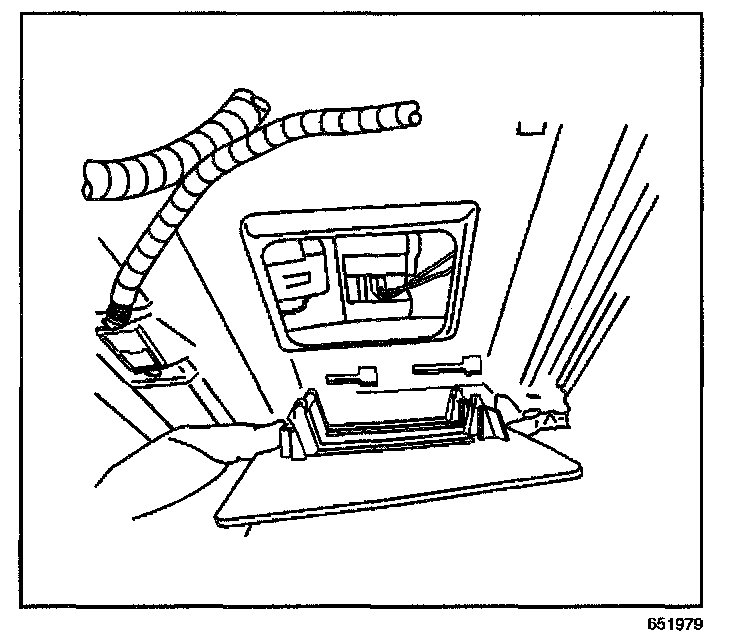

2. Depress the retaining tab on the rear of the high-mounted stoplamp vent and lower the vent.

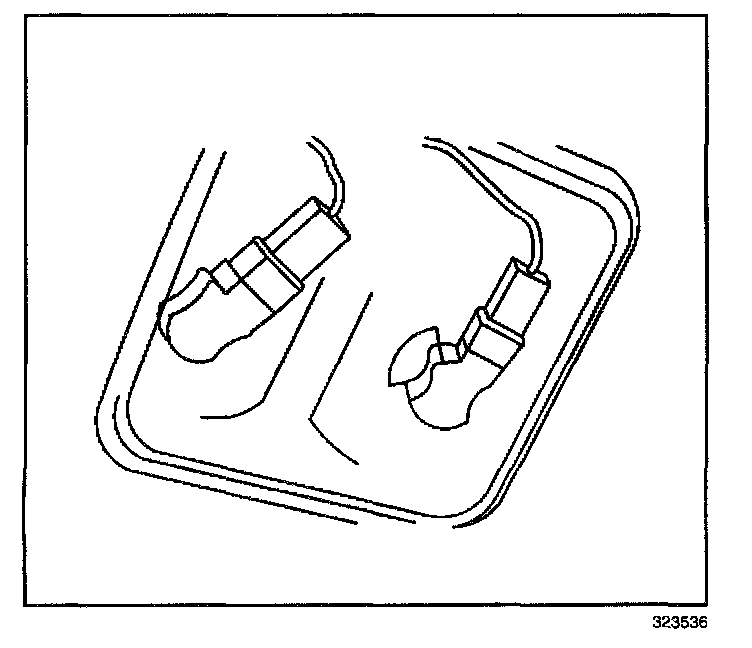

3. Rotate the high-mounted stoplamp socket(s) counterclockwise to release from the high-mounted stoplamp.
4. Remove the bulb(s) from the socket(s).

INSTALLATION PROCEDURE




1. Install the bulb(s) to the high-mounted stoplamp socket(s).
2. Install the lamp socket(s) to the high-mounted stoplamp, then rotate clockwise to secure.

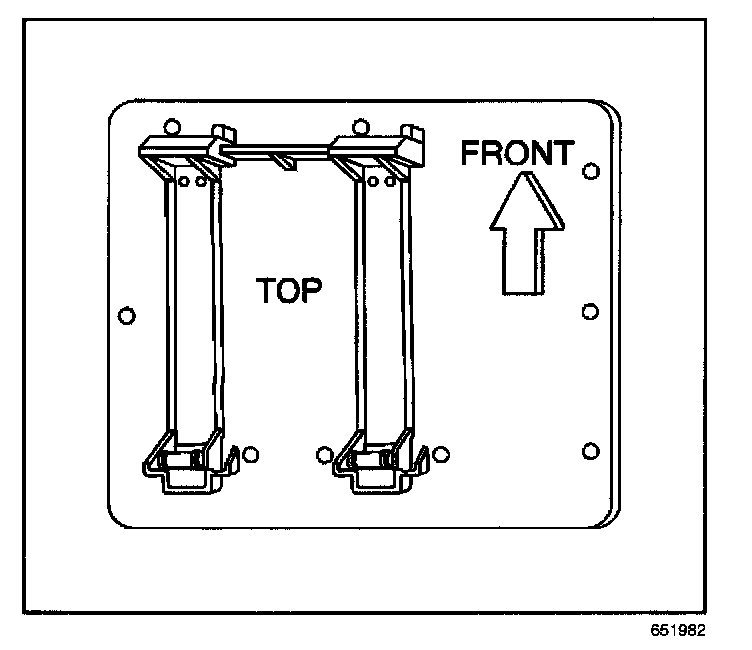

3. Position the high-mounted stoplamp vent to the rear window panel.




4. Install the high-mounted stoplamp vent to the underside of the rear window panel pressing into place until fully seated.
5. Close the rear compartment.
